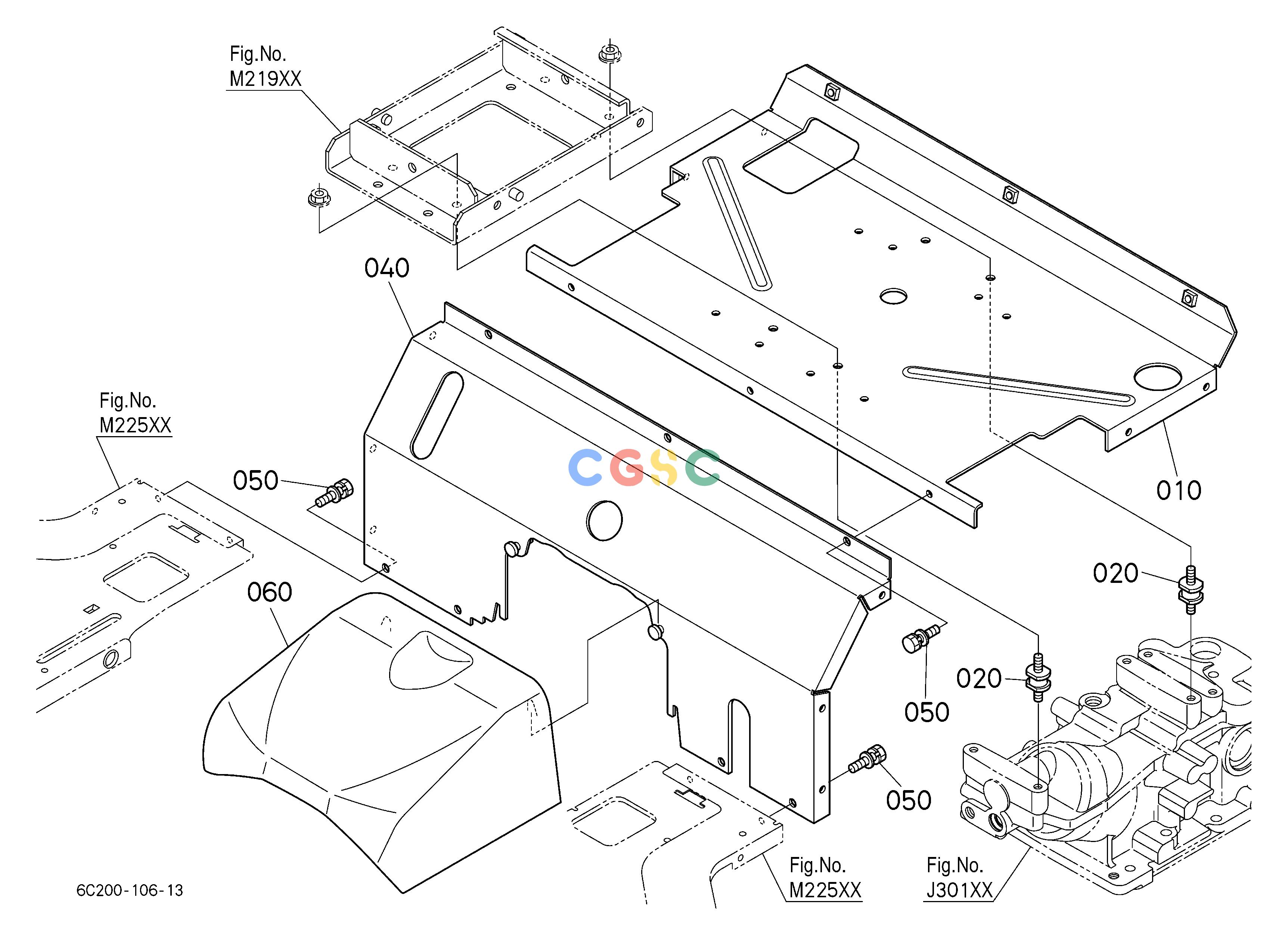

久保田零件查询M21502 FLOOR SHEET HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20051342
|
[1] |
COVER,SEAT UNDER
|
0.0000(lbs); 0.000
|
| 010. |
6C20051343
|
[1] |
COVER,SEAT UNDER
|
12.1000(lbs); 5.500
|
| 020. |
1491141410
|
[4] |
RUBBER,VIB.PROOF
|
0.0858(lbs); 0.039
|
| 040. |
6C20051373
|
[1] |
COVER,FRONT
|
0.0000(lbs); 0.000
|
| 040. |
6C20051374
|
[1] |
COVER,FRONT
|
4.7520(lbs); 2.160
|
| 050. |
0112550820
|
[7] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 060. |
6C20051352
|
[1] |
COVER,FRONT
|
0.5720(lbs); 0.260
|
| 060. |
6C20051353
|
[1] |
COVER,FRONT
|
0.5720(lbs); 0.260
|
