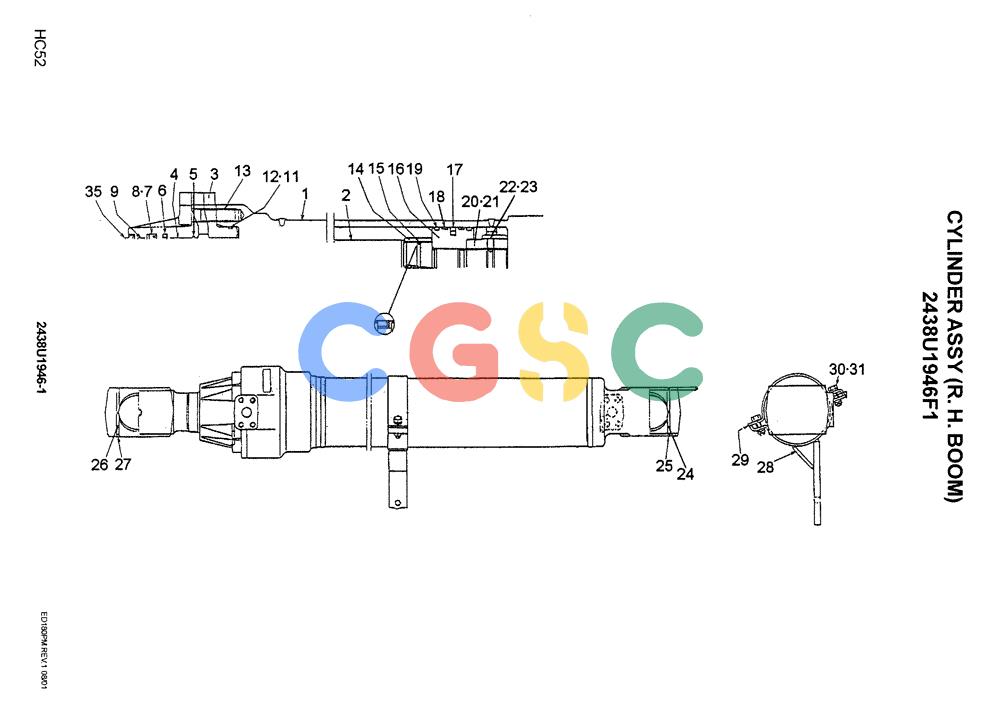

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-025) - CYLINDER ASSY (R. H. BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1946F1 | [1] | CYLINDER | KOB(RH) |
| 1. | 2438U1946S1 | [1] | TUBE | KOB |
| 2. | 2438U1946S2 | [1] | PISTON ROD | KOB |
| 3. | 2438U1105S3 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1105S4 | [1] | BUSHING | KOB Superseded by part number: 2438U1109S14 |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOB |
| 6. | 2438U1105S6 | [1] | BACK-UP RING | KOB |
| 7. | 2438U1105S7 | [1] | RING | KOB(RH BOOM) |
| 8. | 2438U1105S8 | [1] | RING | KOB |
| 9. | 2438U1105S9 | [1] | SLIDE | KOB |
| 11. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 12. | 2438U1105S12 | [1] | BACK-UP RING | KOB |
| 13. | 2438U1105S13 | [8] | SCREW | KOB |
| 14. | 2438U1946S14 | [1] | BEARING CUP | KOBBEARING, CUSHION |
| 15. | 2438U1946S15 | [1] | SEAL | KOBCUSHION |
| 16. | 2438U1946S16 | [1] | PISTON | KOB |
| 17. | 2438U1105S16 | [1] | RING ASSY. | KOB |
| 18. | 2438U1105S17 | [2] | RING | KOB |
| 19. | 2438U1105S18 | [2] | RING | KOB |
| 20. | 2438U1946S20 | [1] | SHIM | KOB |
| 21. | 2438U1946S21 | [1] | NUT | KOB |
| 22. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 23. | 2436U330S16 | [1] | BALL | KOB |
| 24. | 2438U1946S24 | [1] | BUSHING | KOB |
| 25. | 2438U1946S25 | [2] | RING | KOBWIPER |
| 26. | 2438U1102S24 | [1] | BUSHING | KOB |
| 27. | 2438U1102S31 | [2] | SEAL | KOB |
| 28. | 2438U1946S28 | [1] | BAND | KOBBRACKET |
| 29. | 2438U1946S29 | [1] | BAND | KOBBRACKET |
| 30. | 2438U1102S29 | [2] | SCREW | KOB Superseded by part number: ZS18C10035 |
| 31. | 2438U330S30 | [2] | WASHER | |
| 35. | 2438U1105S35 | [1] | RING | KOBWIPER |
| . . | 2438U1105R400 | [1] | REPAIR KIT | KOBHEAD CONSISTS OF REF 6 - 12 & 35 Superseded by part number: 2438U1105R400P |
| . . | 2438U1946R200 | [1] | REPAIR KIT | KOBPISTON, CONSISTS OF REF 15 & 17 - 19 |
| . . | 2438U1946R400 | [1] | REPAIR KIT | KOBCOMPLETE, CONSISTS OF REF 6 - 12, 15, 17 - 19 & 35 |
