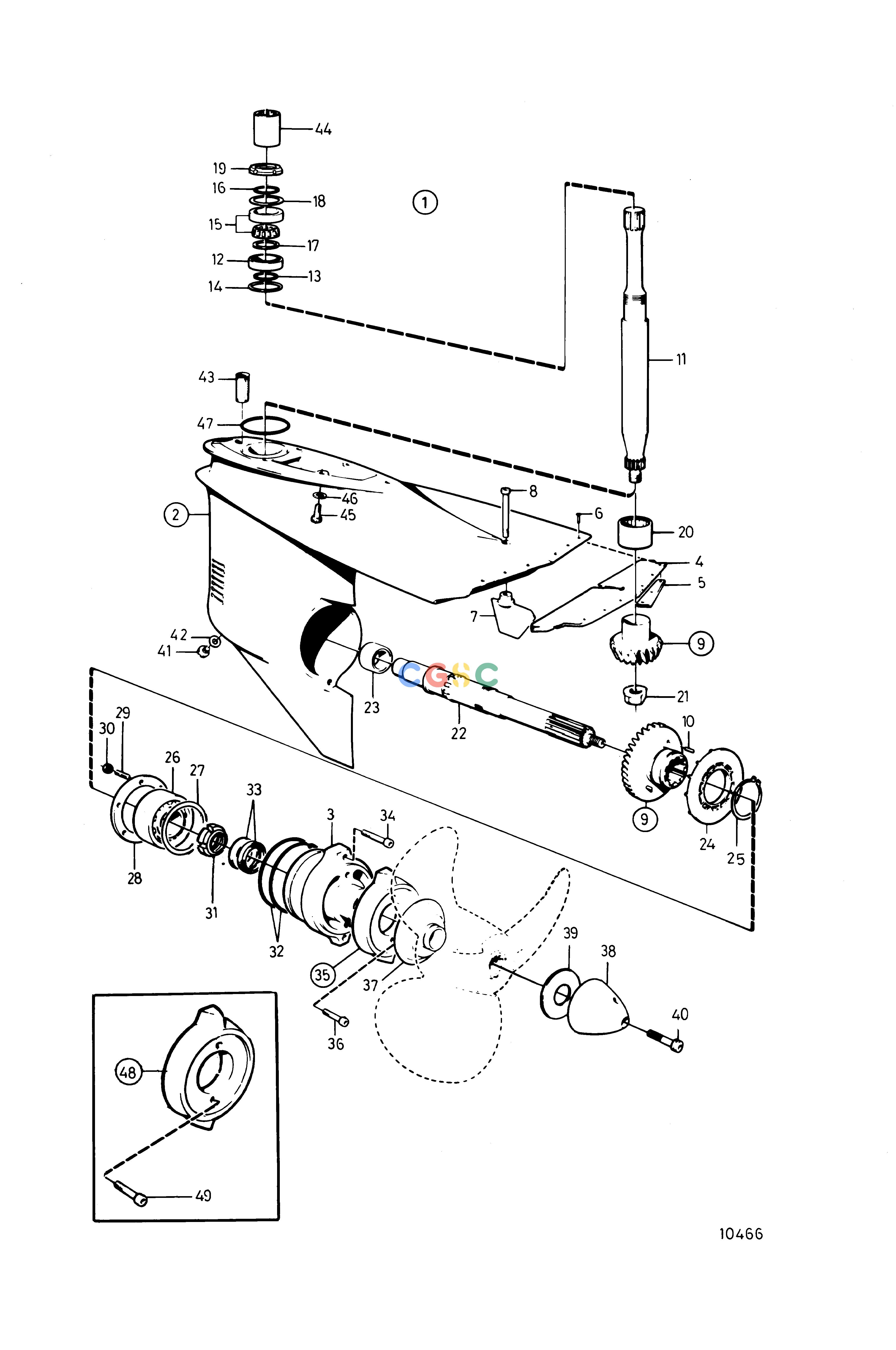

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsLower Gear UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854646
|
[1] |
Lower gear
|
Also available as an exchange part., Ratio 1,89:1
|
| 1. |
3803155
|
[1] |
Lower gear, exch
|
Also available as an exchange part., Ratio 1,89:1
|
| 2. |
854042
|
[1] |
Gear housing
|
|
| 3. |
854044
|
[1] |
Bearing housing
|
|
| 4. |
852644
|
[1] |
Non-return valve
|
|
| 5. |
852643
|
[2] |
Attaching plate
|
|
| 6. |
948338
|
[6] |
Blind rivet
|
|
| 7. |
854040
|
[1] |
Fin
|
|
| 8. |
959440
|
[1] |
Hex. socket screw
|
|
| 9. |
872052
|
[1] |
Gear set
|
Ratio 1,89:1
|
| 10. |
948407
|
[2] |
Spring pin
|
|
| 11. |
854889
|
[1] |
Countershaft
|
|
| 12. |
183374
|
[1] |
Ball bearing
|
|
| 13. |
941832
|
[1] |
Shim
|
TH=0,05mm
|
| 13. |
941833
|
[1] |
Shim
|
TH=0.20mm
|
| 14. |
832191
|
[1] |
Gasket
|
|
| 15. |
11072
|
[1] |
Roller bearing
|
|
| 16. |
897387
|
[1] |
Clamping ring
|
|
| 17. |
944970
|
[1] |
Shim
|
TH=1,60mm
|
| 18. |
944522
|
[1] |
Shim
|
TH=0,05mm
|
| 18. |
42981
|
[1] |
Shim
|
TH=0,10mm
|
| 18. |
42980
|
[1] |
Shim
|
TH=0.35mm
|
| 18. |
968057
|
[1] |
Shim
|
TH=0.20mm
|
| 19. |
969071
|
[1] |
Round nut
|
|
| 20. |
183497
|
[1] |
Needle bearing
|
|
| 21. |
854300
|
[1] |
Nut
|
|
| 22. |
854657
|
[1] |
Propeller shaft
|
|
| 23. |
183390
|
[1] |
Needle roller bushin
|
|
| 24. |
832548
|
[1] |
Pump rotor
|
|
| 25. |
914474
|
[1] |
Snap ring
|
|
| 26. |
854541
|
[1] |
Ball bearing
|
|
| 27. |
944561
|
[1] |
Shim
|
TH=0,05mm
|
| 27. |
944562
|
[1] |
Shim
|
TH=0,10mm
|
| 27. |
851767
|
[1] |
Shim
|
TH=0.20mm
|
| 28. |
832725
|
[1] |
Thrust ring
|
|
| 29. |
953449
|
[6] |
Stud
|
|
| 30. |
955825
|
[6] |
Hexagon nut
|
|
| 31. |
969073
|
[1] |
Round nut
|
|
| 32. |
925261
|
[2] |
O-ring
|
|
| 33. |
897426
|
[2] |
Sealing ring
|
|
| 34. |
941812
|
[2] |
Hex. socket screw
|
|
| 35. |
875815
|
[1] |
Zinc ring kit
|
|
| 36. |
941809
|
[2] |
Hex. socket screw
|
|
| 37. |
872082
|
[1] |
Line cutter
|
|
| 38. |
854045
|
[1] |
Spinner
|
|
| 39. |
850888
|
[1] |
Plastic washer
|
|
| 40. |
850889
|
[1] |
Screw
|
|
| 41. |
839354
|
[1] |
Plug
|
|
| 42. |
955974
|
[1] |
O-ring
|
|
| 43. |
814482
|
[1] |
Oil strainer
|
|
| 44. |
854553
|
[1] |
Splined sleeve
|
Included in complete drive unit
|
| 45. |
941810
|
[4] |
Hex. socket screw
|
Included in complete drive unit
|
| 46. |
853095
|
[4] |
Washer
|
Included in complete drive unit
|
| 47. |
925256
|
[1] |
O-ring
|
Included in complete drive unit
|
| 48. |
876137
|
[1] |
Anode kit
|
To be used in fresh-water.
|
| 49. |
941809
|
[2] |
Hex. socket screw
|
|
