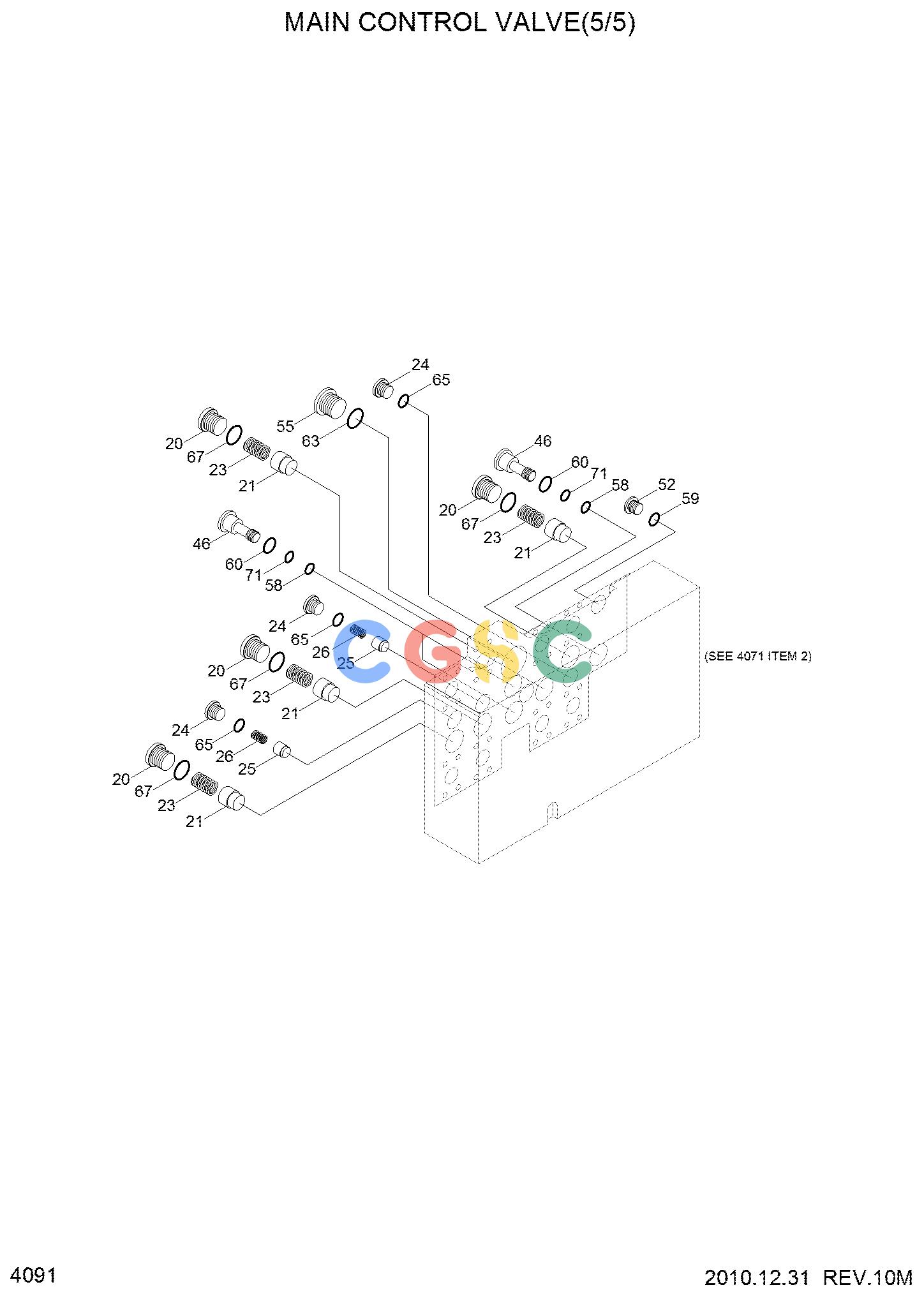

现代零件查询R305LC-7 MAIN CONTROL VALVE(5/5, TYPE 1, #0120-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 20. |
XKBF-00383
|
[4] |
PLUG
|
|
| 21. |
XKBF-00384
|
[4] |
NEGACON POPPET
|
|
| 23. |
XKBF-00386
|
[4] |
SPRING 1
|
|
| 24. |
XKBF-00387
|
[3] |
PLUG
|
|
| 25. |
XKBF-00388
|
[2] |
POPPET 2
|
|
| 26. |
XKBF-00389
|
[2] |
SPRING 2
|
|
| 46. |
XKBF-00400
|
[3] |
PLUG
|
|
| 52. |
XKBF-00058
|
[1] |
PLUG
|
|
| 55. |
XKBF-00406
|
[1] |
PLUG
|
|
| 58. |
XKBF-00409
|
[3] |
O-RING
|
|
| 59. |
XKBF-00410
|
[1] |
O-RING
|
|
| 60. |
XKBF-00411
|
[3] |
O-RING
|
|
| 63. |
XKBF-00413
|
[1] |
O-RING
|
|
| 65. |
XKBF-00084
|
[3] |
O-RING
|
|
| 67. |
XKBF-00415
|
[4] |
O-RING
|
|
| 71. |
XKBF-00089
|
[3] |
RING-BACK UP
|
|
| N100. |
XKBF-00629
|
[1] |
PLUG-OPTION
|
|
| 101. |
XKBF-00630
|
[1] |
PLUG
|
|
