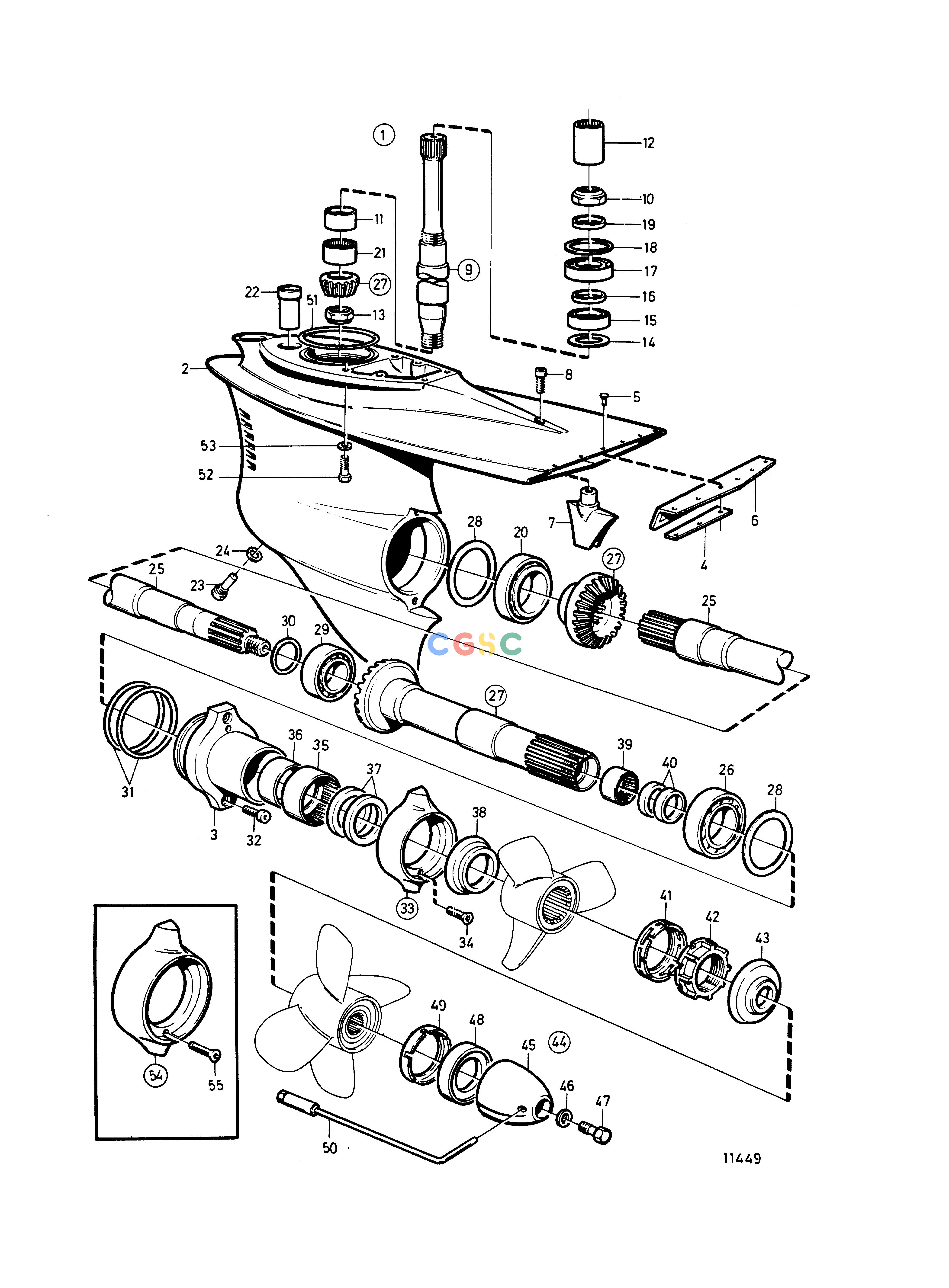

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsLower Gear Unit Ratio 2, 30:1: 854641EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854641
|
[1] |
Lower gear
|
Also available as an exchange part., Ratio 2,30:1
|
| 2. |
854051
|
[1] |
Housing
|
|
| 3. |
854053
|
[1] |
Bearing housing
|
|
| 4. |
852643
|
[2] |
Attaching plate
|
|
| 5. |
948338
|
[6] |
Blind rivet
|
|
| 6. |
852644
|
[1] |
Non-return valve
|
|
| 7. |
854054
|
[1] |
Fin
|
|
| 8. |
941817
|
[1] |
Hex. socket screw
|
|
| 9. |
854611
|
[1] |
Countershaft
|
|
| 10. |
969071
|
[1] |
Round nut
|
|
| 11. |
184682
|
[1] |
Inner ring
|
|
| 12. |
854553
|
[1] |
Splined sleeve
|
|
| 13. |
852212
|
[1] |
Nut
|
|
| 14. |
941832
|
[1] |
Shim
|
TH=0,05mm
|
| 14. |
941833
|
[1] |
Shim
|
TH=0.20mm
|
| 15. |
183374
|
[1] |
Ball bearing
|
|
| 16. |
944970
|
[1] |
Shim
|
|
| 17. |
11072
|
[1] |
Roller bearing
|
|
| 18. |
944522
|
[1] |
Shim
|
TH=0,05mm
|
| 18. |
42981
|
[1] |
Shim
|
TH=0,10mm
|
| 18. |
968057
|
[1] |
Shim
|
TH=0.20mm
|
| 18. |
42980
|
[1] |
Shim
|
TH=0.35mm
|
| 19. |
897387
|
[1] |
Clamping ring
|
|
| 20. |
11044
|
[1] |
Roller bearing
|
|
| 21. |
184654
|
[1] |
Needle roller bushin
|
|
| 22. |
814482
|
[1] |
Oil strainer
|
|
| 23. |
852904
|
[1] |
Magnetic plug
|
|
| 24. |
955974
|
[1] |
O-ring
|
|
| 25. |
852181
|
[1] |
Propeller shaft
|
Replaced by propeller shaft 872533 + propeller cone kit 872549.
|
| 26. |
184765
|
[1] |
Roller bearing
|
|
| 27. |
852380
|
[1] |
Drive gear set
|
Ratio 2,30:1
|
| 28. |
967352
|
[1] |
Shim
|
TH=0,05mm
|
| 28. |
941823
|
[1] |
Shim
|
TH=0,10mm
|
| 28. |
967351
|
[1] |
Shim
|
TH=0.15mm
|
| 28. |
941824
|
[1] |
Shim
|
TH=0.20mm
|
| 28. |
941825
|
[1] |
Shim
|
TH=0.40mm
|
| 29. |
184691
|
[1] |
Roller bearing
|
|
| 30. |
191834
|
[1] |
Shim
|
TH=0,10mm
|
| 30. |
191835
|
[1] |
Shim
|
TH=0.15mm
|
| 30. |
191837
|
[1] |
Shim
|
TH=0.25mm
|
| 31. |
925258
|
[2] |
O-ring
|
|
| 32. |
941812
|
[2] |
Hex. socket screw
|
|
| 33. |
875821
|
[1] |
Zinc ring kit
|
|
| 34. |
966808
|
[2] |
Screw
|
|
| 35. |
183859
|
[1] |
Needle roller bushin
|
|
| 36. |
184683
|
[1] |
Inner ring
|
|
| 37. |
851407
|
[2] |
Sealing ring
|
|
| 38. |
853440
|
[1] |
Line cutter
|
Front
|
| 39. |
183272
|
[1] |
Needle roller bearin
|
|
| 40. |
853871
|
[1] |
Sealing ring
|
|
| 41. |
853869
|
[1] |
Lock washer
|
For 852196
|
| 42. |
852196
|
[1] |
Propeller nut
|
|
| 43. |
853441
|
[1] |
Line cutter
|
Rear
|
| 44. |
872614
|
[1] |
Spinner
|
(854666)
|
| 45. |
|
|
|
|
| 46. |
941670
|
[1] |
Washer
|
|
| 47. |
872545
|
[1] |
Lock screw
|
M8
|
| 48. |
853676
|
[1] |
Spacer ring
|
For diesel
|
| 49. |
854294
|
[1] |
Plastic washer
|
|
| 50. |
854669
|
[1] |
Tool kit
|
See group 9
|
| 51. |
925256
|
[1] |
O-ring
|
Included in complete Duoprop drive unit.
|
| 52. |
941810
|
[4] |
Hex. socket screw
|
Included in complete Duoprop drive unit.
|
| 53. |
853095
|
[4] |
Washer
|
Included in complete Duoprop drive unit.
|
| 54. |
876138
|
[1] |
Anode kit
|
To be used in fresh-water.
|
| 55. |
966808
|
[2] |
Screw
|
|
