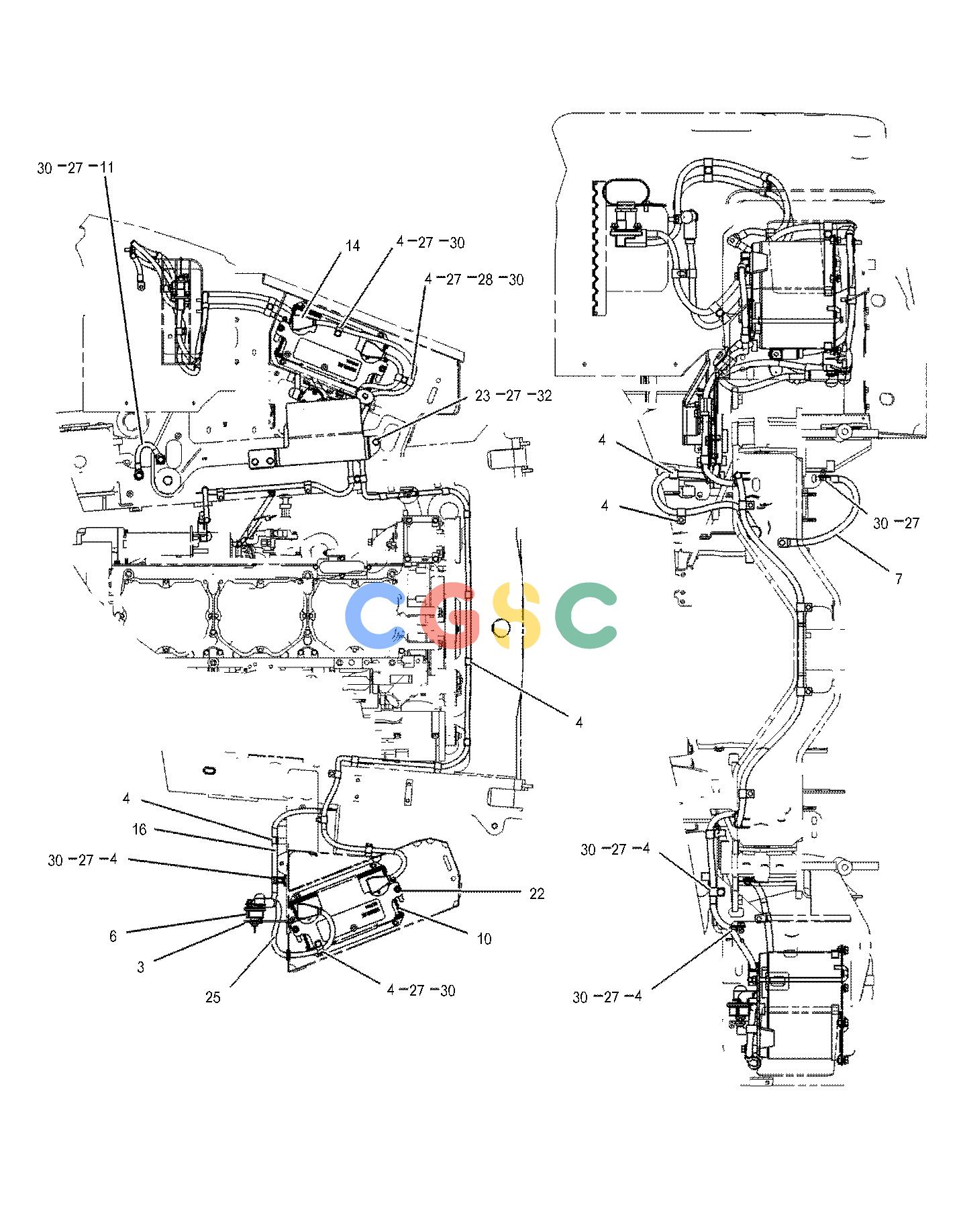

| 1. | 2G-8767 | [2] | WASHER(10.5X60X3-MM THK) | |
| 2. | 2U-2437 | [4] | NUT | |
| 3. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 4. | 6D-3479 | [42] | CLIP(LOOP) | |
| 5. | 6G-2256 | [2] | CLAMP | |
| 6. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 7. | 7U-5417 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(36-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 8. | 8S-2634 | [1] | COVER AS | |
| | 2P-2975 | [2] | SEAL-O-RING | |
| 9. | 8S-4211 | [2] | PLATE | |
| 10. | 9X-3404 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| 11. | 119-1364 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(20-CM) | |
| | 1S-7252 | [2] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 12. | 124-5814Y | [1] | BLOCK GP-JUNCTION(BATTERY) | |
| 13. | 140-8860 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(28-CM) | |
| | 8N-0869 | [2] | COVER-TERMINAL(RED) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 14. | 173-1705 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(348-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 15. | 173-1706 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(148-CM) | |
| | 037-5197 | [2] | BOOT | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 16. | 173-1707 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(58-CM) | |
| | 1S-7252 | [2] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 17. | 173-1708 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(157-CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 1S-7251 | [2] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| 18. | 173-1709 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(72-CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 19. | 173-2359 | [1] | RECEPTACLE GP-AUXILIARY START | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 4N-6579 | [1] | RECEPTACLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(272-CM) | |
| | 5P-0761E | | CABLE(00-GA, RED)(269-CM) | |
| | 1S-7251 | [2] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 6V-2722 | [1] | TUBE-HEAT SHRINK(25.4-MM DIA) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 20. | 176-3393 | [4] | STUD | |
| 21. | 184-4570 | [4] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 22. | 185-6088 | [2] | PLATE AS | |
| 23. | 192-5873 | [1] | PLATE | |
| 24. | 193-6951 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(68-CM) | |
| | 1S-7252 | [2] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 25. | 193-6952 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(63-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 037-5197 | [1] | BOOT | |
| | 061-8844 | [1] | GROMMET | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 26. | 4L-6454 | [4] | BOLT(3/8-16X1-IN) | |
| 27. | 8T-4121 | [42] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4133M | [5] | NUT(M10X1.5-THD) | |
| 29. | 8T-4136M | [11] | BOLT(M10X1.5X25-MM) | |
| 30. | 8T-4137M | [21] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 32. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 33. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
