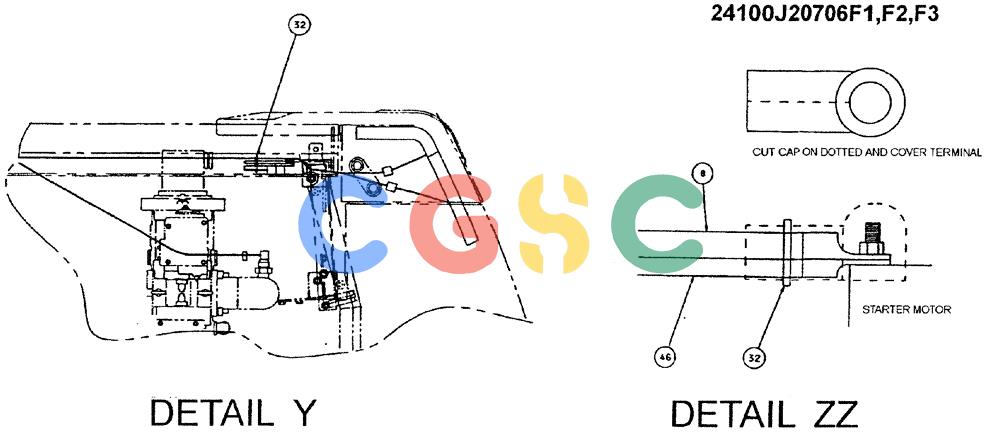

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (06-001[03]) - WIRING ASSEMBLY, ELECTRIC Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
114 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J20706F1 | [1] | WIRING ASSY, ELEC (F1 ONLY), Serial Range: -4/9/99 | |
| . . | 24100J20706F2 | [1] | WIRING ASSY, ELEC (F2 ONLY), Serial Range: 4/9/99-10/29/99 | |
| . . | 24100J20706F3 | [1] | WIRING ASSY, ELEC (F3 ONLY), Start Serial: 10/29/99 | |
| 1. | 2479U2108 | [1] | WIRE HARNESS | KOB(LEFT SIDE) (F1 ONLY) |
| 2. | 2479R1470F1 | [1] | RELAY,24V, 100 Amp | KOBBATTERY |
| 3. | 2479U1009F1 | [1] | HORN,24V, 390HZ | KOBHigh (415Hz) (E-4) Superseded by part number: CM53S00002F1 |
| 4. | 2479U1009F2 | [1] | HORN,24V, 350HZ | KOBLow (390Hz) (E-3) Superseded by part number: CM53S00002F2 |
| 5. | YM13EU1001D1 | [1] | NEG BATTERY CABLE | KOB(L=700MM) |
| 6. | YM13EU1002D1 | [1] | NEG BATTERY CABLE | KOB(L=320MM) |
| 7. | YM13EU1003D1 | [1] | ELECTRIC CABLE | KOB(L=370MM) |
| 8. | YN13EU1004D1 | [1] | ELECTRIC CABLE | KOB |
| 9. | YN13EU1005D1 | [1] | CABLE | KOB |
| 10. | 2479U2110 | [1] | WIRE HARNESS | KOB(DOZER PILOT VALVE) (F1 ONLY) |
| 11. | 2479U2127 | [1] | WIRE HARNESS | KOBHARNESS (RIGHT SIDE) (F3 ONLY) |
| 12. | 2479U2124 | [1] | WIRE HARNESS | KOB(DOZER REWORK) (F3 ONLY) |
| 13. | 2479Z2427 | [1] | HARNESS | KOB(GROUND) |
| 14. | 2479Z2296 | [1] | WIRE HARNESS | KOB(BOOM WORK LIGHT) |
| 15. | ZN18C04003 | [2] | NUT | KOBM04x0.7mm |
| 16. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 17. | ZN18C06005 | [3] | NUT | KOBM06x1.0mm |
| 18. | ZW26X06000 | [3] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 19. | ZW16K06000 | [5] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 20. | ZS18C08025 | [3] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 21. | ZS18C08030 | [20] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 22. | ZN18C08007 | [5] | NUT | KOBM08x1.25mm |
| 23. | ZW26X08000 | [10] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | ZW16K08000 | [8] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 25. | ZS18C10014 | [1] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 26. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 27. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 29. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 30. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 31. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 32. | 2432Z290 | [8] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 33. | 2432R233D2 | [2] | CLIP | KOB37x12x40mm |
| 34. | 2432R233D3 | [1] | CLIP | KOB50x16x60mm |
| 36. | 2420Z699 | [6] | GROMMET | KOB |
| 37. | 2420Z1188 | [2] | GROMMET | KOB |
| 38. | ZS18C06030 | [2] | SCREW,Hex, M6 x 30mm | KOBM06x1.0x30mm |
| 39. | YM72EU1001P1 | [1] | COVER | KOB |
| 40. | 2420T6788 | [2] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 41. | YN24SU1002P1 | [1] | RELAY | KOBRELAY, STARTER (F1 ONLY) Superseded by part number: 3050692 |
| 42. | 24100R499 | [1] | HYD CONNECTOR | KOBWire |
| 43. | 2479U2123 | [1] | WIRE HARNESS | KOB(BELOW FLOOR) (F3 ONLY) |
| 45. | 2479U1979 | [1] | HARNESS | KOB(SIDE-L) |
| 46. | LQ13EU1002D1 | [1] | CABLE | KOB(HEATER RELAY) |
| 47. | LQ13EU1003D1 | [1] | CABLE | KOB(HEATER RELAY) |
| 49. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBM08x1.25x45mm |
| 50. | 2479U2003 | [1] | HARNESS | KOB(BELOW FLOOR) (F1 ONLY) |
| 51. | 2479R1470F4 | [1] | RELAY | KOB(HEATER) |
| 52. | 2479U2062 | [1] | WIRE HARNESS | KOB(SIDE-R) (F1 & F2 ONLY) |
| 55. | 2479U2147 | [1] | HARNESS (RESERVE POWER) (F1 ONLY) | |
