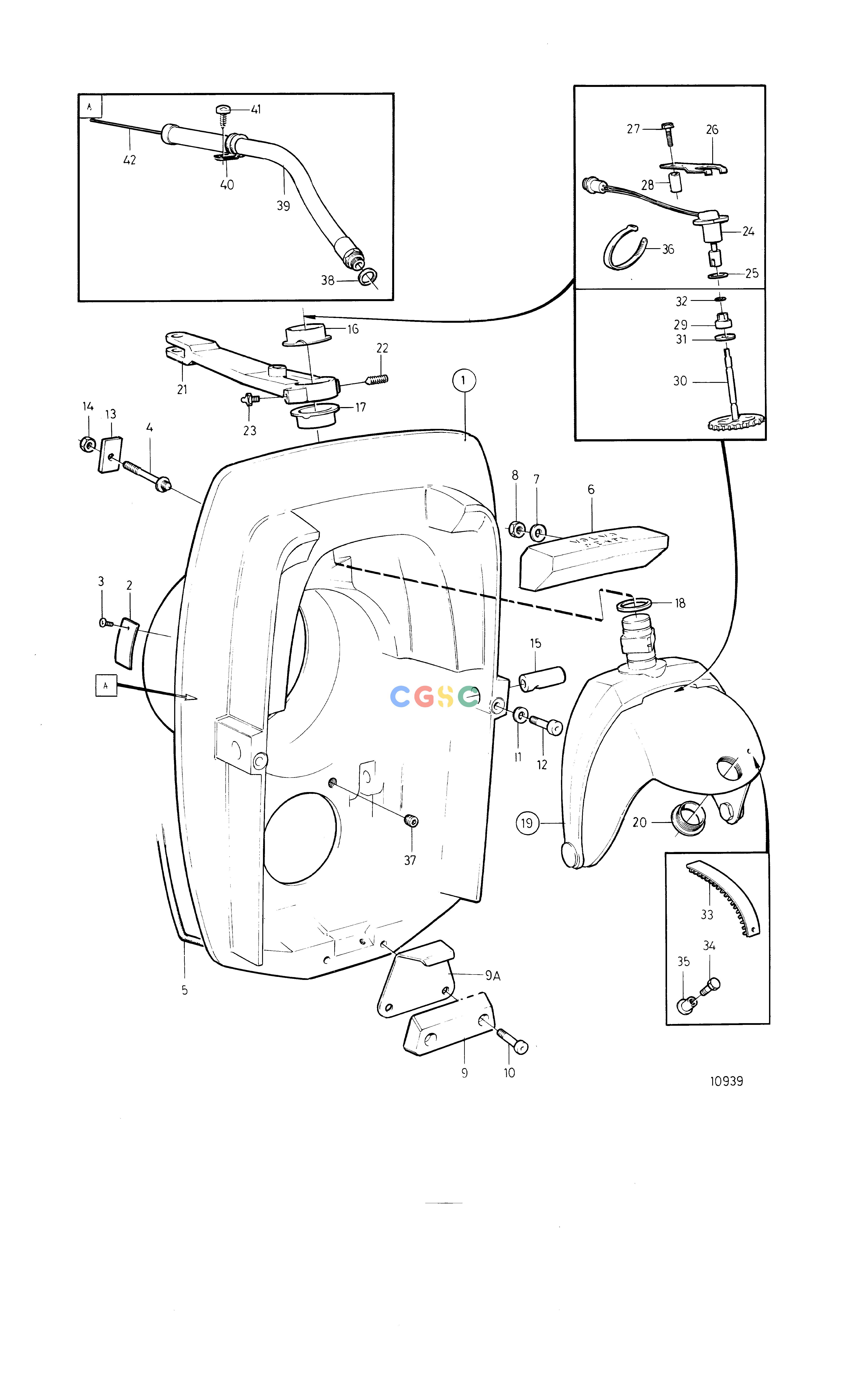

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsShield with Mounting ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876510
|
[1] |
Shield
|
|
| 2. |
853706
|
[1] |
Type plate
|
|
| 3. |
804269
|
[2] |
Drive screw
|
|
| 4. |
853595
|
[6] |
Stud
|
|
| 5. |
852868
|
[1] |
Sealing strip
|
L=1750mm
|
| 6. |
854133
|
[1] |
Rubber cushion
|
|
| 7. |
960148
|
[2] |
Washer
|
|
| 8. |
971089
|
[2] |
Lock nut
|
|
| 9. |
852835
|
[1] |
Zinc electrode
|
|
| 9A. |
872562
|
[1] |
Support plate
|
|
| 10. |
946541
|
[2] |
Hex. socket screw
|
|
| 11. |
941670
|
[2] |
Washer
|
|
| 12. |
963699
|
[2] |
Hex. socket screw
|
|
| 13. |
852866
|
[6] |
Washer
|
|
| 14. |
963108
|
[6] |
Lock nut
|
|
| 15. |
872493
|
[2] |
Spindle
|
(872095)
|
| 16. |
854705
|
[1] |
Bushing
|
|
| 17. |
854704
|
[1] |
Bushing
|
|
| 18. |
977313
|
[1] |
Sealing ring
|
|
| 19. |
854707
|
[1] |
Steering yoke
|
|
| 20. |
853048
|
[1] |
Bushing
|
|
| 21. |
872102
|
[1] |
Steering arm
|
(854706)
|
| 22. |
947904
|
[1] |
Set screw
|
|
| 23. |
914169
|
[1] |
Lubricating nipple
|
|
| 24. |
828726
|
[1] |
Sensor
|
|
| 25. |
955991
|
[1] |
O-ring
|
|
| 26. |
853039
|
[1] |
Bracket
|
|
| 27. |
955298
|
[1] |
Hexagon screw
|
|
| 28. |
872355
|
[1] |
Spacer sleeve
|
|
| 29. |
851430
|
[1] |
Bushing
|
|
| 30. |
852984
|
[1] |
Driving wheel
|
|
| 31. |
966207
|
[1] |
Sealing ring
|
|
| 32. |
925050
|
[1] |
O-ring
|
|
| 33. |
872812
|
[1] |
Gear segment
|
SN 4101513908-
|
| 34. |
853759
|
[1] |
Screw
|
|
| 35. |
853760
|
[1] |
Rivet nut
|
|
| 36. |
948210
|
[1] |
Cable tie
|
|
| 37. |
853215
|
[2] |
Plug
|
|
| 38. |
897745
|
[1] |
Gasket
|
|
| 39. |
839091
|
[1] |
Protecting hose
|
|
| 40. |
952635
|
[1] |
Clamp
|
|
| 41. |
955512
|
[1] |
Hexagon screw
|
|
| 42. |
|
|
|
See group 9
|
