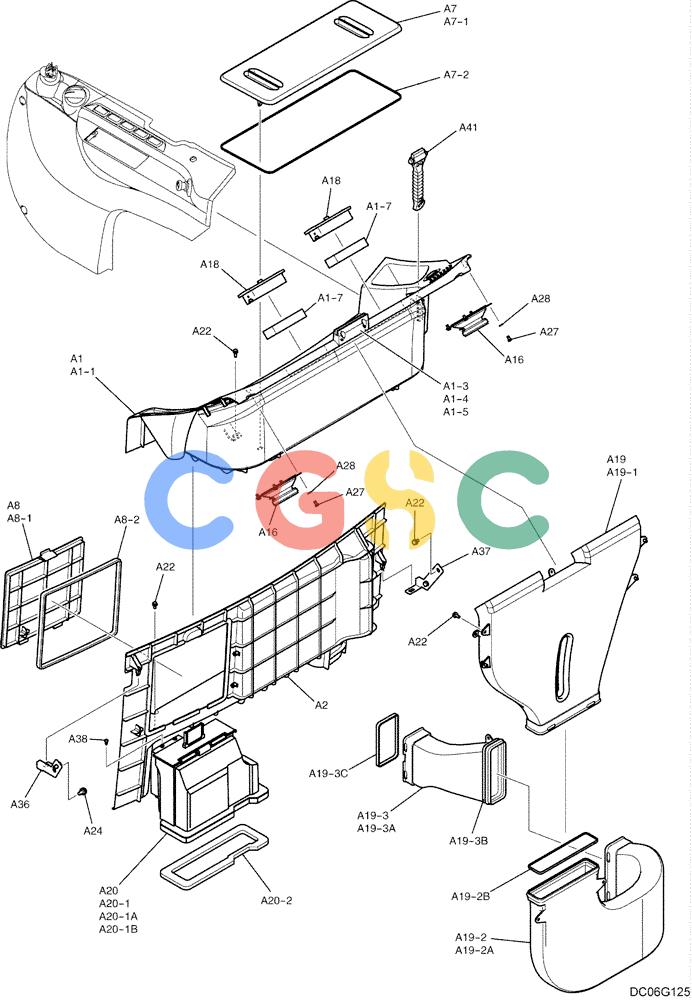

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.065[03]) - INSTRUMENT PANEL ASSEMBLY (YN17M00063F1), FIGURE 3 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YN17M01329F1 | [1] | GUARD | SMAssembly -- Incls. Refs. A1-1 - A1-7 |
| A1-1. | YN17M01287F1 | [1] | GUARD | SMWas listed as YN17M01287P1 |
| A1-3. | YT54S00006P1 | [2] | SPEAKER | KOB |
| A1-4. | YN20M01568P1 | [2] | GRILLE | SM |
| A1-5. | YN17M01262P1 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMM05x10mm Self-Taper |
| A1-6. | ZW16P05000 | [8] | WASHER | KOBID 05 x OD 10 x Th 1.0mm, Not Shown |
| A1-7. | YN81S01002P1 | [1] | SEAT/SLOT,12V | SM24/12 Volt Auxiliary Electrical Power Socket |
| A2. | YN17M01325F1 | [1] | GUARD | SMBefore Date 09/10/2007, Incls. Refs. A2-1 Superseded by part number: YN17M01325F2 |
| A2-1. | YN17M01298P1 | [1] | FOAM INSULATION | KOB3x4x1000mm Long (39-3/8 in), Not Shown |
| A2. | YN17M01325F2 | [1] | COVER ASSY | KOBCover Assembly -- After Date 09/10/2007, Incls. Refs. A2-1 |
| A7. | YN17M01291F1 | [1] | GUARD | SMAssembly -- Incls. Refs. A7-1 - A7-3 |
| A7-1. | YN17M01187P1 | [1] | COVER | KOB Superseded by part number: YN17M01187P2 |
| A7-2. | YN17M01292P1 | [1] | FOAM INSULATION | KOB4x5x1280mm Long (50-25/64 in) |
| A7-3. | YN17M01293P1 | [2] | CLIP | KOB |
| A8. | YN17M01297F1 | [1] | GUARD | SMAssembly -- Incls. Refs. A8-1 & A8-2 Superseded by part number: YN17M01297F2 |
| A8-1. | YN17M01200P1 | [1] | COVER | KOB |
| A16. | YN54S00006P1 | [2] | SPEAKER | KOB Superseded by part number: YN54S00050P2 |
| A19. | YN20M01628F1 | [1] | DUCT | SMAssembly -- Incls. Refs. A19-1 - A19-5 |
| A19-1. | YN20M01630P1 | [1] | DUCT | KOB |
| A19-2. | YN20M01631F1 | [1] | DUCT | KOBAssembly -- Incls. Refs. A19-2A & A19-2B |
| A19-2A. | YN20M01632P1 | [1] | DUCT | KOB |
| A19-2B. | YN20M01633P1 | [1] | FOAM INSULATION | KOB |
| A19-3. | YN20M01634F1 | [1] | DUCT | KOBAssembly -- Incls. Refs. A19-3A - A19-3C |
| A19-3A. | YN20M01635P1 | [1] | DUCT | KOB |
| A19-3B. | YN20M01636P1 | [1] | FOAM INSULATION | KOB6x8x485mm Long (19-3/32 in) |
| A19-3C. | YN20M01637P1 | [1] | FOAM INSULATION | KOB6x8x410mm Long (16-9/64 in) |
| A19-4. | YN20M01684P1 | [2] | Clip | |
| A19-5. | YN20M01685P1 | [2] | Screw | |
| A20. | YN20M01638F1 | [1] | DUCT | SMAssembly -- Incls. Refs. A20-1 & A20-2 |
| A20-1. | YN20M01639F1 | [1] | DUCT | KOBAssembly -- Incls. Refs. A20-1A & A20-1B |
| A20-1A. | YN20M01640P1 | [1] | DUCT | KOB |
| A20-1B. | YN20M01641P1 | [1] | DUCT | KOB |
| A20-2. | YN20M01642P1 | [1] | FOAM INSULATION | KOB104.5x10x300mm Long (11-13/16 in) |
| A22. | ZM66C06016 | [19] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| A24. | ZM66C08016 | [2] | BOLT | KOBM08x1.25x16mm (Incls. Washer & Lockwasher) |
| A36. | YN17M01278P2 | [1] | BRACKET | SM |
| A37. | YN17M01279P1 | [1] | BRACKET | SM |
| A38. | ZS32T50012 | [2] | SCREW | KOBM05x12mm Self-Taper |
| A41. | YN01T01049F1 | [1] | HAMMER | SM |
