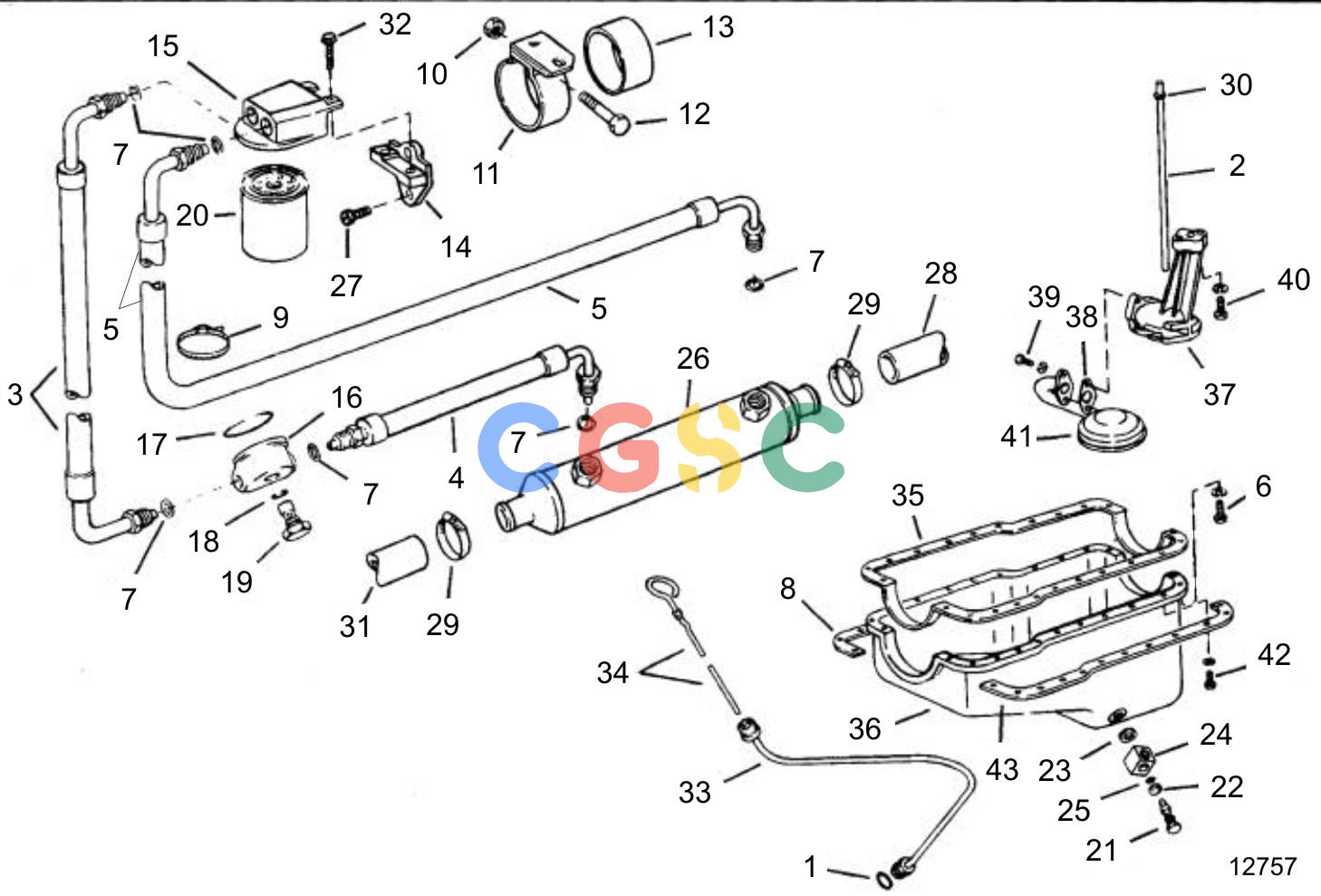

沃尔沃零件查询5.0FIPHUBCE; 5.0FIPHUCCE; 5.0FIPHUECE; 5.0FIPHURCE; 5.0FIPHUSCE; 5.0FLPHUB; 5.0FLPHUC; 5.0FLPHUE; 5.0FLPHUR; 5.0FLPHUS; 5.8FIIHUBCE; 5.8FIIEngineOil Pan, Pump and Remote FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3852033
|
[1] |
O-ring, oil drain tube
|
|
| 2. |
3853105
|
[1] |
Shaft, oil pump
|
|
| 3. |
3854419
|
[1] |
Hose, adapter to filter
|
|
| 4. |
3854418
|
[1] |
Hose, adapter to cooler
|
|
| 5. |
3854417
|
[1] |
Hose, filter to cooler
|
|
| 6. |
3853006
|
[4] |
Screw, oil pan
|
|
| 7. |
3850819
|
[6] |
O-ring, oil hose
|
|
| 8. |
3853106
|
[1] |
Reinforcement, oil pan, stbd
|
|
| 9. |
3852620
|
[1] |
Cable tie, oil lines
|
|
| 10. |
3852079
|
[1] |
Nut, oil cooler bracket
|
|
| 11. |
3852218
|
[1] |
Clamp, oil cooler
|
|
| 12. |
3852126
|
[1] |
Screw, oil cooler
|
|
| 13. |
3853236
|
[1] |
Spacer, oil cooler
|
|
| 14. |
3854413
|
[1] |
Bracket, oil filter
|
|
| 15. |
3854592
|
[1] |
Oil filter housing, oil filter
|
|
| 16. |
3854414
|
[1] |
Adapter, engine oil
|
|
| 17. |
3854416
|
[1] |
O-ring
|
|
| 18. |
3852089
|
[1] |
O-ring, retainer to adapter
|
|
| 19. |
3854415
|
[1] |
Retainer, Adapter
|
|
| 20. |
835779
|
[1] |
Oil filter
|
|
| 21. |
3852609
|
[1] |
Retainer, oil drain
|
|
| 22. |
3852007
|
[1] |
Washer, Retainer
|
|
| 23. |
3853725
|
[1] |
Washer, fitting
|
|
| 24. |
3853664
|
[1] |
Fitting, oil drain
|
|
| 25. |
3853674
|
[1] |
O-ring, oil drain
|
|
| 26. |
3853969
|
[1] |
Oil cooler
|
|
| 27. |
3853266
|
[2] |
Flange screw, bracket to elbow
|
|
| 28. |
3850907
|
[1] |
Hose, oil cooler to oil cooler
|
|
| 29. |
3852602
|
[3] |
Hose clamp, Hose
|
|
| 30. |
3853005
|
[1] |
Retainer, oil pump shaft
|
|
| 31. |
3855120
|
[1] |
Hose, cooler to thermostat
|
|
| 32. |
3853266
|
[2] |
Flange screw, adapter to bracket
|
|
| 33. |
3854170
|
[1] |
Tube, oil drain
|
|
| 34. |
3850473
|
[1] |
Gauge
|
|
| 35. |
3852823
|
[1] |
Gasket, oil pan
|
|
| 36. |
3850394
|
[1] |
Sump
|
|
| 37. |
3853908
|
[1] |
Pump
|
|
| 38. |
3853267
|
[1] |
Gasket, pickup tube
|
|
| 39. |
3853471
|
[2] |
Flange screw, pickup tube
|
|
| 40. |
3853032
|
[2] |
Screw, pump to block
|
|
| 41. |
3853104
|
[1] |
Oil strainer, oil pump
|
|
| 42. |
3853033
|
[18] |
Screw, oil pan
|
|
| 43. |
3853107
|
[1] |
Reinforcement, oil pan, port
|
|
