纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.078[00]) - ELEC ASSEMBLY, UPPER (YN03E00017F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
165 次

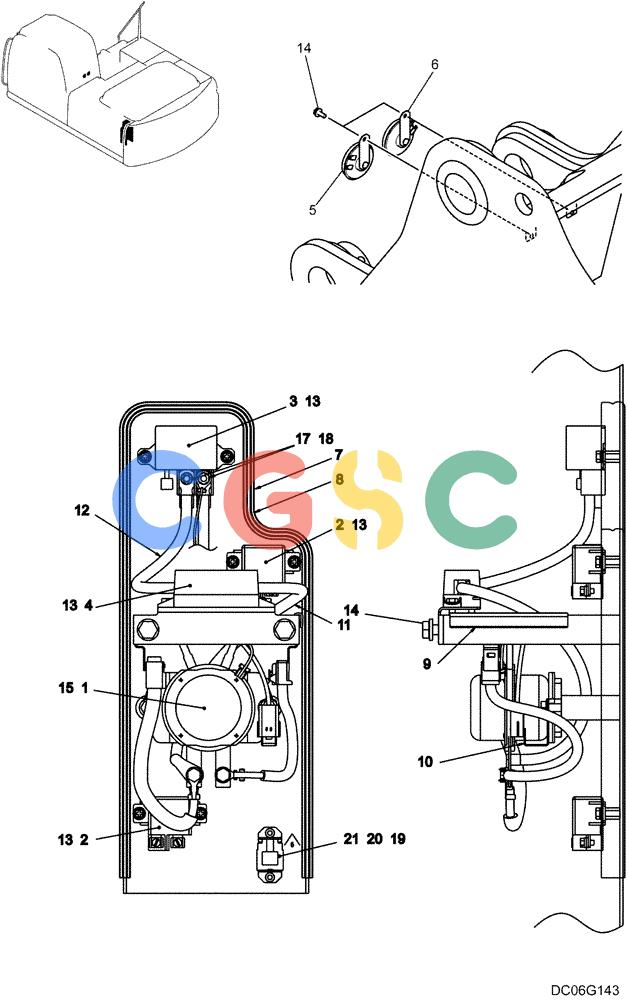

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN24S00008F1 | [1] | RELAY | KOB(Used for Battery) |
| 2. | YN24S00009P1 | [2] | RELAY,24V, 50 Amp | KOB(Used for Starter & Fuel Filter) |
| 3. | YN24S00004P1 | [1] | RELAY,24V, 150 Amp | KOB(Used for Intake Grid Heater) |
| 4. | YN73E00009F1 | [1] | FUSE BOX | KOBAssembly |
| 5. | LC53S00001D1 | [1] | HORN,420Hz | KOBHigh |
| 6. | LC53S00001D2 | [1] | HORN,350Hz | KOBLow |
| 7. | YN03E01053P1 | [1] | COVER | KOB |
| 8. | 2427P1836D30 | [1] | WEATHERSTRIP | KOB1110mm Long (43-45/64 in) |
| 9. | YJ21C01146D5 | [1] | SOFT TRIM | KOB120mm Long (4-23/32 in) |
| 10. | YN03E01056P1 | [1] | PLATE | KOB |
| 11. | YN03E01057P1 | [1] | CABLE,510mm L | KOB510mm Long (20-5/64 in) |
| 12. | YN03E01058P1 | [1] | CABLE,270mm L | KOB270mm Long (10-5/8 in) |
| 13. | ZM61C06016 | [8] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 14. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 15. | ZM73C08030 | [2] | BOLT,M8x30mm - Course Thread | KOBM08x1.25x30mm (Incls. Washer) |
| 17. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 18. | ZW16P06000 | [2] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 19. | ZS31C05016 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOB |
| 20. | ZW26X05000 | [2] | LOCK WASHER | KOBID 05 x OD 09 x Th 1.3mm |
| 21. | YN03E01069P1 | [1] | HOLDER | KOB |
