神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-001[02]) - POWER PLANT ASSEMBLY Kobelco_神钢Kobelco_工程机械

Pos.	Part No	Qty	Parts name	Comments

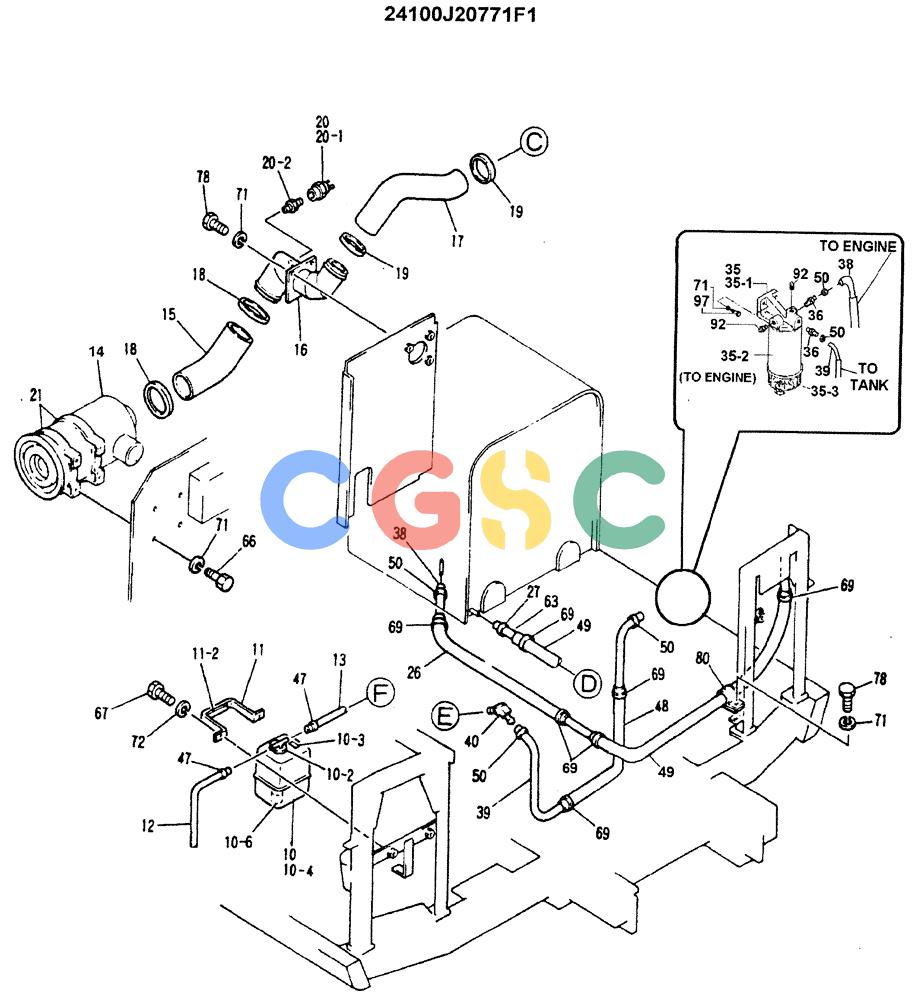

. .	24100J20771F1	[1]	POWER PLANT ASSY
1.	24100N10106F1	[1]	POWER TAKE-OFF (SEE FIGURE 05-003), Serial Range: -10/15/99
. .	24100N10106F2	[1]	POWER TAKE-OFF (SEE FIGURE 05-003), Start Serial: 10/15/99
2.	YM05PU0002F1	[1]	RADIATOR	KOB(SEE FIGURE 05-005)
3.	2444R2697	[1]	HOSE	KOBUPPER RADIATOR Superseded by part number: YM05PU1006P1
4.	2444R2696	[1]	RADIATOR	KOBLOWER RADIATOR Superseded by part number: YM05PU1005P1
5.	(RADIATOR PART)	[1]	SHROUD (FIGURE 05-005)
6.	2416T29618	[1]	STAY	KOBSTAY
7.	2416T29619	[1]	STAY	KOBSTAY
8.	ZC16X07000	[1]	CLIP	KOBClamp, Hose -- Min 60 x Max 81mm, Serial Range: -8/18/00
. .	2432T6984	[1]	CLAMP, Start Serial: 8/18/00
9.	ZC16X05800	[2]	CLIP	KOBClamp, Hose -- Min 50 x Max 66mm
10.	2427U203F3	[1]	TANK	KOBSUB, RADIATOR
10-2.	2427U203S2	[1]	HYD CONNECTOR	KOB
10-3.	2427U203S3	[1]	LABEL	KOBPLATE, CAUTION
10-4.	2427U203S4	[1]	TANK	KOB
10-6.	2427U203S6	[1]	SWITCH	KOBRadiator Over Flow Level
11.	2416T23254	[1]	BRACKET	KOB
11-2.	2416R259D1	[1]	CUSHION	KOB
12.	2418R590D1	[1]	FLEXIBLE HOSE	HIT(L=700MM)
13.	(RADIATOR PART)	[1]	HOSE (SEE FIGURE 05-005)
14.	2446R277F1	[1]	AIR CLEANER	KOB(SEE FIGURE 05-004)
15.	2444R2695	[1]	FLEXIBLE HOSE	KOB
16.	2420P3031	[1]	PIPE	KOB
17.	2444R2694	[1]	FLEXIBLE HOSE	KOB
18.	ZC16X11000	[2]	CLIP	KOBClamp, Hose -- Min 100 x Max 121mm, Serial Range: -8/18/00
. .	2432T6885	[2]	CLAMP 50, Start Serial: 8/18/00	CLAMP 50, Start Serial: 8/18/00
19.	ZC16X08700	[2]	CLIP	KOBClamp, Hose -- Min 77 x Max 96mm, Serial Range: -8/18/00
. .	2432T6884	[2]	CLAMP	KOB, Start Serial: 8/18/00
20.	LE11P01015F1	[1]	INDICATOR	KOBAir Filter Restriction Gauge
20-1.	LE11P01015S001	[1]	INDICATOR, TURN SIGN	KOB Superseded by part number: LV11P01017F1
20-2.	2450R163S2	[1]	LUBE NIPPLE	KOB
21.	2415Z194D2	[2]	BAND	KOB
22.	YM12PU0001P1	[1]	MUFFLER	KOBØ282.4x650mm Long (Ø11-1/8x25-19/32in Long)
23.	YM12PU1003P1	[1]	BRACKET	KOB
24.	2416N7199	[1]	U-BRACKET	KOB, Serial Range: -5/7/99 Superseded by part number: 2416N7973, 77252176
. .	2416N7973	[1]	BRACKET	KOB, Start Serial: 5/7/99
25.	YN12PU1005P1	[2]	U-BOLT	KOB
26.	2418Z1333D6	[1]	PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1400mm Length	KOB
27.	ZC16X01400	[2]	CLIP	KOBClamp, Hose -- Min 10 x Max 17mm
28.	YW12PU1004D1	[1]	CLAMP,70mm - 81.8mm	KOB
29.	ZN13C18015	[4]	NUT	KOBM18x2.5mm
30.	ZN18C08007	[8]	NUT	KOBM08x1.25mm
31.	ZC16X02400	[1]	CLIP	KOB
32.	ZW16H12000	[24]	WASHER	KOBID 13 x OD 26 x Th 3.2mm
33.	ZW16H16000	[4]	WASHER	KOBID 17 x OD 32 x Th 4.5mm
34.	2420Z795D4	[1]	HOSE	KOB Superseded by part number: HX11Y07100DX
35.	YN02PU1004F1	[1]	FILTER ASSY	KOB
35-1.	YN02PU1004S001	[1]	HEAD	KOB
35-2.	YN02PU1010P1	[1]	ELEMENT	KOB Superseded by part number: 84557708
35-3.	YN02PU1004S003	[1]	FILTER BOWL	KOBFILTER BOWL, CLEAR Superseded by part number: 87410185
36.	YN21PU1004P1	[2]	HYD CONNECTOR	KOB
37.	2414P9763	[1]	COVER	KOB
38.	2444R2492D225	[1]	FLEXIBLE HOSE	KOB(L=2250MM)
39.	2444R2492D205	[1]	FLEXIBLE HOSE	KOB(L=2050MM)
40.	YN21PU1003P1	[1]	HYD CONNECTOR	KOB
42.	2414P9843	[1]	COVER	KOB
43.	2416N7200	[1]	U-BRACKET	KOB, Serial Range: -5/7/99 Superseded by part number: 2416N7972, 77252177
. .	2416N7972	[1]	U-BRACKET	KOB, Start Serial: 5/7/99
44.	2414P10495	[1]	COVER	KOB, Serial Range: -5/7/99
. .	2414P10932	[1]	U-BRACKET	KOBCOVER, Start Serial: 5/7/99
45.	2444R2669D3	[1]	FLEXIBLE HOSE	KOB
46.	ZC16X05100	[1]	CLIP	KOBClamp, Hose -- Min 40 x Max 61mm
47.	ZC16X01200	[3]	CLIP,8mm - 15mm	KOBClamp, Hose -- Min 08 x Max 15mm
48.	2418Z1333D1	[2]	PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 250mm Length	KOBProtective Plastic
49.	2418Z1333D7	[2]	PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1000mm Length	HIT
50.	ZC16X01800	[4]	CLIP	KOBClamp, Hose -- Min 12 x Max 22mm
51.	2489U268F1	[1]	SENDER UNIT,65 Degrees C, 149 Degrees F - 115 Degrees C, 239 Degrees F	KOB
52.	2444T3956	[1]	ADAPTER	KOB
53.	2416N7132	[1]	BRACKET	KOB
54.	2416N7131	[1]	U-BRACKET	KOB
55.	2416P20605	[1]	BRACKET	KOB
56.	2416P20606	[1]	U-BRACKET	KOB
57.	YW02P01002P1	[2]	RUBBER	KOBMOUNT Superseded by part number: YW02P01002P2
58.	YW02P01003P1	[2]	ENGINE MOUNT	KOB Superseded by part number: YW02P01003P2
59.	YW02P01004P1	[4]	ENGINE MOUNT	KOBRUBBER
60.	(RADIATOR PART)	[1]	CAPSCREW (SEE FIGURE 05-005)
61.	ZS13C18090	[4]	SCREW	KOBM18x2.0x90mm
62.	ZS18C16035	[4]	SCREW,Hex, M16 x 35mm	KOBM16x2.0x35mm
63.	HX11F04290DX	[1]	HOSE (PF 1/4, L=2900MM)
64.	ZS13C12025	[4]	SCREW	KOBM12x1.75x25mm Superseded by part number: ZS18C12025
65.	ZS13C12032	[6]	CAPSCREW M12x1.75x32mm	CAPSCREW M12x1.75x32mm
66.	ZS18C10025	[9]	SCREW,Hex, M10 x 25mm	KOBM10x1.50x25mm
67.	ZS18C08020	[2]	SCREW,Hex, M8 x 20mm	KOBM08x1.25x20mm
68.	ZS13C12045	[4]	SCREW	KOBM12x1.75x45mm Superseded by part number: ZS18C12045
69.	2432Z290D3	[12]	CLIP	KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3
70.	ZW26X12000	[6]	LOCK WASHER	KOBID 12 x OD 21 x Th 3.0mm
71.	ZW26X10000	[23]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
72.	ZW26X08000	[2]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
73.	2479R2330	[1]	INSULATOR	KOB
74.	2479R2351	[1]	INSULATOR	KOB
75.	2479R2329	[1]	INSULATOR	KOB
76.	ZS13C12035	[8]	CAPSCREW	KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035
77.	ZS13C10016	[1]	SCREW	KOBM10x1.50x16mm Superseded by part number: ZS18C10016
78.	ZS13C10020	[10]	SCREW	KOBM10x1.50x20mm Superseded by part number: ZS18C10020
79.	ZW16H10000	[17]	WASHER	KOBID 11 x OD 24 x Th 3.2mm
80.	2432R225D10	[1]	CLIP	KOBClamp, Single -- ID 25.5 x 58.75mm Long Superseded by part number: ZC46X25011
81.	ZE82T12000	[1]	PLUG	KOB3/4" PT
82.	3056353	[1]	SENSOR	KOBSWITCH, THERMO (YN02PU1003P1) (SEE CUMMINS P/N)
83.	3078152	[1]	SENSOR	HIT(YN02PU1002P1) (SEE CUMMINS P/N) Superseded by part number: 77282643
84.	ZS18C10020	[1]	SCREW,Hex, M10 x 20mm	KOBM10x1.50x20mm
85.	3912753	[1]	FAN	SM(YN02PU1001P1) (SEE CUMMINS P/N) Superseded by part number: 76192059
86.	ZS18C10100	[4]	SCREW,Hex, M10 x 100mm	KOBM10x1.50x100mm
87.	(ENGINE COMPONENT)	[1]	FAN SPACER (SEE CUMMINS P/N)
88.	(ENGINE COMPONENT)	[1]	FAN SPACER (SEE CUMMINS P/N)
89.	ZS18C12030	[2]	SCREW,Hex, M12 x 30mm	KOBM12x1.75x30mm
92.	YN21PU1005P1	[2]	PLUG	KOB
95.	2479Z3125	[2]	FOAM INSULATION	KOB
96.	2479Z3126	[1]	FOAM INSULATION	KOB
97.	ZS18C10030	[1]	SCREW,Hex, M10 x 30mm	KOBM10x1.50x30mm
98.	2416P23104	[1]	SUPPORT	KOBSUPPORT Superseded by part number: 2416P19718
