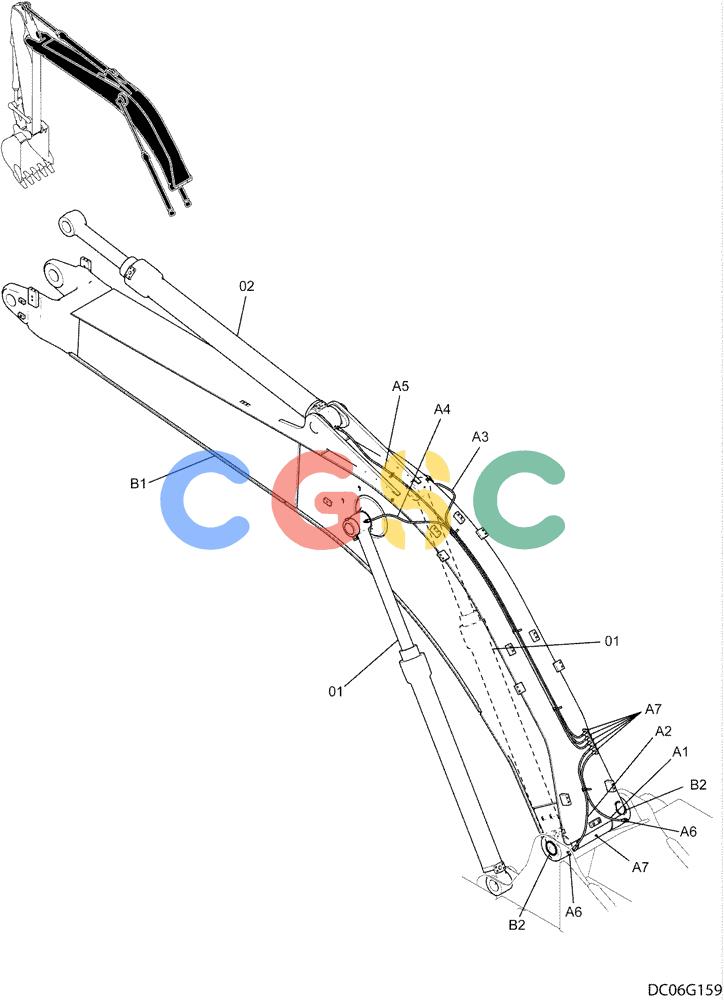

| A1. | 2444R1117D080 | [1] | HOSE,6.4mm ID x 800mm L | KOB |
| A2. | 2444R1117D084 | [1] | HOSE,6.40mm ID x 840mm L | KOB Superseded by part number: 2444R1117D085 |
| A3. | 2444R1117D250 | [1] | HOSE,6.40mm ID x 2500mm L | KOB(PT1/4-PF1/4) 2500mm Long (98-7/16 in) Superseded by part number: HX21E04250DY |
| A4. | 2444R1117D260 | [1] | HOSE,6.4mm ID x 2600mm L | KOB |
| A5. | 2444R1117D300 | [1] | HOSE,6.4mm ID x 3000mm L | KOB |
| A6. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZH32Z04000), ID 10.80 ± 0.18 x OD 15mm, Not Shown |
| A7. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B1. | YN02B00409F1 | [1] | Boom, HOE | |
| B2. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| C1. | YN02B01719P1 | [1] | PIN,90mm OD x 876mm L | KOB |
| C2. | HS18C20175G2 | [1] | BOLT,Hex, M20 x 175mm, Cl 10.9 | KOBM20x2.5x175mm Superseded by part number: 87334470 |
| C3. | ZN18C20016 | [2] | NUT | KOBM20x2.5mm |
| C4. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBID 92 x OD 160 x Th 0.5mm |
| C5. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| C6. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| C7. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| C8. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOBID 92 x OD 160 x Th 2.0mm |
| 01. | YN01V00151F1 | [2] | CYLINDER | KOBAssembly, Boom -- See Figure 8.022 Superseded by part number: YN01V00151F2 |
| D1. | YN02B01720P1 | [2] | PIN,85mm OD x 258mm L | KOB |
| D2. | YN02B01721P1 | [1] | PIN,85mm OD x 776mm L | KOB |
| D3. | HS18C16150G2 | [4] | SCREW | KOBM16x2.0x150mm |
| D4. | YN02B01108P1 | [2] | BOSS | KOB |
| D5. | ZN18C16013 | [8] | NUT | KOBM16x2.0mm |
| D6. | YN02B01417D1 | [6] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOBID 87 x OD 140 x Th 2.0mm |
| D7. | YN02B01109D1 | [1] | SHIM,87mm ID x 120mm OD x 0.5mm Thk | KOBID 87 x OD 120 x Th 0.5mm |
| D8. | YN02B01109D2 | [1] | SHIM,87mm ID x 120mm OD x 0.9mm Thk | KOBID 87 x OD 120 x Th 0.9mm |
| D9. | YN02B01109D4 | [1] | SHIM,87mm ID x 120mm OD x 1.6mm Thk | KOBID 87 x OD 120 x Th 1.6mm |
| D10. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBID 87 x OD 140 x Th 0.5mm |
| D11. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBID 87 x OD 140 x Th 0.9mm |
| D12. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBID 87 x OD 140 x Th 1.6mm |
| 02. | YN01V00175F1 | [1] | CYLINDER,Double Acting, 95mm Rod, 1558mm Stroke | KOBAssembly, Arm -- See Figure 8.023 |
| . . | YN01V00175F1R | [1] | REMAN-HYD CYLINDER | KOBE215B TIER 3 (18FT 6IN) (YN02B00363F1) (1/07-) |
| . . | YN01V00175F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| E1. | YN02B01722P1 | [1] | PIN,85mm OD x 277mm L | KOB |
