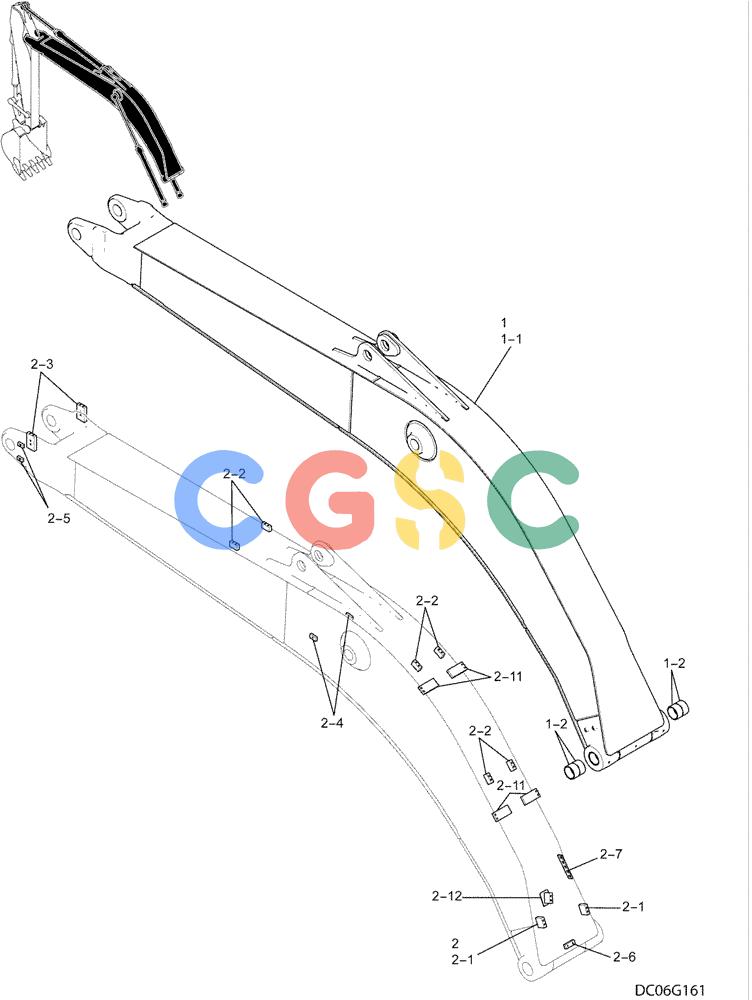

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (3.003[00]) - BOOM ASSEMBLY (YN02B00409F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN02B00400F1 | [1] | BOOM | KOBHOE Boom Assembly, Incls. Refs. 1-1 & 1-2 |
| 1-1. | NA | [1] | NOT SERVICED | FORBoom, HOE |
| 1-2. | LB01V01009P1 | [4] | BUSHING,90mm ID x 105mm OD x 54.5mm L | KOB |
| 2. | YN02B00390P1 | [1] | HOE Boom Assembly, Incls. Refs. 2-1 - 2-12 | |
| 2-1. | YN02B01616P1 | [2] | BLOCK | KOBTapped |
| 2-2. | YN02B01619P1 | [6] | BLOCK,M12 Thd Hole - 75mm L x 41mm W | KOBTapped |
| 2-3. | YN02B01622P1 | [2] | BLOCK,M12 Thd Hole - 25mm Thk x 75mm W x 125mm L | KOBTapped |
| 2-4. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 2-5. | 2416T13042 | [2] | BLOCK | KOBTapped |
| 2-6. | YT02B01059P1 | [1] | BLOCK | KOB |
| 2-7. | 2418T22409 | [1] | PLATE | KOB |
| . . | 2432T4304 | [4] | CLIP | KOBClip -- Not Shown |
| . . | 2432R232D1 | [3] | CLIP | KOBClip -- Not Shown |
| . . | 2432R245D1 | [4] | CLIP | KOBClip -- Not Shown |
| 2-11. | YN02B01882P1 | [4] | BLOCK | KOBTapped |
| 2-12. | YN02B01878P1 | [1] | BRACKET | KOBBracket |
