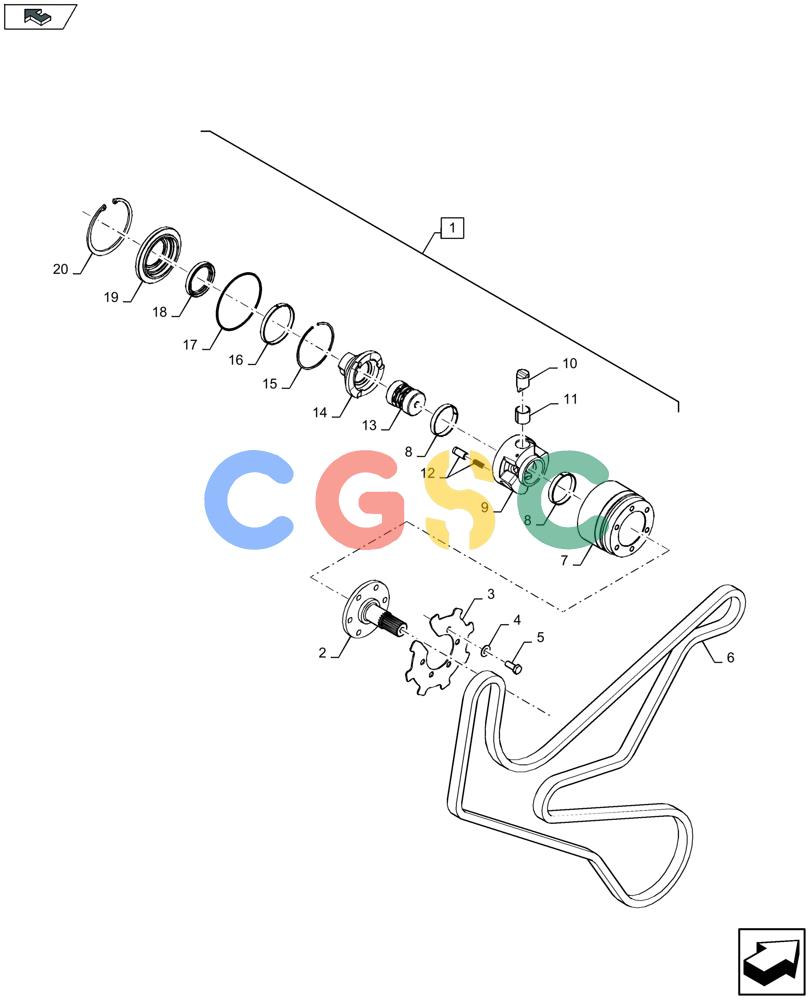

凯斯零件查询(LB334R) - BALER (9/12-) (60.220.180) - KIT CUT OUT CLUTCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84294907
|
[1] |
CLUTCH
|
ZED
Incl 7 - 20
|
| 2. |
84272522
|
[1] |
SHAFT
|
ZED
, Serial Range: -C084 Superseded by part number: 47500358
|
| 2. |
47500358
|
[1] |
SHAFT
|
ZED
, Start Serial: D085
|
| 3. |
84348544
|
[1] |
PLATE
|
ZED
|
| 4. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 5. |
43260
|
[6] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 6. |
84470828
|
[1] |
CHAIN
|
ZED
|
| 7. |
47598883
|
[1] |
HOUSING
|
ZED
|
| 8. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
Nylon Ring Incl in 1
|
| 9. |
47598884
|
[1] |
HUB
|
ZED
|
| 10. |
84801514
|
[1] |
COVER
|
ZED
|
| 11. |
84801513
|
[1] |
BUSHING,28mm ID x 32mm ID x 30mm Thk
|
ZED
|
| 12. |
47598885
|
[1] |
KIT
|
ZED
|
| 13. |
47598886
|
[1] |
KIT
|
ZED
|
| 14. |
47598887
|
[1] |
HUB
|
ZED
|
| 15. |
47598888
|
[1] |
SNAP RING
|
ZED
|
| 16. |
47598889
|
[1] |
RING
|
ZED
|
| 18. |
47598890
|
[1] |
KIT
|
ZED
|
| 19. |
47598891
|
[1] |
KIT
|
ZED
|
| 20. |
87039016
|
[1] |
SNAP RING,M138
|
PA
|
