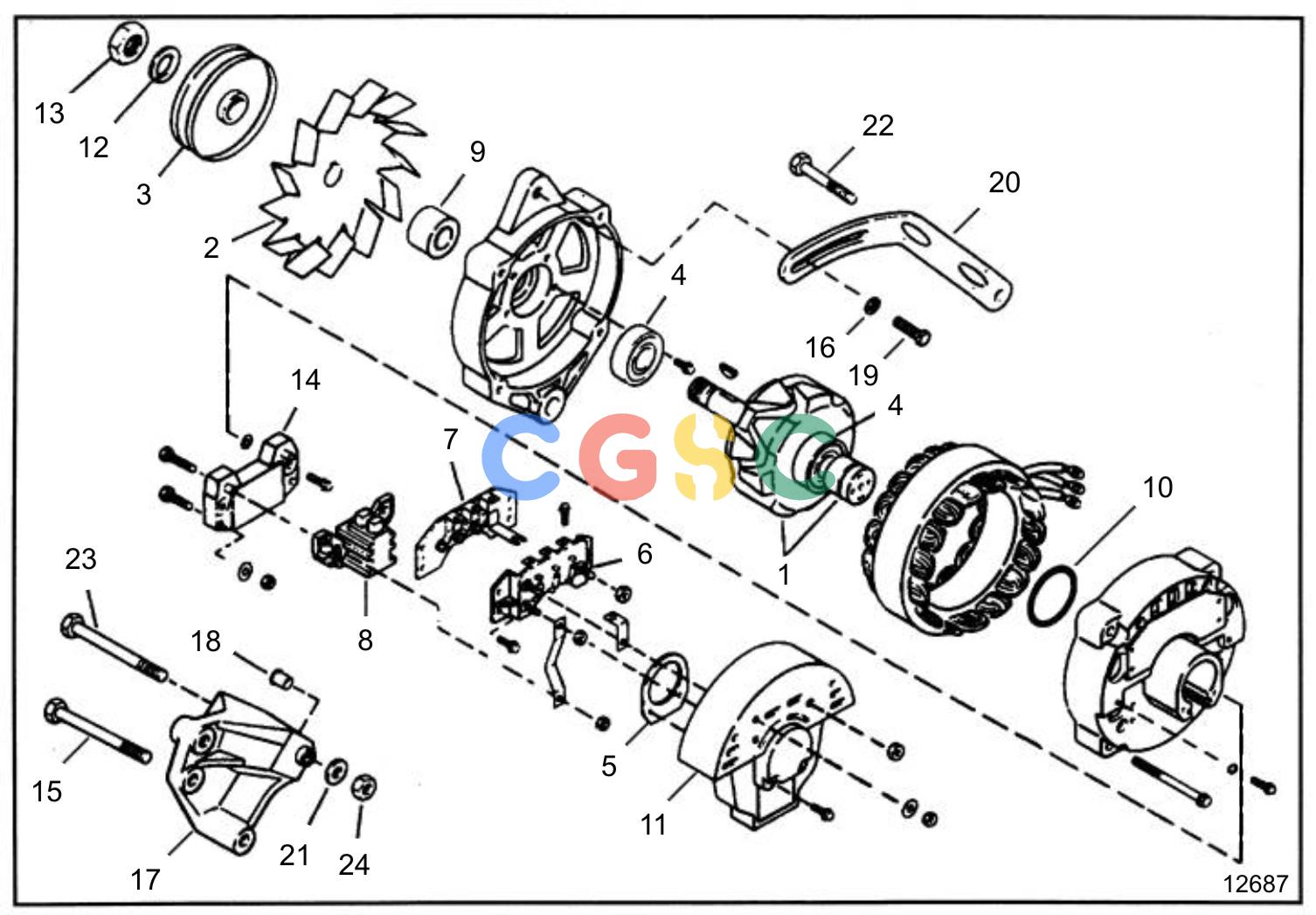

沃尔沃零件查询5.0FiPMDA; 5.0FiPMDM; 5.8FiPMDA; 5.8FiPMDMElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3854182
|
[1] |
Alternator
|
Unnumbered parts serviced at assembly level only
|
| 1. |
3854226
|
[1] |
Rotor
|
|
| 2. |
3853756
|
[1] |
Fan
|
|
| 3. |
3853755
|
[1] |
Pulley
|
|
| 4. |
3852643
|
[2] |
Bearing, front & rear
|
|
| 5. |
3852642
|
[1] |
Retainer, rear bearing
|
|
| 6. |
3852641
|
[1] |
Diode
|
|
| 7. |
3853836
|
[1] |
Rectifier
|
|
| 8. |
3853835
|
[1] |
Brush
|
|
| 9. |
3852639
|
[1] |
Spacer, fan
|
|
| 10. |
3852637
|
[1] |
Gasket
|
|
| 11. |
3853834
|
[1] |
Cap
|
|
| 12. |
3852625
|
[1] |
Washer, pulley
|
|
| 13. |
3852630
|
[1] |
Nut, pulley
|
|
| 14. |
3853833
|
[1] |
Governor, voltage
|
|
| 15. |
3853395
|
[2] |
Flange screw, alternator bracket to engine
|
|
| 16. |
3852054
|
[1] |
Washer, brace to alternator
|
|
| 17. |
3854183
|
[1] |
Bracket, alternator to water pump
|
|
| 18. |
3852740
|
[1] |
Bushing, alternator
|
|
| 19. |
3853399
|
[1] |
Flange screw, brace to alternator
|
|
| 20. |
3852703
|
[1] |
Brace, alternator
|
|
| 21. |
3852058
|
[1] |
Washer, alternator to bracket
|
Rear
|
| 22. |
3853557
|
[1] |
Flange screw, alternator brace to water pump
|
|
| 23. |
3853367
|
[1] |
Flange screw, alternator to bracket
|
power steering pump
|
| 24. |
3852051
|
[1] |
Nut, alternator to bracket
|
|
