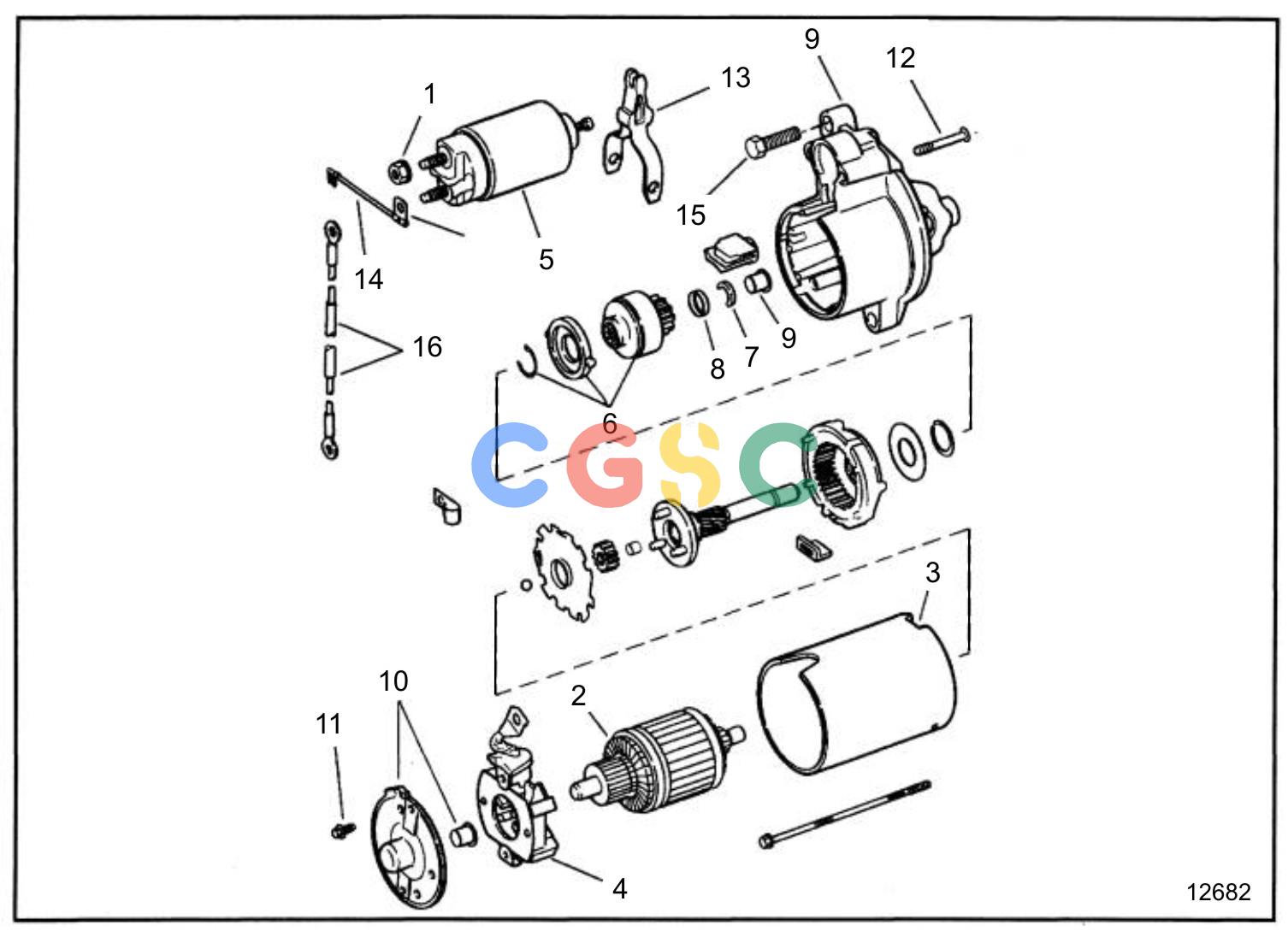

沃尔沃零件查询5.0FiPMDA; 5.0FiPMDM; 5.8FiPMDA; 5.8FiPMDMElectrical SystemStarterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3854190
|
[1] |
Starter motor
|
Not shown
|
| 2. |
3853717
|
[1] |
Rotor
|
|
| 3. |
3854200
|
[1] |
Housing
|
|
| 4. |
3854202
|
[1] |
Carbon brush retaine
|
|
| 5. |
3854194
|
[1] |
Solenoid
|
|
| 6. |
3854196
|
[1] |
Drive
|
|
| 7. |
|
|
|
Not sold separately
|
| 8. |
|
|
|
Not sold separately
|
| 9. |
3854199
|
[1] |
Housing, drive end
|
|
| 9. |
|
|
|
Not shown
|
| 10. |
3854203
|
[1] |
Plate
|
|
| 10. |
|
|
|
Not shown
|
| 11. |
3854231
|
[1] |
Screw kit, hardware
|
Not shown
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
3854201
|
[1] |
Intermediate lever
|
|
| 14. |
3853714
|
[2] |
Nut, solenoid
|
|
| 15. |
3854193
|
[1] |
Cable, solenoid to solenoid
|
|
| 16. |
3853326
|
[2] |
Flange screw, starter to housing
|
|
| 17. |
3854205
|
[1] |
Cable, solenoid to solenoid
|
|
| 18. |
|
|
|
Part not sold
|
