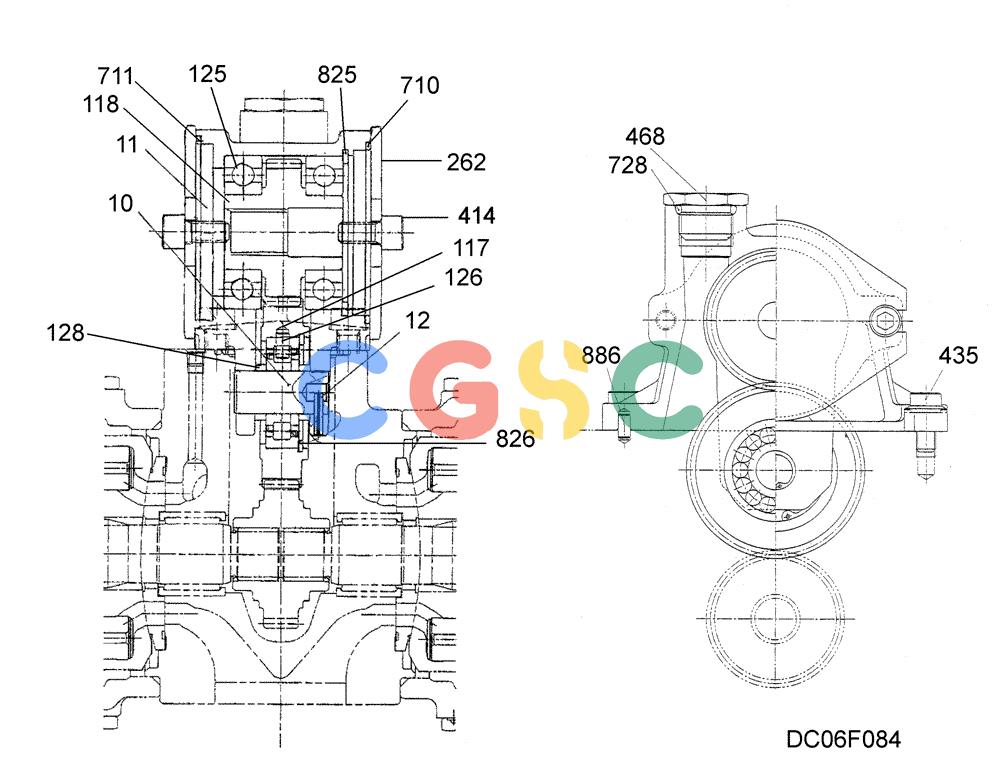

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (3.013[00]) - CASE ASSEMBLY, GEAR (YN46W00001F2) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
259 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | NSS | [1] | NOT SERVICED SEPARATELY | CONCase |
| 12. | ZP26D04020 | [1] | ROLL PIN | KOBOD 04 x 20mm Long |
| 414. | ZS23C10020 | [4] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 435. | YX46W00001S435 | [4] | SOCKET | KOB |
| 468. | 2441U436S469 | [1] | PLUG | KOB |
| 710. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 711. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 728. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
