纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (4.002[00]) - ELEMENT KIT (YN30TU0003F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
627 次

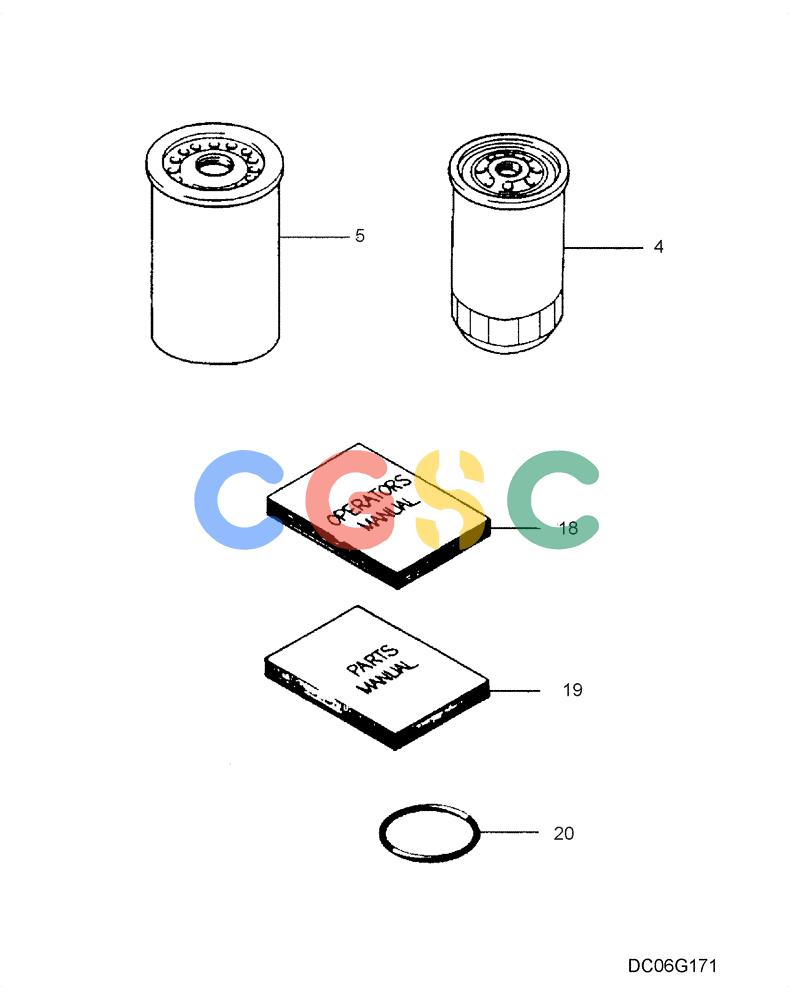

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5. | YN30T01004P1 | [2] | FUEL FILTER | KOBElement, Fuel |
| 18. | YN91ZU0006D1 | [1] | Manual, Operators -- Before Date 07/09/2007 | |
| 18. | 87612121 | [1] | Manual, Operators -- After Date 07/09/2007 | |
| 19. | YN91ZU0005D1 | [1] | SERVICE MANUAL | KOBREPAIR MANUAL Manual, Parts |
| 20. | 2445Z1570 | [4] | O-RING,9mm Thk x 125mm ID, Cl 5, 75 Duro | KOBID 125 ± 0.40 x OD 143mm |
| 21. | YN30T01005P1 | [1] | FUEL FILTER | KOBElement, Fuel -- Not Shown |
| . . | 504040088 | [1] | HOSE | LECDrain Hose, Not Shown Superseded by part number: 504040826 |
