神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-017[07]) - AIR CONDITIONER KIT INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P4816F1 | [1] | KIT | KOBINSTALL (OPTIONAL) (F1 ONLY), Serial Range: SK100-SK130 |
| . . | 24100P4816F2 | [1] | SK150 AC KIT (RS-3-7490-1P) INSTALL (OPTIONAL) (F2 ONLY), Serial Range: SK150-SK160 | SK150 AC KIT (RS-3-7490-1P) INSTALL (OPTIONAL) (F2 ONLY), Serial Range: SK150-SK160 |
| . . | 24100P4816F3 | [1] | KIT | KOBAIR CONDITIONER KIT INSTALL (OPTIONAL) (F3 ONLY), Serial Range: SK200-SK270 Superseded by part number: RD3-7490-5P |
| . . | 24100P4816F4 | [1] | AIR CONDITIONER KIT INSTALL (OPTIONAL) (F4 ONLY), Serial Range: SK300-SK330 | |
| . . | 24100P4816F5 | [1] | KIT | KOBINSTALL (OPTIONAL) (F5 ONLY), Serial Range: SK400-SK460 |
| 1. | 24100P4816S001 | [1] | CLAMP | |
| 2. | 24100P4816S002 | [1] | CLAMP | |
| 3. | 24100P4816S003 | [1] | HOSE (F4 ONLY) | HOSE (F4 ONLY) |
| 4. | 24100P4816S004 | [1] | HOSE | KOB(F3 ONLY) |
| 5. | 24100P4816S005 | [1] | HOSE | KOBHOSE (F3 ONLY) |
| 6. | 24100P4816S006 | [1] | HOSE | KOB(F3 & F4 ONLY) |
| 7. | 24100P4816S007 | [1] | HOSE | KOB(F2 & F3 ONLY) |
| 8. | 24100P4816S008 | [1] | CONDENSER | KOB(F3, F4 & F5 ONLY) |
| 9. | 24100P4816S009 | [2] | BRACKET | KOB(F3 ONLY) |
| 10. | 24100P4816S010 | [1] | HOSE | HIT(F2 ONLY) |
| 11. | 24100P4816S011 | [1] | HOSE | KOB(F1 ONLY) |
| 12. | 24100P4816S012 | [1] | HOSE | KOB(F2 ONLY) |
| 13. | 24100P4816S013 | [1] | HOSE | KOB(F1 ONLY) |
| 14. | 24100P4816S014 | [1] | HOSE | KOB(F4 & F5 ONLY) |
| 15. | 24100P4816S015 | [1] | A/C HOSE | KOBHOSE (F1 ONLY) |
| 16. | 24100P4816S016 | [1] | HOSE (F1 ONLY) | |

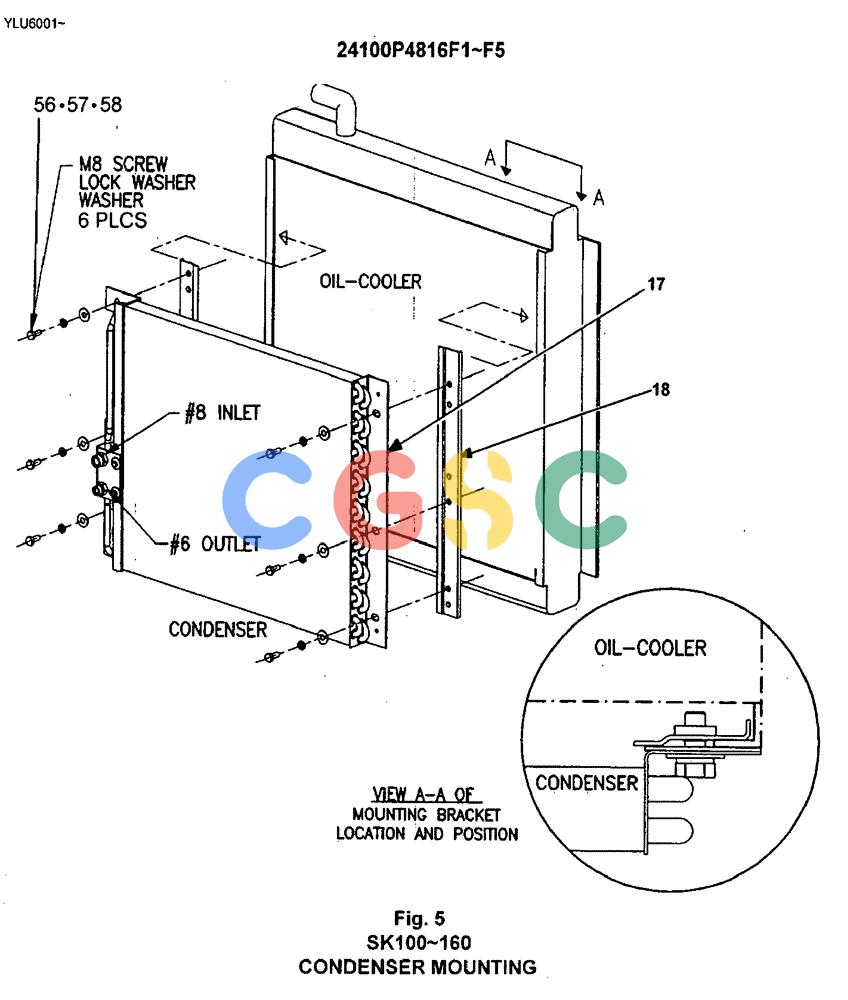

| 17. | 24100P4816S017 | [1] | CONDENSER | KOB(F1 & F2 ONLY) |
| 18. | 24100P4816S018 | [2] | BRACKET | KOB(F1 & F2 ONLY) |
| 19. | 24100P4816S019 | [1] | AIRCOND. COMPRESSOR | KOB |
| 20. | 24100P4816S020 | [1] | SUPPORT | KOB(F1, F2 & F3 ONLY) |
| 21. | 24100P4816S021 | [1] | SUPPORT (F4 ONLY) | |
| 22. | 24100P4816S022 | [1] | SUPPORT | KOB(F5 ONLY) |
| 23. | 24100P4816S023 | [1] | HOSE (F4 ONLY) | |
| 24. | 24100P4816S024 | [1] | HOSE | KOB(F5 ONLY) |
| 25. | 24100P4816S025 | [1] | HOSE | KOBHOSE (F5 ONLY) |
| 26. | 24100P4816S026 | [1] | HOSE | KOB(F5 ONLY) |
| 27. | 24100P4816S027 | [2] | SUPPORT (F4 ONLY) | |
| 28. | 24100P4816S028 | [2] | SUPPORT (F5 ONLY) | |
| 29. | 24100P4816S029 | [1] | PANEL | KOBCONTROL (24100U1497F4) (SEE FIGURE 05-014) |
| 30. | 24100P4816S030 | [1] | FILTER, AIR (RD-5-8079-0) RECIRCULATING (24100U1476S074) (SEE FIGURE 05-016) | FILTER, AIR (RD-5-8079-0) RECIRCULATING (24100U1476S074) (SEE FIGURE 05-016) |
| 31. | 24100P4816S031 | [12] | CLAMP | |
| 32. | 24100P4816S032 | [4] | HOSE(22\")SEE 2444R2542D6 | HOSE(22")SEE 2444R2542D6 |
| 33. | 24100P4816S033 | [1] | HOSE(47\") | HOSE(47") |
| 34. | 24100P4816S034 | [1] | HOSE(37\")SEE 2444R2542D6 | HOSE(37")SEE 2444R2542D6 |
| 35. | 24100P4816S035 | [1] | BRACKET | KOB |
| 36. | 24100P4816S036 | [1] | RECEIVER-DRYER | KOBAIR CLEANER DRYER |
| 37. | 24100P4816S037 | [1] | HOSE | |
| 39. | 24100P4816S039 | [1] | SWITCH | KOBBINARY |
| 40. | 24100P4816S040 | [1] | RELAY | KOB |
| 41. | 24100P4816S041 | [3] | RETAINER 10 | RETAINER 10 |
| 42. | 24100P4816S042 | [15] | TIE WRAP | |
| 43. | 24100P4816S043 | [1] | WIRE | |
| 44. | 24100P4816S044 | [1] | BRACE ASSY, MOTOR | |
| 45. | 24100P4816S045 | [4] | SPACER | |
| 46. | 24100P4816S046 | [1] | AIR CONDITIONER ASSY (24100U1476F2) (SEE FIGURE 05-016) | |
| 49. | 24100P4816S049 | [1] | WIRE HARNESS | KOBBINARY SWITCH |
| 50. | 24100P4816S050 | [1] | WIRE HARNESS | KOBRELAY |
| 51. | 24100P4816S051 | [1] | WIRE HARNESS | KOBBIN/THERM. |
| 54. | 24100P4816S054 | [5] | TIE WRAP-4" | |
| 55. | 24100P4816S055 | [10] | TIE WRAP-8" | |
| 56. | 24100P4816S056 | [6] | CAPSCREW (F1 & F2 ONLY) | |
| 57. | 24100P4816S057 | [6] | WASHER (F1 & F2 ONLY) | |
| 58. | 24100P4816S058 | [6] | LOCK WASHER (F1 & F2 ONLY) | |
| 59. | 24100P4816S059 | [4] | CAPSCREW (F3, F4 & F5 ONLY) | |
| 60. | 24100P4816S060 | [4] | WASHER (F3, F4 & F5 ONLY) | |
| 61. | 24100P4816S061 | [4] | LOCK WASHER (F3, F4 & F5 ONLY) | |
| 62. | 24100P4816S062 | [1] | BELT | HITCOMPRESSOR (F1 & F2 ONLY) |
| 63. | 24100P4816S063 | [1] | BELT, TRANSMISSION | KOBCOMPRESSOR (F3 ONLY) |
| 64. | 24100P4816S064 | [1] | BELT | KOBCOMPRESSOR (F4 ONLY) |
| 65. | 24100P4816S065 | [1] | BELT | KOBCOMPRESSOR (F5 ONLY) |
