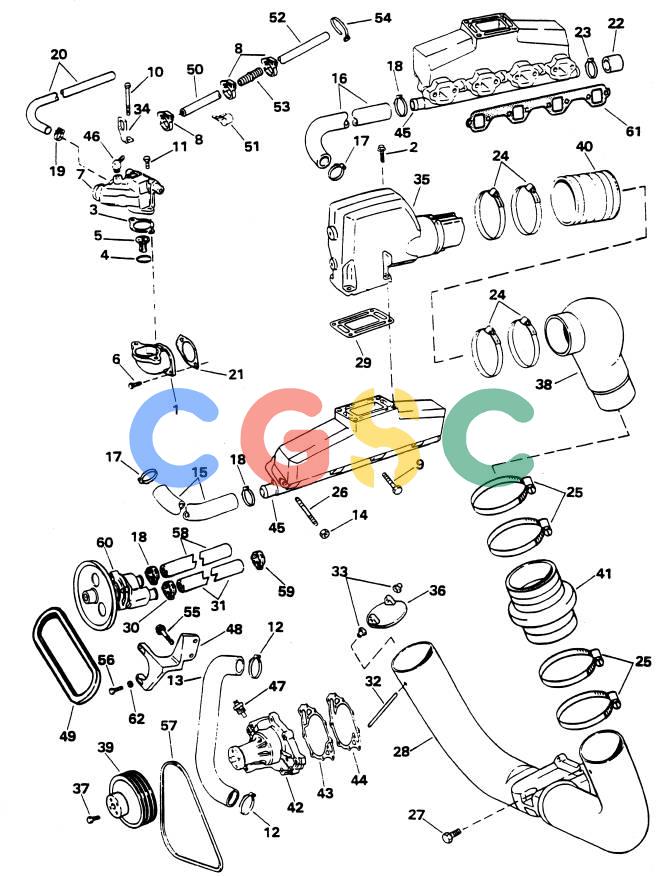

| 1. |
3853245
|
[1] |
Adapter, thermostat hsg
|
|
| 2. |
3853651
|
[8] |
Screw, elbow to manifold
|
|
| 3. |
3852111
|
[1] |
Gasket, therm. hsg. to adapter
|
|
| 4. |
3852071
|
[1] |
O-ring, thermostat
|
|
| 5. |
3852216
|
[1] |
Thermostat
|
|
| 6. |
3853471
|
[2] |
Flange screw, Adapter
|
|
| 7. |
3850360
|
[1] |
Housing
|
|
| 8. |
3852196
|
[3] |
Hose clamp, hose to reservoir
|
|
| 9. |
3853155
|
[6] |
Flange screw, manifold to engine
|
|
| 10. |
3853391
|
[1] |
Flange screw, thermostat hsg., long
|
|
| 11. |
3853401
|
[1] |
Flange screw, thermostat hsg., short
|
|
| 12. |
3852098
|
[2] |
Hose clamp, therm. hsg
|
|
| 13. |
3852300
|
[1] |
Hose, therm. hsg. to pump
|
|
| 14. |
3853404
|
[10] |
Nut, exhaust manifold
|
|
| 15. |
3853633
|
[1] |
Hose, therm. hsg. to manifold, port
|
|
| 16. |
3853420
|
[1] |
Hose, therm. hsg. to manifold, stbd
|
|
| 17. |
3853780
|
[2] |
Hose clamp, therm. hsg
|
|
| 18. |
3852602
|
[2] |
Hose clamp, exhaust manifold
|
|
| 19. |
3852602
|
[1] |
Hose clamp
|
|
| 20. |
3853581
|
[1] |
Hose, cooler to thermostat
|
|
| 21. |
3852456
|
[1] |
Gasket, adapter to intake
|
|
| 22. |
3852476
|
[2] |
Cap, manifold
|
|
| 23. |
3852602
|
[2] |
Hose clamp, manifold cap
|
|
| 24. |
3852604
|
[8] |
Hose clamp, exhaust pipe
|
|
| 25. |
3852604
|
[8] |
Hose clamp, exhaust pipe
|
|
| 26. |
3853434
|
[10] |
Stud, manifold
|
|
| 27. |
3852898
|
[4] |
Screw, pipe to gimbal
|
|
| 28. |
3855281
|
[1] |
Exhaust pipe kit
|
|
| 29. |
3850496
|
[2] |
Gasket, elbow to manifold
|
|
| 30. |
3850422
|
[1] |
Hose clamp, water hose inlet
|
|
| 31. |
3852331
|
[1] |
Hose, gimbal to water pump
|
|
| 32. |
3852753
|
[2] |
Pin, exhaust seal
|
|
| 33. |
3853566
|
[4] |
Bushing, pin
|
|
| 34. |
3852649
|
[1] |
Bracket
|
|
| 35. |
3853567
|
[1] |
Elbow, riser, stbd
|
|
| 35. |
3853568
|
[1] |
Elbow, riser, port
|
|
| 36. |
3853864
|
[2] |
Seal
|
|
| 37. |
3853390
|
[4] |
Screw, water pump pulley
|
|
| 38. |
3853609
|
[2] |
Exhaust pipe
|
5.0L
|
| 38. |
3853615
|
[2] |
Exhaust pipe
|
5.8L
|
| 39. |
3854187
|
[1] |
Pulley, water pump
|
|
| 40. |
3853608
|
[2] |
Hose, manifold to pipe
|
|
| 41. |
3852741
|
[2] |
Hose, upper pipe to lower
|
|
| 42. |
3853796
|
[1] |
Pump
|
|
| 43. |
3850596
|
[1] |
Gasket, water pump plate
|
|
| 44. |
3852824
|
[1] |
Gasket, water pump
|
|
| 45. |
3852347
|
[2] |
Exhaust manifold, exhaust
|
|
| 46. |
3853598
|
[1] |
Elbow, hose to reservoir
|
|
| 47. |
3852029
|
[1] |
Sensor, water temp
|
|
| 48. |
3852312
|
[1] |
Bracket, water pump
|
|
| 49. |
3852348
|
[1] |
V-belt, water pump
|
|
| 50. |
3850633
|
[1] |
Hose, valve to thermostat
|
|
| 51. |
3852088
|
[1] |
Clamp, hose to valve cover
|
|
| 52. |
3850654
|
[1] |
Hose, reservoir to valve
|
|
| 53. |
3850666
|
[1] |
Nipple, anti-siphon
|
|
| 54. |
3852158
|
[1] |
Cable tie, reservoir
|
|
| 55. |
3853326
|
[1] |
Flange screw, bracket to engine
|
|
| 56. |
3853397
|
[2] |
Screw, water pump to bracket
|
|
| 57. |
3853713
|
[1] |
V-belt, alternator pulley
|
|
| 58. |
3852332
|
[1] |
Hose, water pump to reservoir
|
|
| 59. |
3852602
|
[1] |
Hose clamp, gimbal housing
|
|
| 60. |
3852398
|
[1] |
Water pump
|
Replaced by 3851623
|
| 61. |
3853742
|
[2] |
Gasket, manifold to engine
|
|
| 62. |
3852054
|
[1] |
Washer, water pump
|
|
