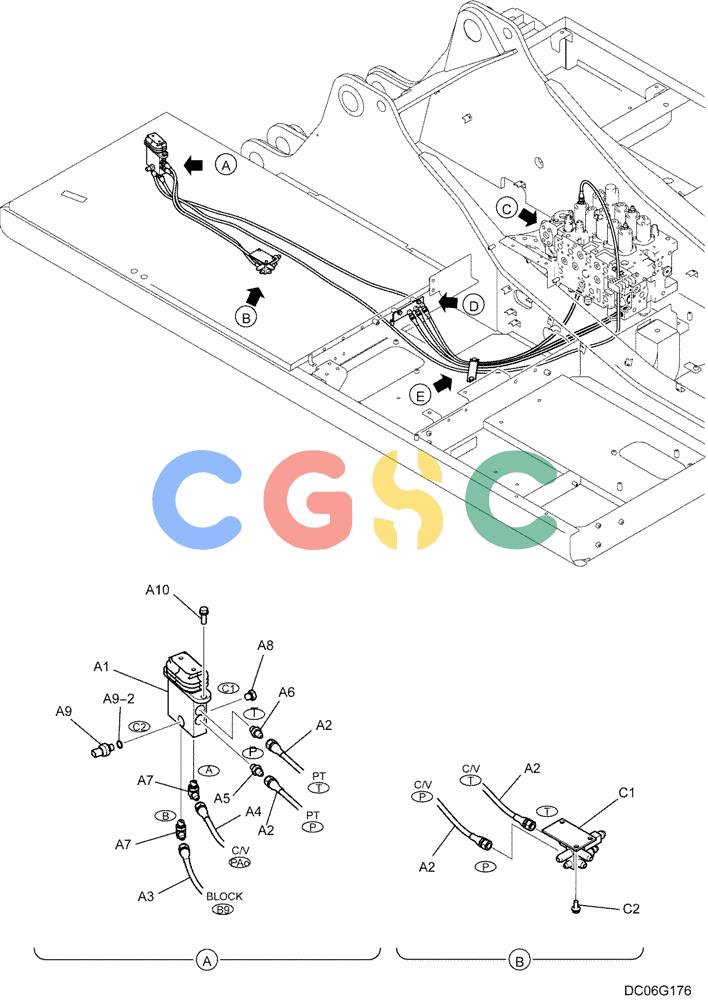

| A1. | YN30V00080F1 | [1] | VALVE | KOBAssembly -- See Figure 8.026 |
| A2. | 2420R349D090 | [2] | HOSE,6.35mm ID x 900mm L | KOB |
| A3. | 2420R349D160 | [1] | HOSE,6.35mm ID x 1600mm L | KOB |
| A4. | 2420R349D370 | [1] | HOSE,3700.00 mm | KOB3700mm Long (145-43/64 in) Superseded by part number: HX21E04370DX |
| A5. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.80 ± 0.18 x OD 15mm, Not Shown |
| A6. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A7. | ZH32X04000 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH32X04000), SAE No. 4-1, Not Shown Superseded by part number: 72186131, 165202 |
| A8. | ZE72X04000 | [1] | PLUG | KOB(Incls. O-Ring ZD12P01100) |
| A9. | LC52S00019P1 | [1] | SENSOR | SMPressure (Low Pressure) -- Replaced YX52S00013P1 (Incls. O-Ring ZD12P01100) |
| A10. | HM83C10030G1 | [2] | BOLT | KOBM10x30mm |
| A11. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| . . | ZD12P01400 | [1] | O-RING | KOB(Part of ZH22X04006), ID 13.80 ± 0.19 x OD 18mm, Not Shown |
| . . | YN64H00225F1 | [1] | CONTROL BLOCK | KOBBlock Control Lines |
| B1. | YN64H01292P1 | [1] | BLOCK | KOB192mm Long (7-35/64 in) |
| B2. | 2420R349D110 | [2] | HOSE,1100.00 mm | KOB Superseded by part number: HX21E04110DX |
| B3. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| B4. | ZH42X04006 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB45° -- 1/4"PFx3/8"PFx53.5mm Long (Incls. O-Ring ZD12P01400) |
| B6. | YN64H01288P1 | [1] | CLAMP | KOBPlate -- 164x36x14.5mm |
| B7. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| . . | LC64H00090F1 | [1] | CONTROL | KOBBlock Control Lines (PT-1Pedal) |
| C1. | YN64H01337P1 | [1] | BLOCK | SMManifold |
| C2. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
