沃尔沃零件查询5.0FIPNCACE 5.0FIPNCBCE 5.0FIPNCMCE 5.0FIPNCSCE 5.0FLPNCA 5.0FLPNCB 5.0FLPNCM 5.0FLPNCSIntake and Exhaust SystemExhaust and CoolingEPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询5.0FIPNCACE; 5.0FIPNCBCE; 5.0FIPNCMCE; 5.0FIPNCSCE; 5.0FLPNCA; 5.0FLPNCB; 5.0FLPNCM; 5.0FLPNCSIntake and Exhaust SystemExhaust and CoolingEPC Volvo Penta Parts catalog

广数供应链运营团队, 15 02月, 2025，浏览： 867 次

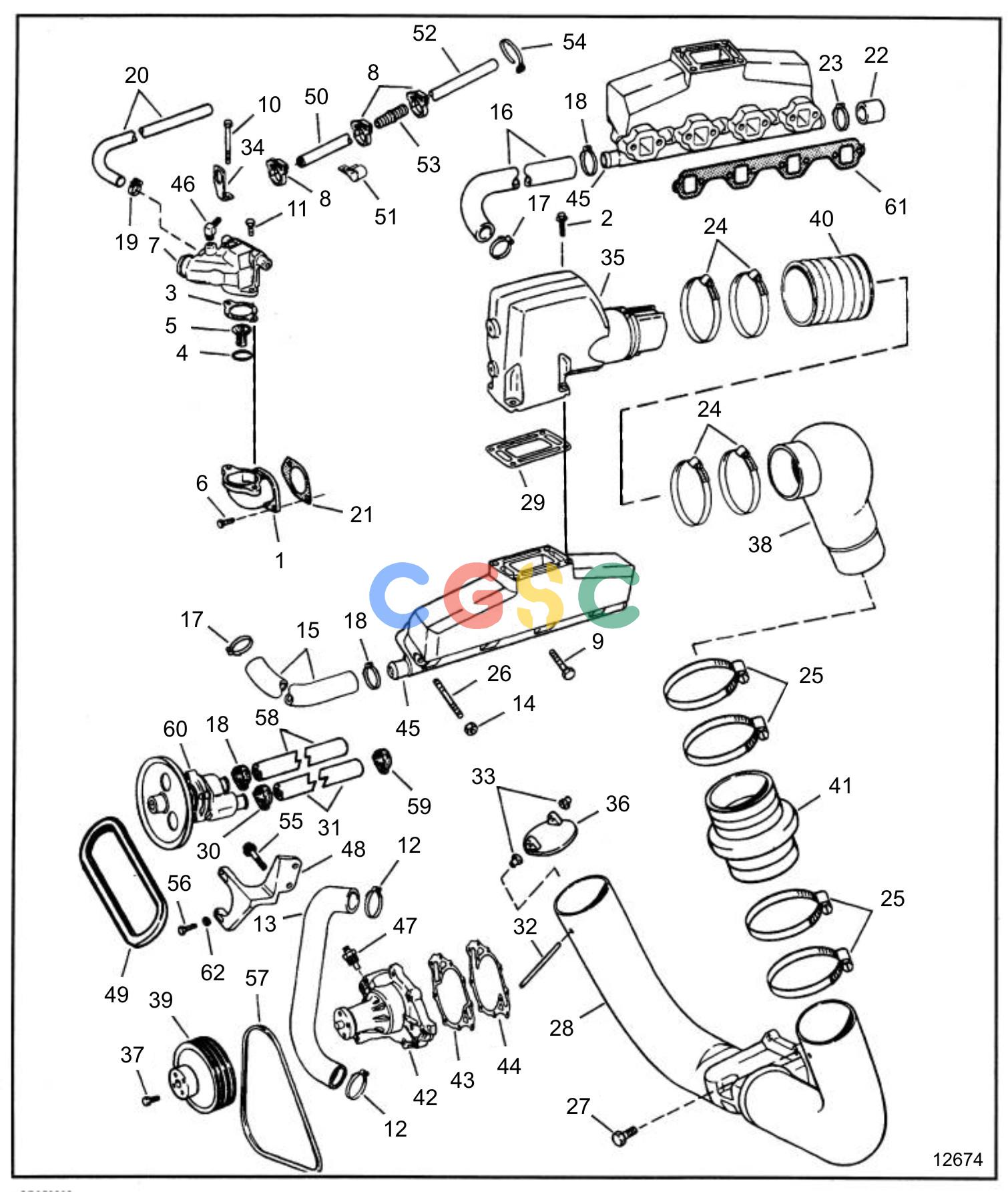

Pos.	Part No	Qty	Parts name	Comments
1.	3853245	[1]	Adapter, thermostat hsg
2.	3853651	[8]	Screw, high rise elbow to exhaust manifold
3.	3852111	[1]	Gasket, thermostat hsg to engine
4.	3852071	[1]	O-ring, thermostat
5.	3852216	[1]	Thermostat, engine
6.	3853471	[2]	Flange screw, adapter to intake manifold, therm hsg
7.	3850360	[1]	Housing, thermostat hsg
8.	3852196	[1]	Hose clamp, hose to reservoir, antisiphon valve
9.	3853155	[6]	Flange screw, exhaust manifold
10.	3853391	[1]	Flange screw, lift bracket & thermostat hsg	To intake manifold
11.	3853401	[1]	Flange screw, thermostat hsg to adapter, short
12.	3852098	[2]	Hose clamp, therm hsg to water pump
13.	3852300	[1]	Hose, thermostat hsg to water pump
14.	3853404	[12]	Nut, exhaust manifold to engine
15.	3853633	[1]	Hose, thermostat hsg to exhaust manifold	Port
16.	3853420	[1]	Hose, thermostat hsg to exhaust manifold	Stbd
17.	3853780	[2]	Hose clamp, to thermostat hsg
18.	3852602	[2]	Hose clamp, cap to exhaust manifold
19.	3852602	[1]	Hose clamp, to thermostat hsg inlet
20.	3853581	[1]	Hose, oil cooler to thermostat hsg
21.	3852456	[1]	Gasket, therm adapter to intake manifold
22.	3852476	[2]	Cap, exhaust manifold
23.	3852602	[2]	Hose clamp, to exhaust manifold
24.	3852604	[8]	Hose clamp, hose, exhaust pipe upper to lower
25.	3852604	[8]	Hose clamp, hose, exhaust pipe upper to lower
26.	3853434	[10]	Stud, exhaust manifold to cylinder head
27.	3855472	[4]	Flange screw, pipe to gimbal
28.	3855281	[1]	Exhaust pipe kit
28.	3851000	[1]	Exhaust pipe
29.	3850496	[2]	Gasket, elbow to exhaust manifold
30.	3850422	[1]	Hose clamp, water pump inlet
31.	3850361	[1]	Hose, transom to water pump	290 DP
31.	3852331	[1]	Hose, gimbal hsg to water pump	SX, DP-S
32.	3852753	[2]	Pin, exhaust seal assy to exhaust pipe
33.	3855517	[4]	Bushing, exhaust seal assy to exhaust pipe
34.	3852649	[1]	Bracket, center lift
35.	3855269	[1]	Exhaust pipe, starboard
35.	3855271	[1]	Exhaust pipe, port
35.	3850740	[2]	Plug, exhaust elbow
36.	3853864	[2]	Seal, exhaust pipe
37.	3853390	[4]	Screw, water pump pulley to hub
38.	3853615	[2]	Exhaust pipe, exhaust pipe assy to exhaust elbow	5.8L
38.	3853609	[2]	Exhaust pipe	5.0L, SX
38.	3854500	[2]	Exhaust pipe, upper high rise elbow to Y-pipe	5.0L, 290 DP
39.	3854187	[1]	Pulley, water pump
40.	3853608	[2]	Hose, exhaust elbow to exhaust pipe, upper
41.	3852741	[2]	Hose, upper exhaust pipe to exhaust pipe
42.	3853796	[1]	Pump
43.	3850596	[1]	Gasket, water pump plate
44.	3852824	[1]	Gasket, water pump
45.	3852347	[2]	Exhaust manifold, exhaust	Port & stbd
46.	3853598	[1]	Elbow, hose to reservoir
47.	3853787	[1]	Temperature sensor, water temperature
48.	3855640	[1]	Bracket, water pump
49.	973535	[1]	V-belt, water pump
50.	3850633	[1]	Hose, antisiphon valve to therm hsg
51.	3852088	[1]	Clamp, hose, therm hsg to reservoir
52.	3850654	[1]	Hose, reservoir to antisiphon valve
53.	3850666	[1]	Nipple, hoses, thermostat hsg to reservoir
54.	3854925	[1]	Hose clamp, hose, antisiphon valve from reservoir
55.	3853326	[2]	Flange screw, water pump bracket to engine
56.	3853397	[2]	Screw, water pump to bracket
57.	3853713	[1]	V-belt, alternator pulley
58.	3852332	[1]	Hose, water pump to reservoir
59.	3852602	[1]	Hose clamp, gimbal housing
60.	3851623	[1]	Sea water pump
61.	3853742	[2]	Gasket, manifold to engine
62.	3852054	[2]	Washer, screw, water pump to bracket
