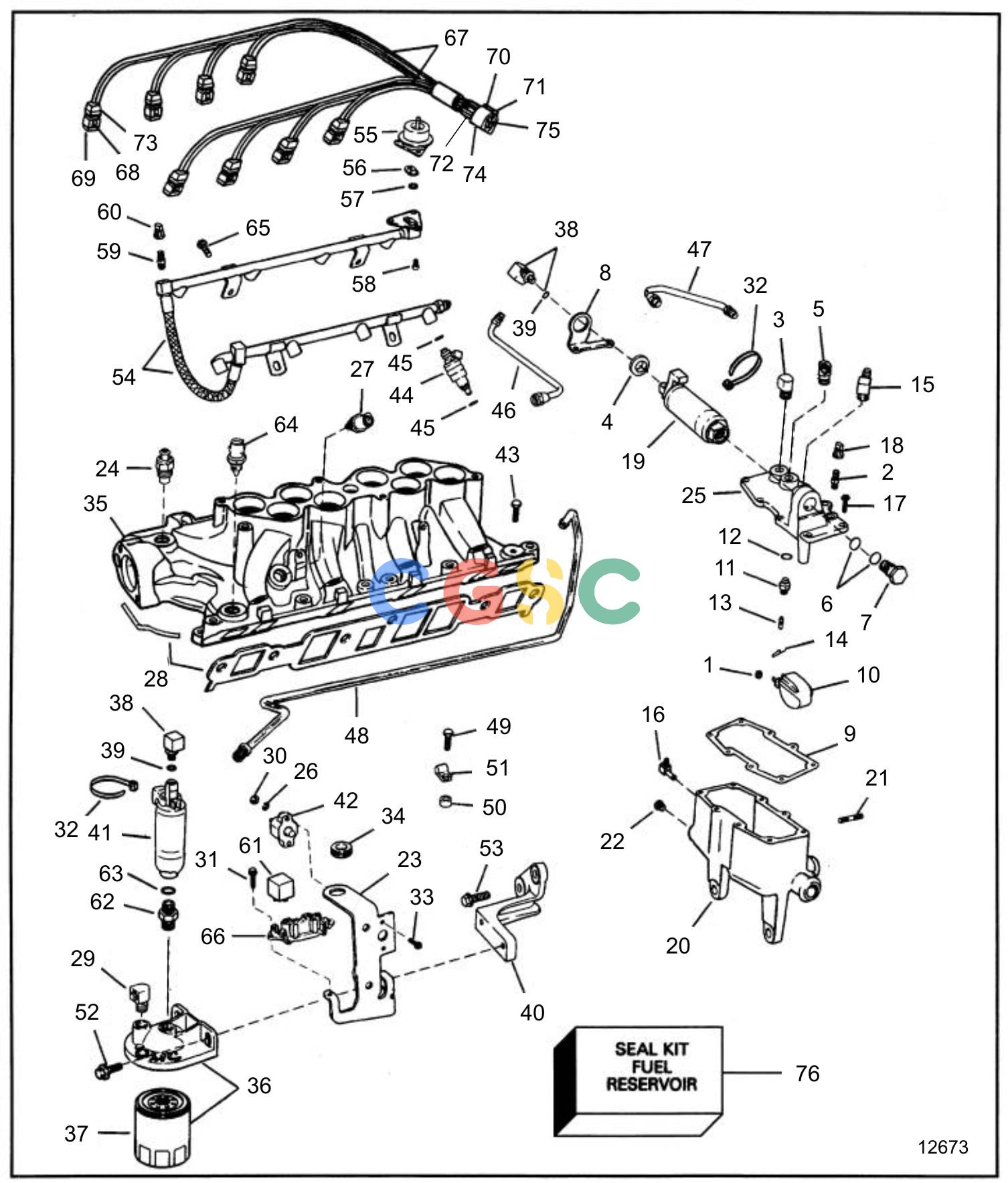

| 1. |
3852034
|
[1] |
Retainer, float to pin
|
|
| 2. |
3854152
|
[1] |
Valve, reservoir assy
|
|
| 3. |
3852453
|
[1] |
Fitting, cover, reservoir assy, return
|
|
| 4. |
3852481
|
[1] |
Grommet, fuel pump to cover, reservoir assy
|
|
| 5. |
3852506
|
[1] |
Fitting, pump to reservoir
|
Low pressure fuel pump
|
| 6. |
3853642
|
[2] |
O-ring, retainer, fuel pump
|
|
| 7. |
3853572
|
[1] |
Retainer, fuel pump to cover
|
Reservoir assy
|
| 8. |
3853573
|
[1] |
Bracket, fuel pump grommet, reservoir assy
|
|
| 9. |
3853574
|
[1] |
Gasket, cover, reservoir assy
|
|
| 10. |
3853575
|
[1] |
Float, reservoir assy
|
|
| 11. |
3853576
|
[1] |
Spring seat, float needle, reservoir assy
|
|
| 12. |
3853577
|
[1] |
Gasket, float needle seat, reservoir assy
|
|
| 13. |
3853578
|
[1] |
Needle, float, reservoir assy
|
|
| 14. |
3853579
|
[1] |
Clip, needle to float, reservoir assy
|
|
| 15. |
3853597
|
[1] |
Elbow, vent, reservoir to intake
|
|
| 16. |
3852480
|
[1] |
Elbow, reservoir to thermostat hsg
|
|
| 17. |
3853606
|
[8] |
Screw, cover to reservoir
|
Reservoir assy
|
| 18. |
3853616
|
[1] |
Protective hat, pressure valve
|
|
| 19. |
3854280
|
[1] |
Fuel pump, electric
|
High pressure
|
| 20. |
3854149
|
[1] |
Reservoir
|
|
| 21. |
3852093
|
[1] |
Stud, bracket & cooler mount
|
|
| 22. |
3852167
|
[1] |
Plug, reservoir drain
|
|
| 23. |
3853544
|
[1] |
Bracket, support, fuel pump & relay mounting
|
|
| 24. |
3854710
|
[1] |
Breaker, water temperature
|
Intake manifold, front
|
| 25. |
3854405
|
[1] |
Cap, reservoir
|
|
| 26. |
3852001
|
[2] |
Tab washer, circuit breaker terminals
|
Fuel pump
|
| 27. |
3854158
|
[1] |
Sensor, air charge temperature
|
|
| 28. |
3854406
|
[1] |
Intake gasket kit, intake manifold
|
|
| 29. |
3852013
|
[1] |
Elbow, inlet, fuel filter cover
|
|
| 30. |
3852064
|
[2] |
Nut, circuit breaker terminals
|
Fuel pump
|
| 31. |
3852208
|
[2] |
Screw, relay & cable assy
|
|
| 32. |
3852158
|
[1] |
Cable tie, eng cbl to low pres fuel pump assy
|
|
| 33. |
3853620
|
[2] |
Hexagon screw, circuit breaker to bracket
|
|
| 34. |
3852481
|
[1] |
Grommet, fuel pump to bracket
|
|
| 35. |
3854301
|
[1] |
Manifold
|
|
| 36. |
3850861
|
[1] |
Kit
|
|
| 37. |
3851218
|
[1] |
Fuel filter
|
|
| 38. |
3853545
|
[1] |
Fitting, fuel pump
|
|
| 39. |
3850820
|
[1] |
O-ring, fitting
|
|
| 40. |
3853570
|
[1] |
Bracket, pump, filter, circuit breaker & support
|
|
| 41. |
3854902
|
[1] |
Fuel pump, low pressure
|
|
| 42. |
3854163
|
[1] |
Automatic fuse, 20A, fuel pump
|
|
| 43. |
3853036
|
[1] |
Bolt, intake manifold
|
|
| 44. |
3854136
|
[8] |
Injector, Fi, Fsi
|
|
| 44. |
3850925
|
[8] |
Injector, Fsi
|
For spec. no. 3868418
|
| 45. |
3853733
|
[1] |
O-ring
|
|
| 46. |
3854142
|
[1] |
Fuel pipe, reservoir to fuel line, feed
|
|
| 47. |
3854143
|
[1] |
Fuel pipe, regulator to reservoir
|
|
| 48. |
3854140
|
[1] |
Fuel pipe, fuel pump to reservoir, low pressure
|
|
| 49. |
3852043
|
[1] |
Screw, clamp & spacer to valve cover
|
|
| 50. |
3853617
|
[1] |
Bushing, clamp, fuel line to volve cover
|
Port
|
| 51. |
3852231
|
[1] |
Attaching clamp, fuel line to valve cover, port
|
|
| 52. |
3853266
|
[2] |
Flange screw, fuel pump, support bracket,
|
Fuel filter to bracket
|
| 53. |
3853558
|
[2] |
Screw, fuel filter bracket to cyl head
|
|
| 54. |
3854141
|
[1] |
Fuel pipe, fuel injectors to intake
|
|
| 55. |
3854237
|
[1] |
Regulator kit
|
|
| 56. |
3853737
|
[1] |
Gasket
|
|
| 57. |
3853738
|
[1] |
O-ring
|
|
| 58. |
3853739
|
[3] |
Screw
|
|
| 59. |
3854152
|
[4] |
Valve
|
|
| 60. |
3853616
|
[1] |
Protective hat
|
|
| 61. |
3852259
|
[1] |
Relay, fuel pump
|
|
| 62. |
3853493
|
[1] |
Fitting, fuel pump to fuel filter cover
|
|
| 63. |
3850819
|
[1] |
O-ring, fitting
|
|
| 64. |
3854159
|
[1] |
Sensor, coolant temperature
|
|
| 65. |
3852213
|
[4] |
Screw, fuel line assy to intake manifold
|
Fuel injectors
|
| 66. |
3852210
|
[1] |
Bracket, relay
|
|
| 67. |
3854150
|
[1] |
Cable harness
|
|
| 68. |
3853680
|
[8] |
Connector, injector
|
|
| 69. |
3853679
|
[2] |
Terminal
|
|
| 70. |
3853708
|
[1] |
Connector
|
|
| 71. |
3853709
|
[1] |
Retainer
|
|
| 72. |
3853710
|
[1] |
Terminal
|
|
| 73. |
3853711
|
[8] |
Receptacle, injector
|
|
| 74. |
3852230
|
[1] |
Plug, connector seal
|
|
| 75. |
3853740
|
[8] |
Terminal
|
|
| 76. |
3850374
|
[1] |
Kit, fuel reservoir
|
|
