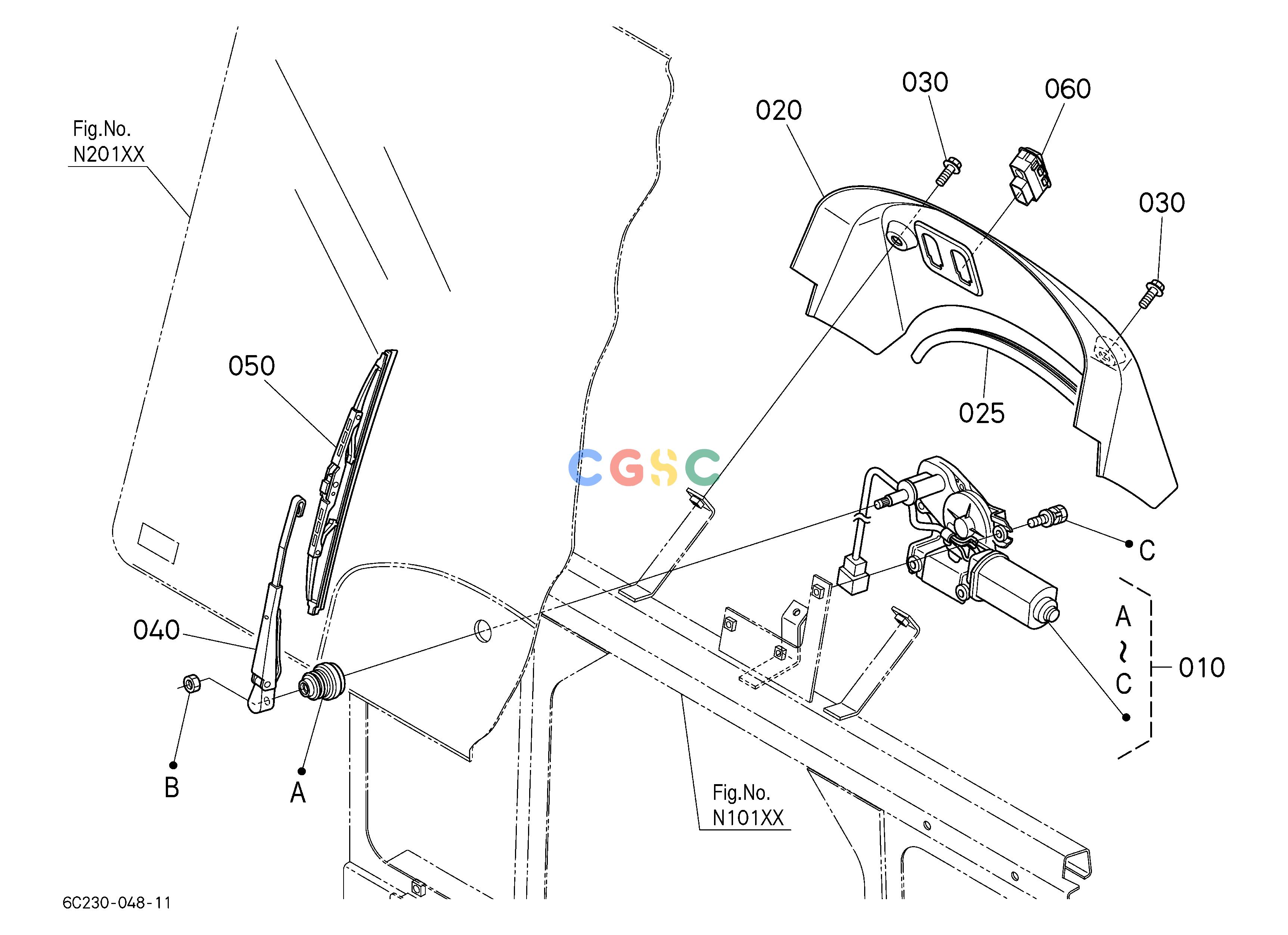

久保田零件查询B43000 WIPER ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
5H73639530
|
[1] |
MOTOR,WIPER
|
2.0196(lbs); 0.918
|
| 020. |
6C23074210
|
[1] |
COVER,FRONT WIPER
|
0.4070(lbs); 0.185
|
| 025. |
6C23074220
|
[1] |
TRIM,COVER WIPER
|
0.0528(lbs); 0.024
|
| 030. |
3135118790
|
[2] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 040. |
T106571120
|
[1] |
ARM,FRONT WIPER
|
0.3080(lbs); 0.140
|
| 050. |
T106571130
|
[1] |
ASSY BLADE,WIPER
|
0.2002(lbs); 0.091
|
| 060. |
T106575380
|
[1] |
SWITCH(WIPER FRONT)
|
0.0462(lbs); 0.021
|
