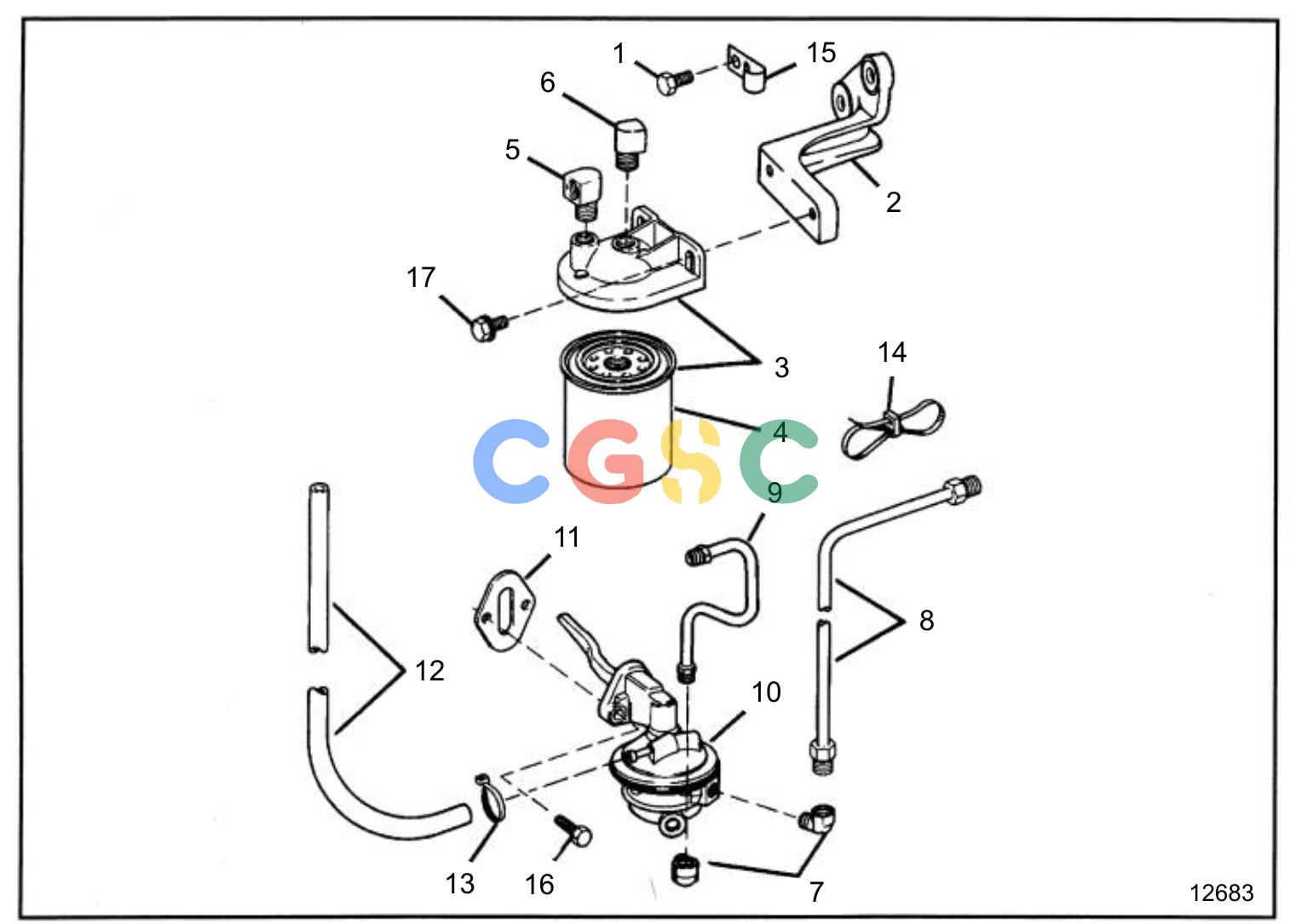

沃尔沃零件查询5.0FLPMDA; 5.8FLPMDAFuel SystemFuel Pump and FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3853558
|
[2] |
Screw, fuel filter bracket to cyl head
|
|
| 2. |
3853379
|
[1] |
Bracket, fuel filter to engine
|
|
| 3. |
3850861
|
[1] |
Kit
|
|
| 4. |
3851218
|
[1] |
Fuel filter
|
|
| 5. |
3852014
|
[1] |
Fitting, fuel inlet
|
|
| 6. |
3852702
|
[1] |
Fitting, fuel line to filter
|
|
| 7. |
3852525
|
[2] |
Fitting, fuel pump, inlet & outlet
|
|
| 8. |
3854059
|
[1] |
Fuel pipe, pump to carburetor
|
SX
|
| 8. |
3854596
|
[1] |
Fuel pipe
|
DP
|
| 9. |
3854024
|
[1] |
Fuel pipe, filter to pump
|
|
| 10. |
3854053
|
[1] |
Pump
|
|
| 11. |
3852095
|
[1] |
Gasket, fuel pump to engine
|
|
| 12. |
|
|
|
|
| 13. |
3852158
|
[1] |
Cable tie, overflow hose to fuel pumplcarb assy
|
|
| 14. |
3852486
|
[3] |
Cable tie, overflow hose to fuel line
|
|
| 15. |
3852458
|
[1] |
Attaching clamp, fuel line to bracket
|
Cylinder head
|
| 16. |
3853326
|
[2] |
Flange screw, fuel pump to engine
|
|
| 17. |
3853557
|
[2] |
Flange screw, fuel filter assy to bracket
|
|
