| . . | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE INSTAL |

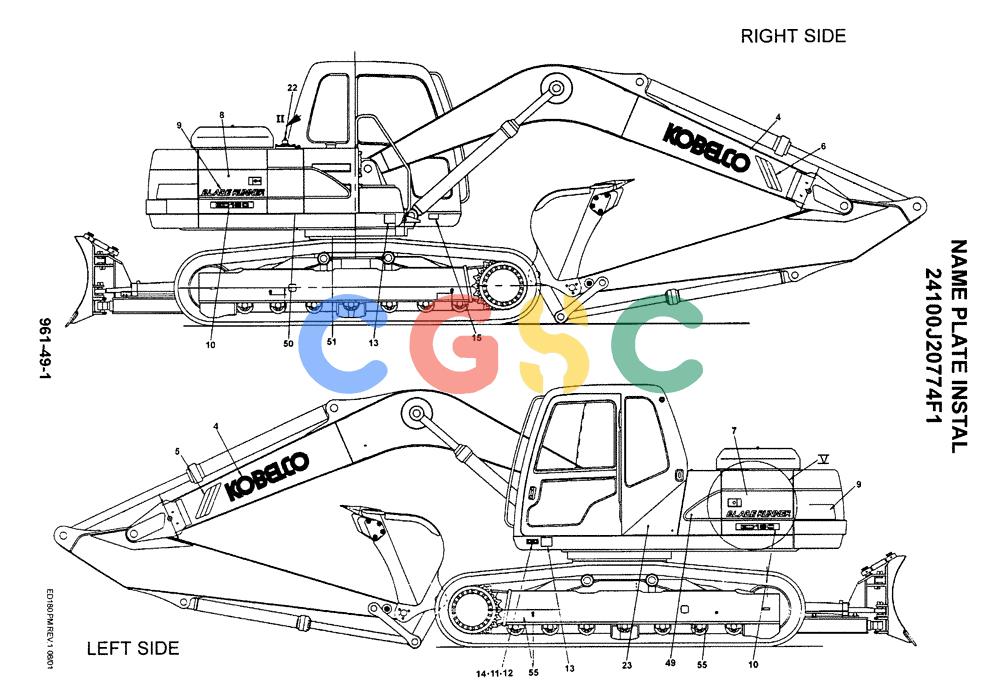

| . . | 24100J20774F1 | [1] | NAME PLATE INSTAL | |
| 1. | 2432P3772 | [1] | LABEL | KOB |
| 2. | 2432P3773 | [1] | LABEL | KOB |
| 3. | 2432P3774 | [1] | LABEL | KOB |
| 4. | 2432P3393 | [2] | LABEL | KOB |
| 5. | 2432N2977 | [1] | LABEL | KOB |
| 6. | 2432N2978 | [1] | LABEL | KOB |
| 7. | 2432P4094 | [1] | LABEL | KOB |
| 8. | 2432P4096 | [1] | LABEL | KOB |
| 9. | 2432P4092 | [2] | LABEL | KOB |
| 10. | 2432P4093 | [2] | PLATE | KOB |
| 11. | 2432T5613 | [1] | IDENTITY PLATE | KOBName plate, Kobelco - Model, Serial number, Manufacture year |
| 12. | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 13. | YN20T01006P1 | [3] | LABEL | KOBDecal, Danger, Contact with electrical power lines will result in … |
| 14. | 2422T590 | [1] | 4 - \u00d85.1 holes added | 4 - Ø5.1 holes added |
| 15. | 2432P2689 | [1] | LABEL | KOBDecal, Greasing Swing Bearing … |
| 16. | YN20T01003P1 | [2] | LABEL | KOBDecal, Danger, Keep clear of swing area. Superseded by part number: YN20T01003P2 |
| 17. | 2427Z1432 | [6] | SHEET | KOBAnti-Slip (300x110mm) |
| 18. | 2432P4143 | [3] | LABEL | KOBDecal, Warning -- Dozer wings should be folded for transport only. Do not … |
| 19. | YN20T01213P1 | [1] | LABEL | KOBDecal, Diesel Fuel Only |
| 20. | YN20T01239P1 | [1] | LABEL | KOBDecal, Warning, Pressurized hot oil can cause burns. Depress, Serial Range: stem-… Superseded by part number: PY20T01074P1 |
| 21. | 2432N3695 | [1] | LABEL | KOB |
| 22. | YN57V00002S007 | [1] | IDENTITY PLATE | KOBPlate, Caution |
| 23. | 2432P3308 | [1] | LABEL | KOBDecal, Yellow triangle (615x626mm) |
| 24. | 2432T6110 | [1] | LABEL | KOBDecal, Warning, Extreme high pressure in truck adjustment cylinder … |
| 25. | YN20T01097P1 | [1] | LABEL | KOBDecal, Filled with antifreeze This machine is filled with … |
| 26. | YN20T01016P1 | [1] | WARNING DECAL | KOBDecal, Warning, Read and understand operator manual before … |
| 27. | 2432T6109 | [1] | LABEL | KOBDecal, Warning, Do not install any object on the handrail. This can cause … |
| 28. | 2432T6108 | [1] | LABEL | KOBDecal, Warning, Pull out the connector when lifting the front widow. Lock … |
| 29. | 2432T6129 | [1] | LABEL | KOBDecal, Caution, Do not attempt normal machine operations when lamp … |
| 30. | YN20T01048P1 | [1] | LABEL | KOBDecal, Warning, Automatic two speed travel system changes travel speed … |
| 31. | LE20T01019P1 | [1] | LABEL | KOBDecal, Caution, Falling front window can cause injury. Always lock securely… Superseded by part number: YN20T01416P1 |
| 32. | 2432N3684 | [1] | LABEL | KOB |
| 33. | 2432P3380 | [1] | LABEL | KOBDecal, Caution, Bucket can contact and damage cab when mahine … Superseded by part number: YN20T01013P1 |
| 34. | 2432T5301 | [1] | LABEL | KOBDecal, OK Kobelco logo Superseded by part number: YN20T01407P1 |
| 35. | YN20T01012P1 | [1] | CAUTION DECAL | KOBDecal, Caution, Rotating engine fan, hot engine parts and drive belt can cause … |
| 36. | YN20T01009P1 | [1] | LABEL | KOBDecal, Warning, Rotating parts can cause personal injury… Superseded by part number: ZL11N05204 |
| 37. | YN20T01010P1 | [1] | LABEL | KOBDecal, Warning, Steam of hot coolant can cause injury or blindness… Superseded by part number: ZL11N00404 |
| 38. | YN20T01001P1 | [1] | LABEL | KOBDecal, Warning, Prevent Batter Explosion … |
| 39. | YN20T01017P1 | [1] | LABEL | KOBDecal, Warning, Avoid Acid Burns… |
| 40. | YN20T01015P1 | [1] | LABEL | KOBDecal, Warning, Improper booster cable connections can cause an explosion … Superseded by part number: YN20T01015P2 |
| 41. | 2432P3383 | [1] | LABEL | KOBDecal, Warning, Hydraulic oil can be hot after machine operation. Allow… |
| 42. | 2432P3379 | [1] | LABEL | KOBDecal, Notice, Lack of Hydraulic Oil will cause damage to Main Hydraulic pump… |
| 43. | YN20T01050P1 | [1] | LABEL | KOBDecal, Lever Control Unlock and Control Lockout Superseded by part number: ZL11N04204 |
| 44. | 24105J7468 | [1] | DRAWING, PAINTING | |
| 45. | YN20T01047P1 | [1] | LABEL | KOBDecal, Warning, When you operate a control lever and/or travel pedal with … |
| 46. | YN20T01076P1 | [1] | TYPE PLATE | KOBDecal, Kobelco Logo (42x200mm) |
| 47. | YN20T01011P1 | [1] | LABEL | KOBDecal, Warning, Accumulator contains pressurized gas. Pressurized gas … |
| 48. | 2427Z329 | [6] | SHEET | KOBAnti-Slip (300x150mm) |
| 49. | 2432P3800 | [1] | LABEL | KOB |
| 50. | 2432P4095 | [1] | LABEL | KOB |
| 51. | 2432P3801 | [1] | LABEL | KOB |
| 52. | 2432N3709 | [1] | LABEL | KOBDecal, Dozer Blade Controls |
| 53. | 2432N3710 | [1] | LABEL | |
| 54. | 2432N3711 | [1] | LABEL | |
| 58. | 2432T6111 | [1] | LABEL | KOBDecal, Warning, When servicing or repairing machine. Keep surface free of oil… |
| 61. | 2432P3055 | [1] | LABEL | KOBDecal, No Step |
| 62. | 2432Z927 | [1] | LABEL | KOBDecal, Lubrication Labels Set (One Sheet), Not Illustrated |
| 67. | 2432T6457 | [1] | WARNING DECAL | KOBDecal, Warning, California proposition 65, Diesel … |
| 68. | YN20T01220P1 | [1] | LABEL | KOBDecal, Caution, Engine may be hot which could cause burns… Superseded by part number: ZL11N00504 |
| 69. | YN20T01221P1 | [2] | DANGER DECAL | KOBDecal, Danger, Do not use counterweight lifting eyes to lift whole machine… |
| 70. | 2432P3617D1 | [1] | LABEL | KOBBlack Strip 20x1524mm (5ft) |
| 74. | 2432T6573 | [1] | LABEL | KOBDecal, Hydraulic Oil |
| 75. | 2432T6574 | [1] | LABEL | KOBDecal, Warning, This machine is equipped with a grid air heater. Do not use … |
