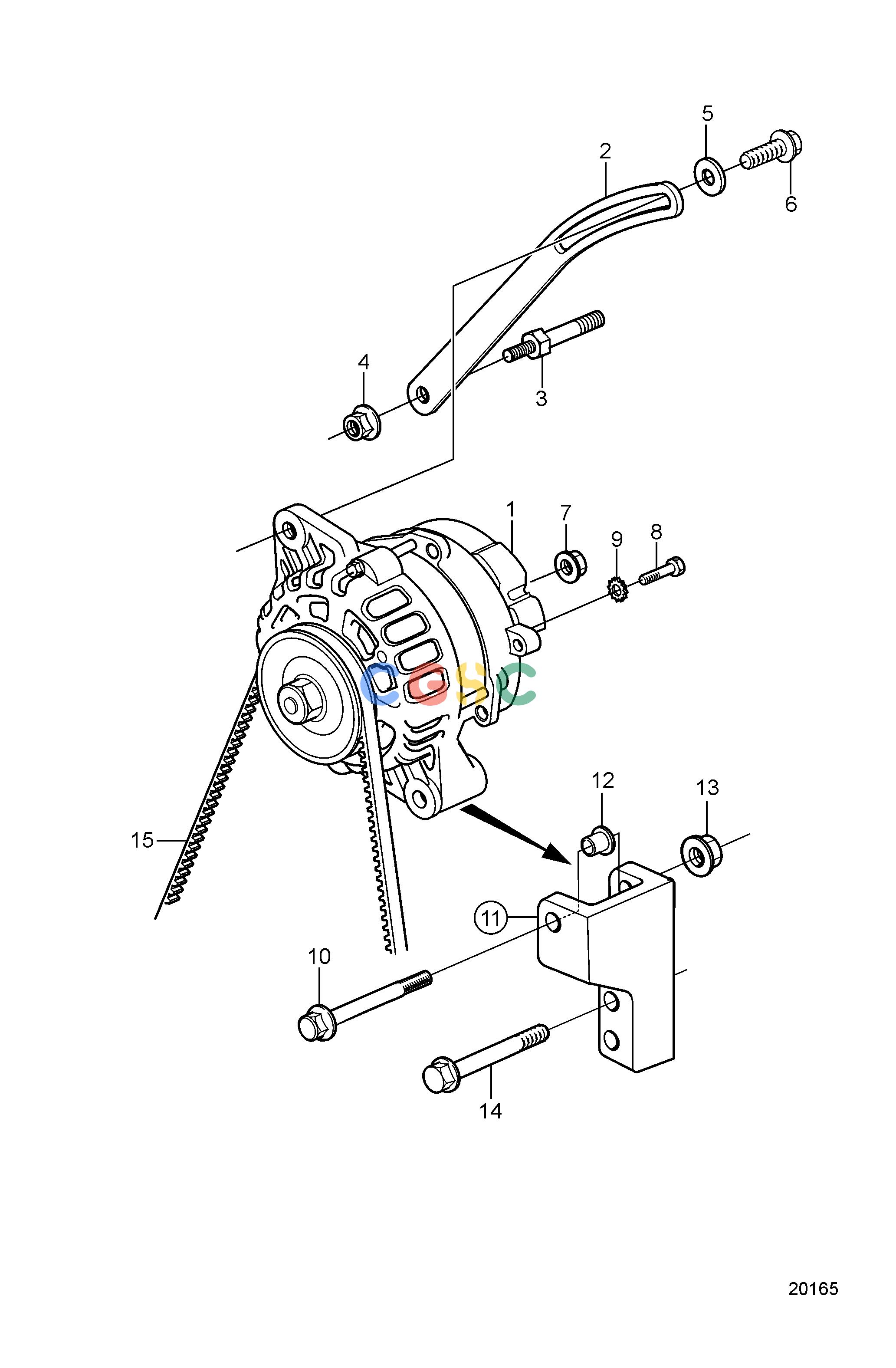

沃尔沃零件查询5.0GL-F; 5.0GL-FFElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3862612
|
[1] |
Alternator
|
|
| 2. |
3855600
|
[1] |
Tensioner
|
|
| 3. |
3856147
|
[1] |
Stud
|
|
| 4. |
3853403
|
[1] |
Nut retainer
|
|
| 5. |
3852054
|
[1] |
Washer
|
|
| 6. |
3857146
|
[1] |
Flange screw
|
|
| 7. |
945408
|
[1] |
Flange nut
|
|
| 8. |
3852208
|
[1] |
Screw
|
|
| 9. |
3852520
|
[1] |
Washer
|
|
| 10. |
3853367
|
[1] |
Flange screw
|
|
| 11. |
3861465
|
[1] |
Bracket
|
|
| 12. |
3854579
|
[2] |
Bushing
|
|
| 13. |
3857181
|
[1] |
Flange lock nut
|
|
| 14. |
3853547
|
[2] |
Flange screw
|
|
| 15. |
978547
|
[1] |
V-belt
|
|
