神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (07-009[02]) - LOWER HYDRAULICS LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

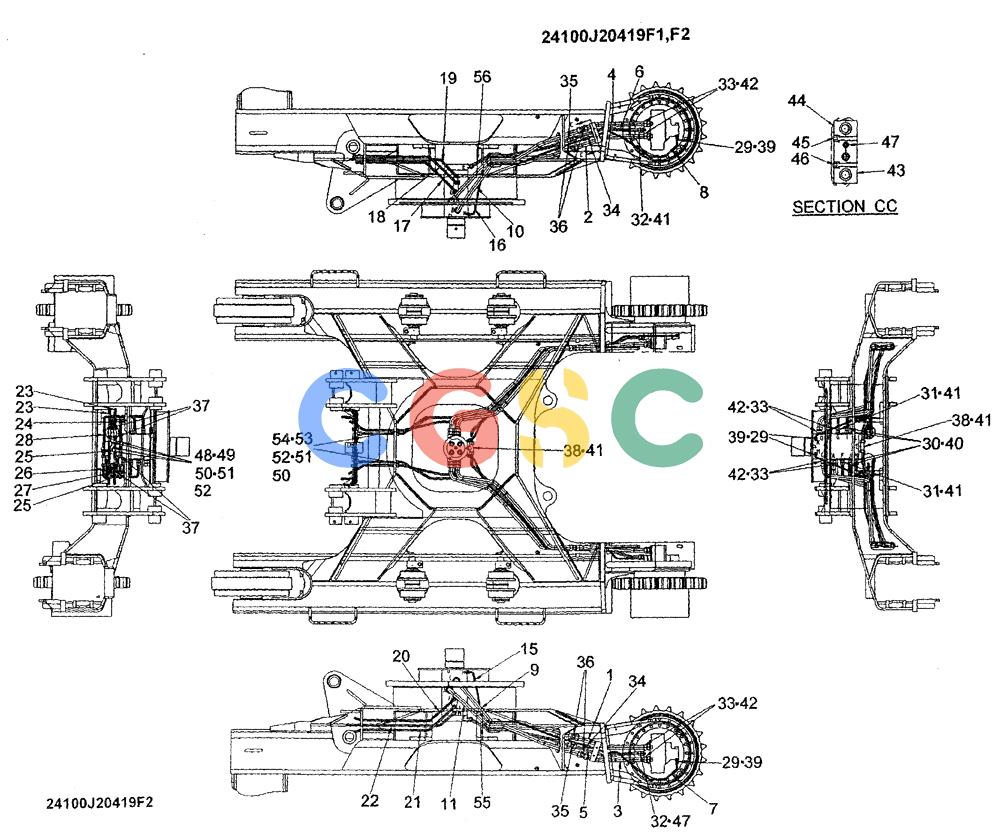

| . . | 24100J20419F1 | [1] | HYD LINES, LOWER (for Swivel 24100J20523F1 | |
| . . | 24100J20419F2 | [1] | HYD LINES, LOWBR (for Swivel 24100J20523F2 | |
| 1. | YM02HU1025P1 | [1] | TUBE | KOB |
| 2. | YM02HU1026P1 | [1] | TUBE | KOB |
| 3. | YM02HU1027P1 | [1] | TUBE | KOB |
| 4. | YM02HU1028P1 | [1] | TUBE | KOB |
| 5. | YM02HU1029P1 | [1] | TUBE | KOB |
| 6. | YM02HU1030P1 | [1] | TUBE | KOB |
| 7. | YM02HU1031P1 | [1] | TUBE | KOB |
| 8. | YM02HU1032P1 | [1] | TUBE | KOB |
| 9. | YM02HU1033P1 | [1] | TUBE | KOB |
| 10. | YM02HU1034P1 | [1] | TUBE | KOB |
| 11. | YM02HU1035P1 | [1] | TUBE | KOB |
| 12. | YM02HU1036P1 | [1] | TUBE | KOB |
| 13. | YM02HU1037P1 | [1] | TUBE | KOBF1 ONLY |
| 14. | YM02HU1038P1 | [1] | TUBE | KOBF1 ONLY |
| 15. | YM02HU1039P1 | [1] | TUBE | KOB |
| 16. | YM02HU1040P1 | [1] | TUBE | KOB |
| 17. | YM02HU1046P1 | [1] | TUBE | KOB |
| 18. | YM02HU1047P1 | [1] | TUBE | KOB |
| 19. | YM02HU1048P1 | [1] | TUBE | KOB |
| 20. | YM02HU1049P1 | [1] | TUBE | KOB |
| 21. | YM02HU1050P1 | [1] | TUBE | KOB |
| 22. | YM02HU1051P1 | [1] | TUBE | KOB |
| 23. | YM02HU1052P1 | [2] | TUBE | KOB |
| 24. | YM02HU1053P1 | [1] | TUBE | KOB |
| 25. | YM02HU1054P1 | [2] | TUBE | KOB |
| 26. | YM02HU1055P1 | [1] | TUBE | KOB |
| 27. | YM02HU1057P1 | [1] | TUBE | KOB |
| 28. | YM02HU1059P1 | [1] | TUBE | KOB |
| 29. | ZA23F10004 | [4] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 30. | ZA23F15006 | [4] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 31. | ZA23F15008 | [2] | HYD CONNECTOR | KOB |
| 32. | ZA23F18008 | [2] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 33. | ZA23F28016 | [8] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 34. | ZA23B10000 | [2] | HYD CONNECTOR | KOBM16x1.50x50mm Long |
| 35. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 36. | ZA23B28000 | [4] | CONNECTION | KOBM36x1.50x43mm Long |
| 37. | ZA53B15000 | [4] | TEE | KOB |
| 38. | 2444Z2887 | [1] | TEE | KOB |
| 39. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 40. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 41. | ZD12P01800 | [5] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 42. | ZD12P02900 | [8] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 43. | 2432T4755 | [2] | CLAMP | KOB |
| 44. | 2432T4756 | [2] | CLAMP | KOB |
| 45. | ZS23C10045 | [4] | SCREW,Hex Socket Head, M10 x 45mm | KOBM10x1.50x45mm |
| 46. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 47. | 2414T2890 | [2] | PROTECTOR | KOBID 10 x OD 14 x 35mm Long |
| 48. | 2432T1773 | [4] | CLAMP | KOB |
| 49. | ZS18C08065 | [4] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| 50. | ZN18C08007 | [6] | NUT | KOBM08x1.25mm |
| 51. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 52. | ZW16K08000 | [6] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 53. | ZC36X15009 | [4] | CLAMP | KOB |
| 54. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 55. | YM02HU1070P1 | [1] | TUBE | KOBF2 ONLY |
| 56. | YM02HU1071P1 | [1] | TUBE | KOBF2 ONLY |
