卡特零件查询（730） 8Y-5904: ARMREST GP
广数供应链运营团队, 15 02月, 2025，浏览：
936 次

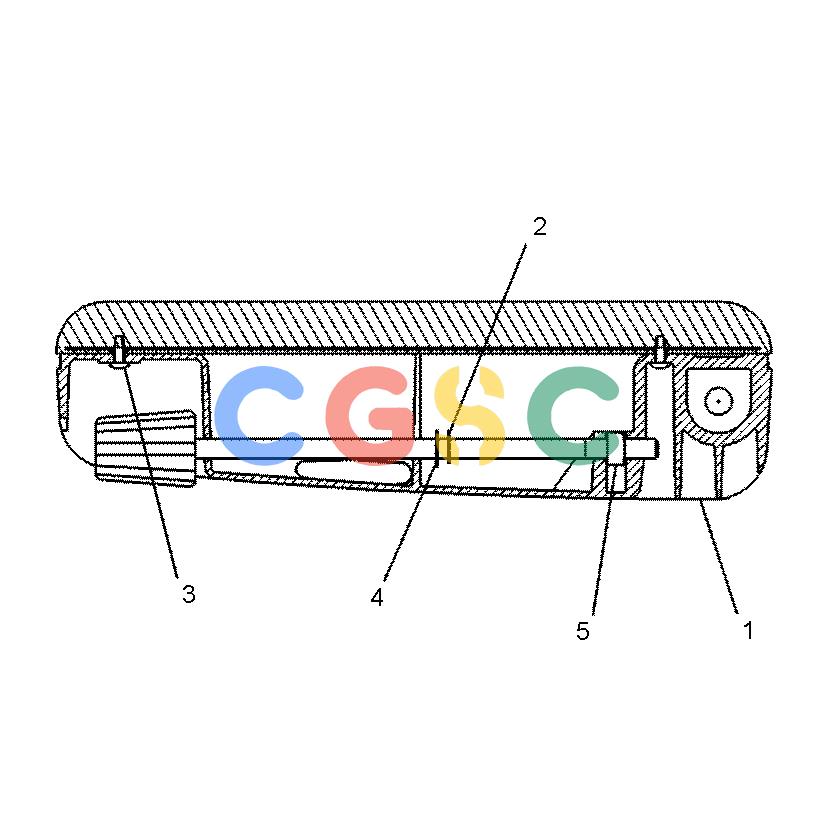

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8Y-5906 | [1] | BASE-ARMREST(LH) | |
| 2. | 8S-7803L | [1] | RING-RETAINING | |
| 3. | 6V-2687J | [4] | SCREW-PAN HEAD(10-24X1-IN) | |
| 4. | 8T-8641L | [1] | WASHER(9.8X16X0.8-MM THK) | |
| 5. | 3E-4312L | [1] | NUT-SQUARE(3/8-16-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 8Y-5988J | [1] | KIT-CUSHION(ARMREST) | |
| | | | (ALSO INCLUDES CUSHION AS) |
| | 8Y-6028L | [1] | KIT-ADJUSTER(ARMREST) | |
| | | | (ALSO INCLUDES KNOB AS & SPRING) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
