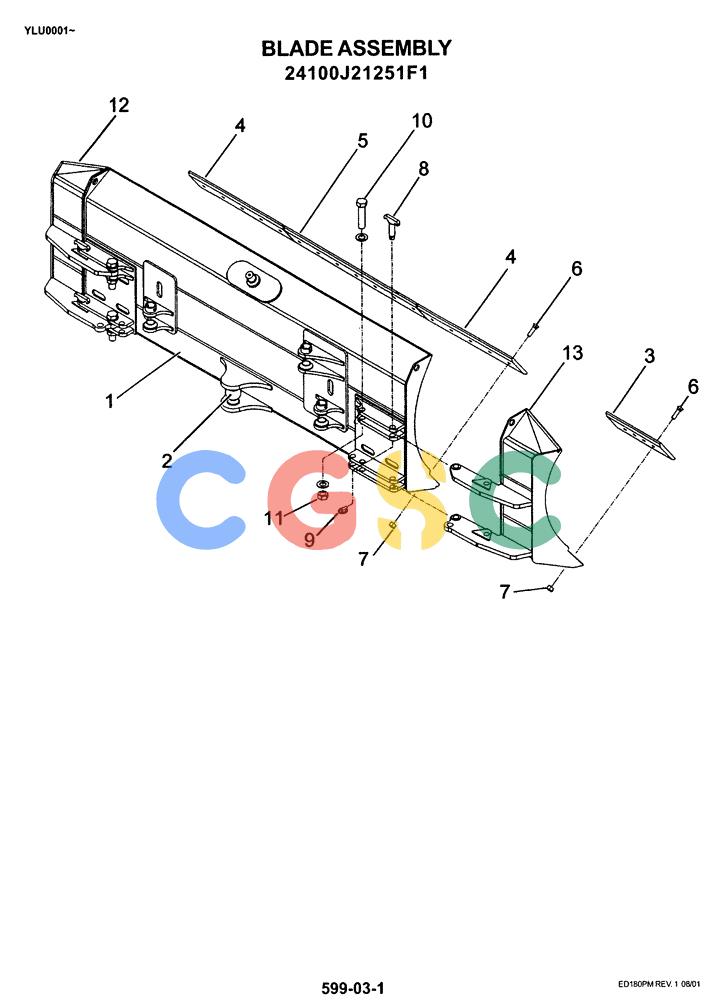

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (07-014) - BLADE ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J21251F1 | [1] | DOZER BLADE | KOB Superseded by part number: AW206-004-017 |
| 1. | 2412J1618 | [1] | DOZER BLADE | KOB Superseded by part number: AW206-004-017 |
| 2. | 2425R431 | [1] | | |
| 3. | 2412P1058 | [2] | CUTTING EDGE | KOB Superseded by part number: AW530-047-055 |
| 4. | AW541-019-170 | [2] | EDGE | KOB |
| 5. | AW541-019-072 | [1] | EDGE | KOB |
| 6. | 2420T9274 | [25] | Plow -- 3/4\"-10 UNC x 2-1/4 in Long | Plow -- 3/4"-10 UNC x 2-1/4 in Long |
| 7. | 2420T9279 | [25] | 3/4\"-10 UNC | 3/4"-10 UNC |
| 8. | 2419P4488 | [4] | PIN | KOB1.25" Dia. x 4-1/4" Long Superseded by part number: AW717-175-092 |
| 9. | 2419T8168 | [4] | PIN | KOBRetainer -- OD 11 x 56mm Long Superseded by part number: AW545-008-005 |
| 10. | 2420T9275 | [4] | | |
| 11. | 2420T9280 | [4] | | |
| 12. | AW239-700-003 | [1] | BLADE | KOBLH Wing |
| 13. | AW239-700-002 | [1] | BLADE | KOBRH Wing |
