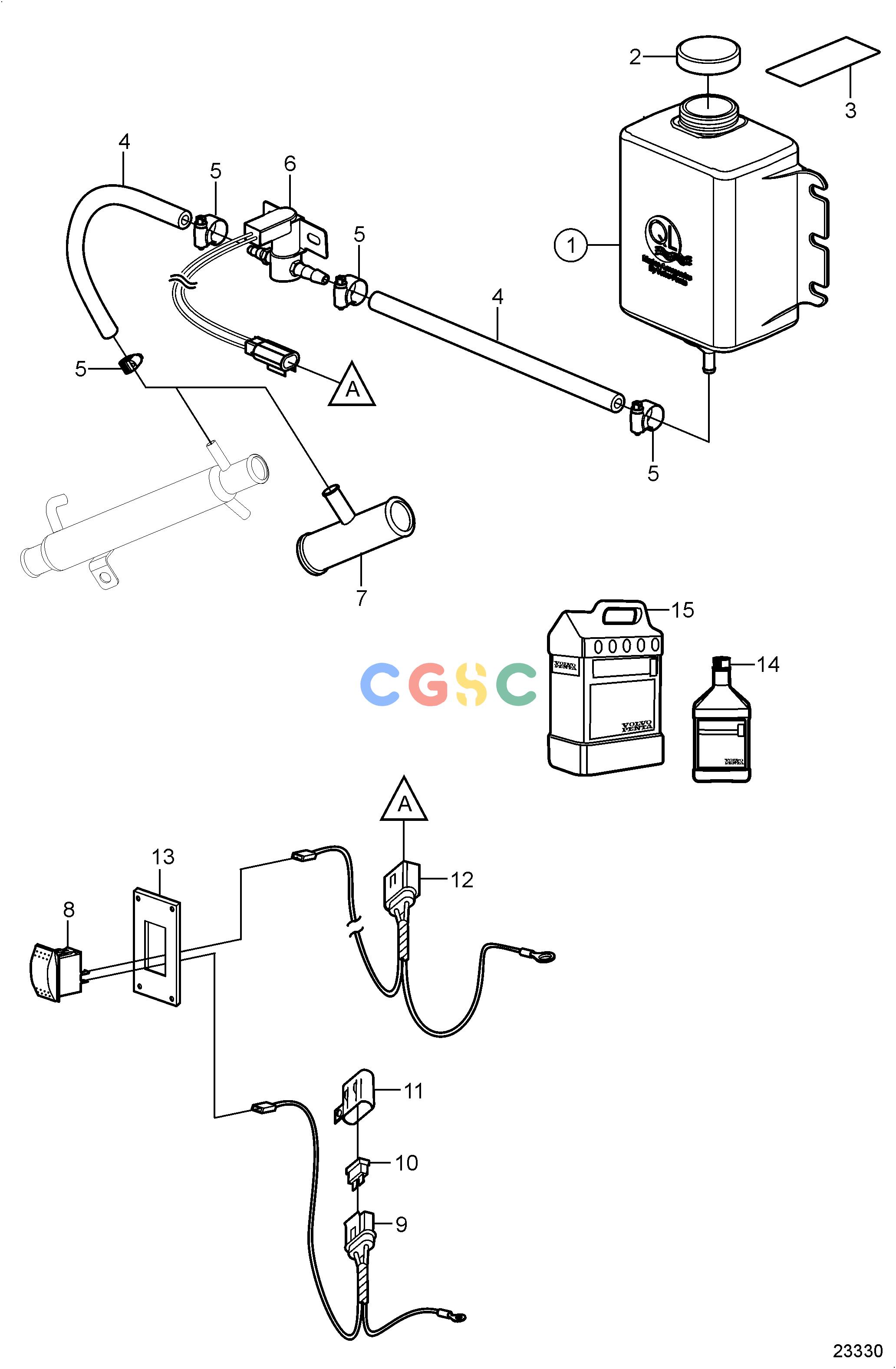

沃尔沃零件查询5.0GL-H; 5.0GL-HFCooling SystemNeutra-Salt™EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
439 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808877
|
[1] |
Reservoir
|
|
| 2. |
|
|
|
not sold separately
|
| 3. |
7741899
|
[1] |
Decal
|
|
| 4. |
3587529
|
[1] |
Hose
|
Cut
|
| 5. |
3860413
|
[4] |
Hose clamp
|
|
| 6. |
3808911
|
[1] |
Solenoid valve
|
|
| 7. |
3589414
|
[1] |
T-nipple
|
25.4mm
|
| 7. |
3589415
|
[1] |
T-nipple
|
31.8mm
|
| 8. |
3862491
|
[1] |
Switch
|
|
| 9. |
3862489
|
[1] |
Cable harness
|
|
| 10. |
983966
|
[1] |
Fuse
|
|
| 11. |
8072808
|
[1] |
Cover
|
|
| 12. |
3862490
|
[1] |
Cable harness
|
|
| 13. |
3862899
|
[1] |
Contact plate
|
Black
|
| 13. |
3862898
|
[1] |
Contact plate
|
White
|
| 13. |
3862900
|
[1] |
Contact plate
|
Woodgrain
|
| 14. |
41103103
|
[1] |
Neutralizing agent
|
1 quart (946ml)
|
| 15. |
41103102
|
[1] |
Neutralizing agent
|
1 gallon (3,78L)
|
