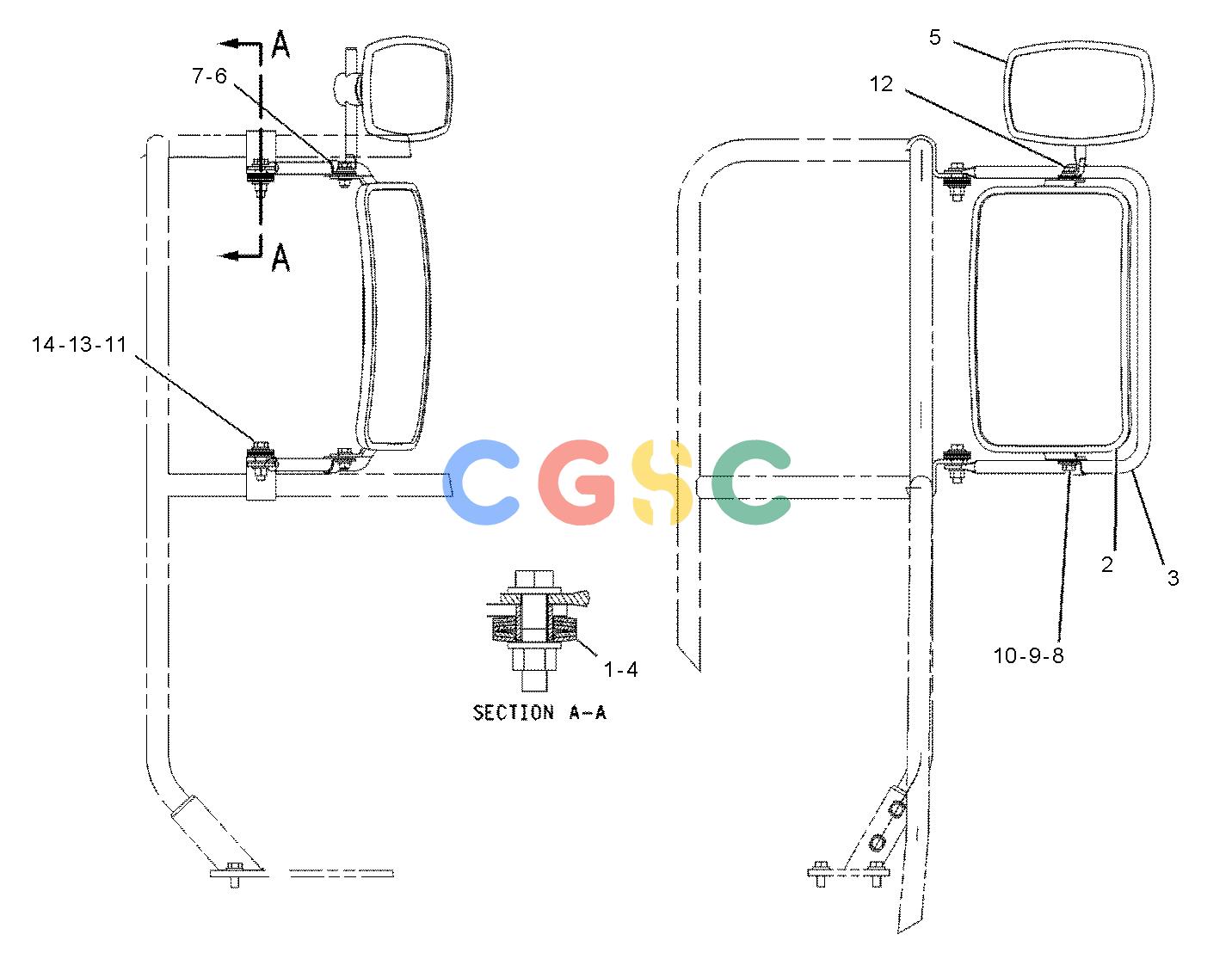

卡特零件查询（730） 149-0150: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-8926 | [20] | WASHER(18.3X40X3.15-MM THK) | |
| 2. | 5P-6879 | [2] | MIRROR | |
| 3. | 7U-1903 | [2] | SUPPORT | |
| 4. | 108-7638 | [4] | SPACER(13.3X17.3X17.4-MM THK) | |
| 5. | 199-7644Y | [1] | MIRROR GP-REAR VIEW | |
| 6. | 8T-1887 | [4] | CLIP(SLOT) | |
| 7. | 8T-1888 | [4] | CLIP(TAB) | |
| 8. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 10. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 12. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 13. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
