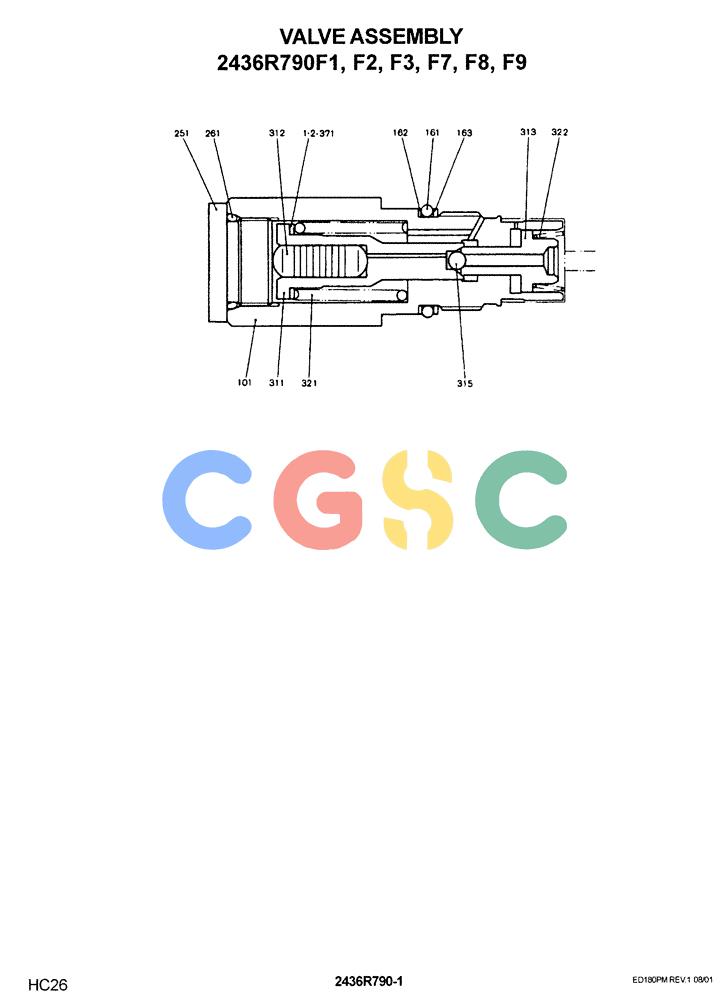

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-013) - VALVE ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R790F1 | [1] | VALVE ASSY (175 kgf/cm2) | |
| . . | 2436R790F2 | [1] | (200 kgf/cm2) | (200 kgf/cm2) |
| . . | 2436R790F3 | [1] | VALVE | KOB(210 kgf/cm2) Superseded by part number: 2436R790F8 |
| . . | 2436R790F7 | [1] | X | KOB(200 kgf/cm2) |
| . . | 2436R790F8 | [1] | VALVE | KOB(210 kgf/cm2) |
| . . | 2436R790F9 | [1] | VALVE ASSY (175 kgf/cm2) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM, F2 & F7 ONLY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM, F3 & F8 ONLY |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 162. | 2436U580S168 | [1] | BACK-UP RING | KOB |
| 163. | ZD85P02000 | [1] | RING | KOBBack-Up -- ID 20 x OD 24 x Th 1.25mm |
| 251. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 261. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 315. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 371. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM, F1 & F9 ONLY |
