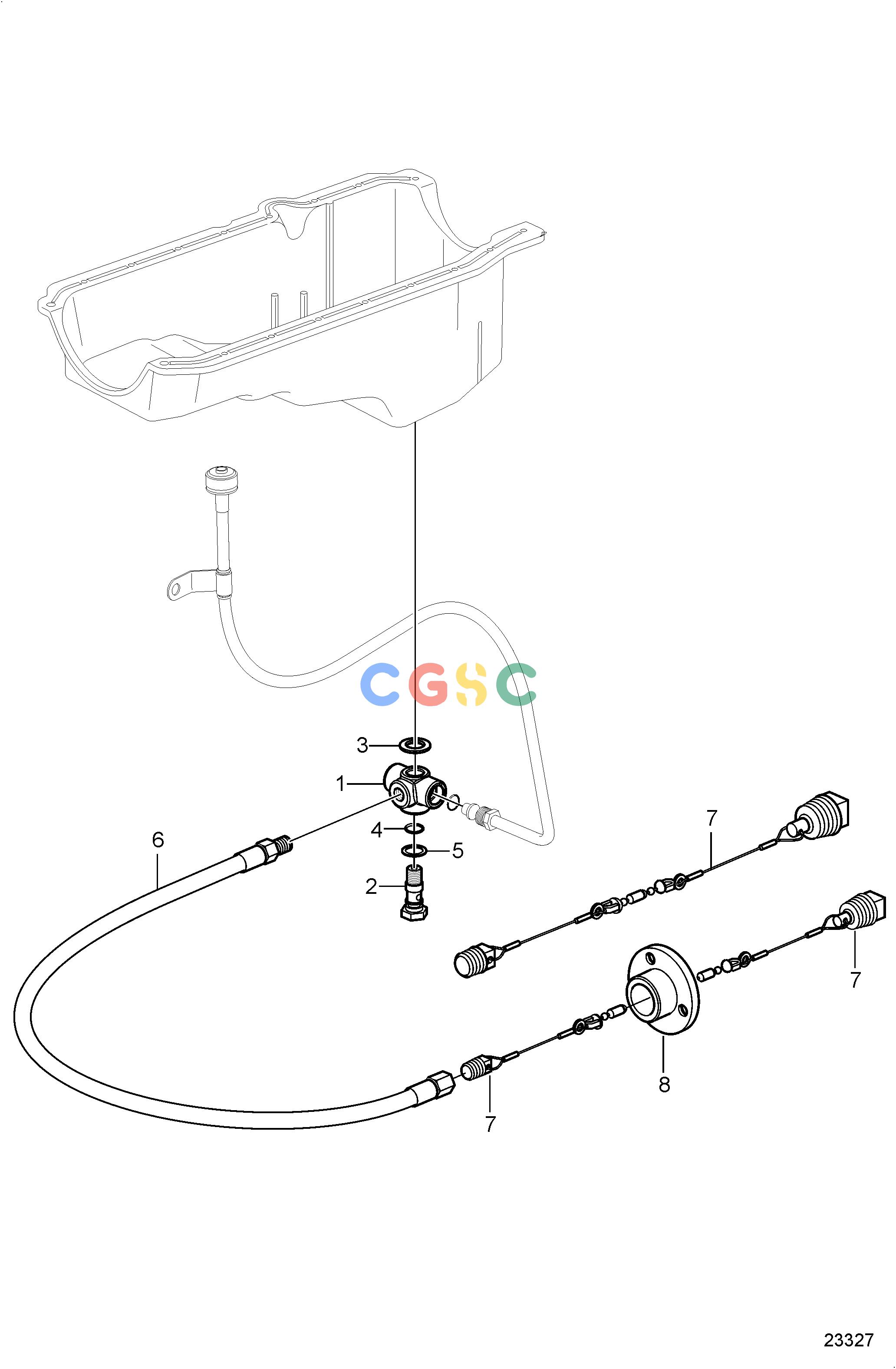

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3587787 | [1] | Fitting | |
| 2. | 888958 | [1] | Retainer | |
| 3. | 3851981 | [1] | Washer | |
| 4. | 3853674 | [1] | O-ring | |
| 5. | 3852007 | [1] | Washer | |
| 6. | 888964 | [1] | Hose assembly | |
| 7. | 888972 | [1] | Lock spring | |
| 8. | 888970 | [1] | Fitting |
广数供应链运营团队, 15 02月, 2025，浏览： 1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3587787 | [1] | Fitting | |
| 2. | 888958 | [1] | Retainer | |
| 3. | 3851981 | [1] | Washer | |
| 4. | 3853674 | [1] | O-ring | |
| 5. | 3852007 | [1] | Washer | |
| 6. | 888964 | [1] | Hose assembly | |
| 7. | 888972 | [1] | Lock spring | |
| 8. | 888970 | [1] | Fitting |
