凯斯零件查询(LB334S) - BALER (9/12-) (27.500.020) - TANDEM AXLE WITHOUT BRAKES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
695 次

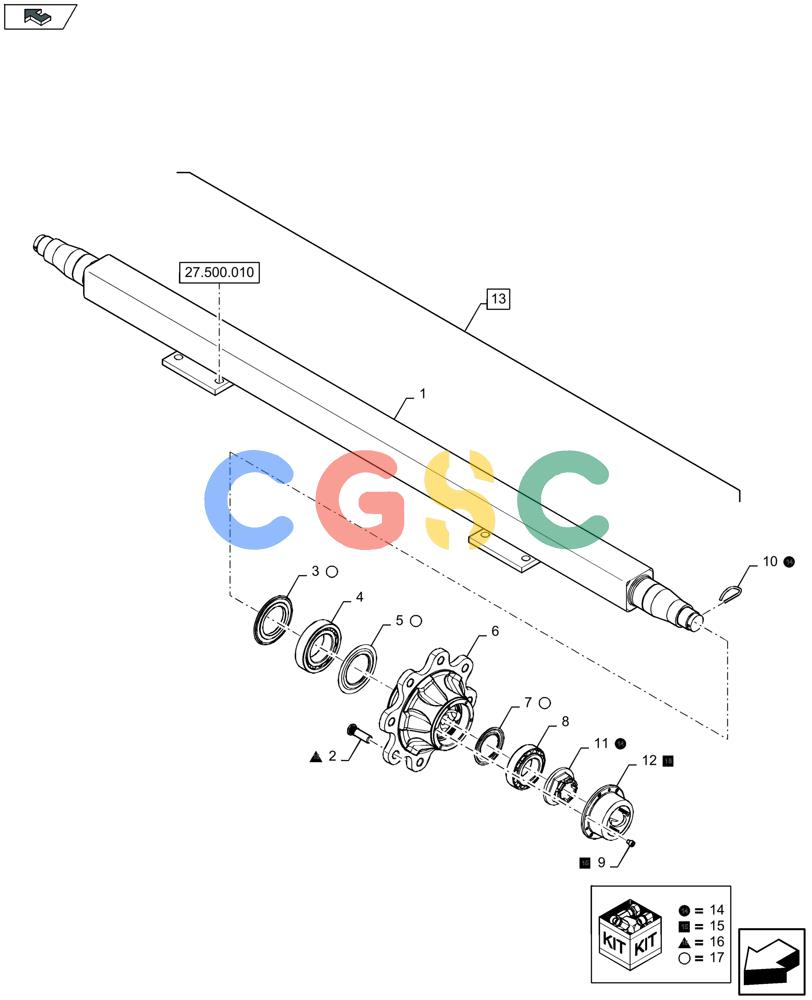

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84531557
|
[1] |
AXLE
|
ZED
|
| 1. |
84521821
|
[1] |
AXLE
|
ZED
|
| 2. |
84563585
|
[16] |
STUD
|
ZED
, Serial Range: -C084
|
| 2. |
47456225
|
[16] |
STUD
|
ZED
, Start Serial: D085
|
| 3. |
84521823
|
[2] |
OIL SEAL
|
ZED
|
| 4. |
84100485
|
[2] |
BALL BEARING,60mm ID x 110mm OD x 29.75mm W
|
ZED
Superseded by part number: 87622924
|
| 5. |
84100484
|
[2] |
RING
|
ZED
|
| 6. |
84521825
|
[2] |
HUB
|
ZED
|
| 7. |
84100482
|
[2] |
RING
|
ZED
|
| 8. |
84100483
|
[2] |
BALL BEARING,75mm ID x 130mm OD x 33.25mm W
|
ZED
Superseded by part number: 26800210
|
| 9. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 10. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 11. |
84521828
|
[2] |
NUT
|
ZED
Superseded by part number: 84100486
|
| 12. |
84521831
|
[2] |
COVER
|
ZED
|
| 13. |
84531530
|
[1] |
FRONT AXLE
|
ZED
Incl 1 - 12, 14 - 17
|
| 13. |
84524616
|
[1] |
FRONT AXLE
|
ZED
Incl 1 - 12, 14 - 17
|
| 14. |
84521844
|
[1] |
CROWN NUT
|
ZED
Incl 10, 11
|
| 15. |
84521845
|
[1] |
KIT
|
ZED
Incl 9, 12
|
| 16. |
47462798
|
[1] |
FIP KIT
|
ZED
Incl 2
|
| 17. |
84521846
|
[1] |
SEAL KIT
|
ZED
Incl 3, 5, 7
|
