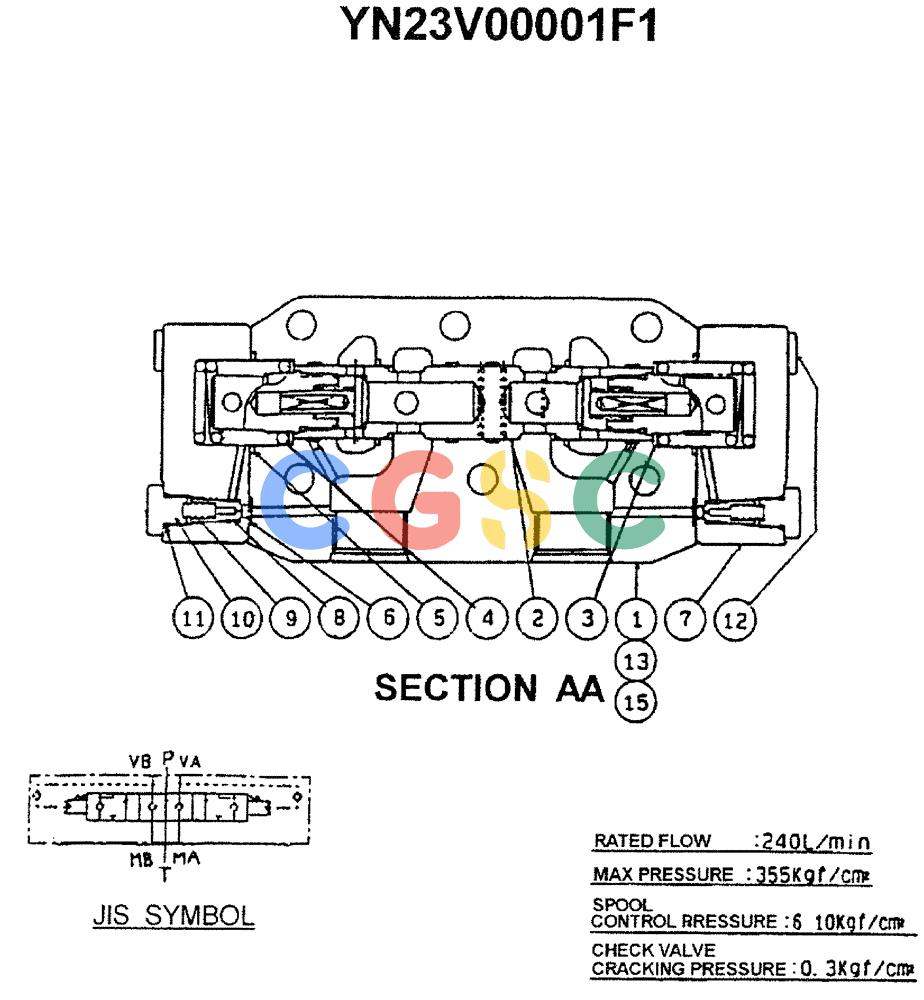

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-018[02]) - BRAKE VALVE ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN23V00001F1 | [1] | BRAKE VALVE | KOBBRAKE |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL ASSY |
| 3. | 2436U1139S3 | [2] | SPRING SEAT | KOB |
| 4. | 2436U1139S4 | [2] | SPRING | KOB |
| 5. | ZD12G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 6. | ZD12P00900 | [3] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 7. | YN23V00001S007 | [2] | COVER | KOB |
| 8. | 2436U1384S8 | [2] | VALVE | KOB |
| 9. | 2483U223S4 | [2] | SPRING | KOB |
| 10. | 2436U1139S10 | [2] | PLUG | KOB |
| 11. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 12. | ZS23C12045 | [8] | SCREW,Hex Socket Head, M12 x 45mm | KOBM12x1.75x45mm Superseded by part number: ZS28C12045 |
| 13. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 14. | ZS23C12080 | [6] | SCREW,Hex Socket Head, M12 x 80mm | KOBM12x1.75x80mm |
| 15. | 2436U1317S13 | [2] | PLUG | KOB |
| 16. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 17. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 18. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
