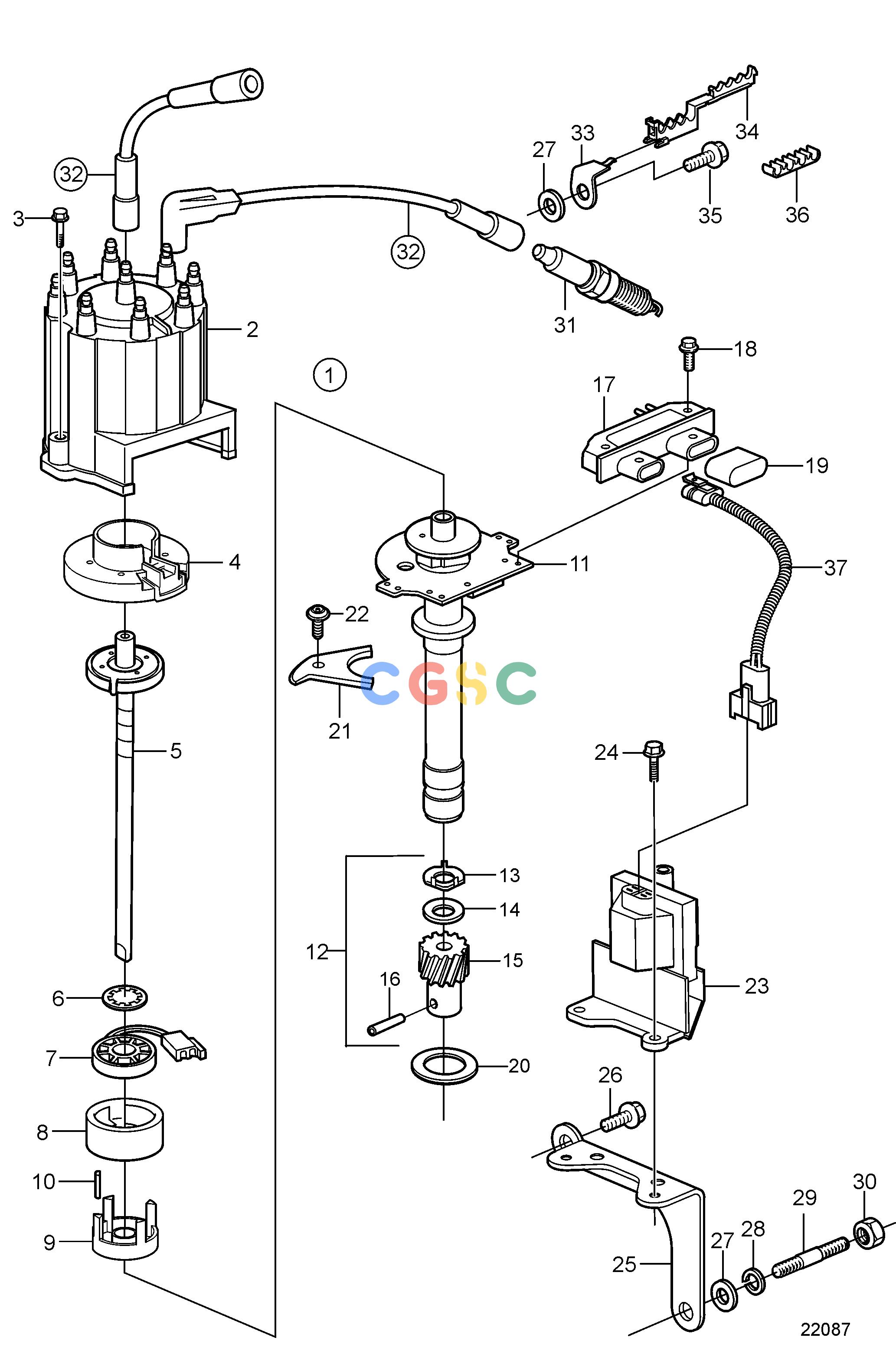

沃尔沃零件查询5.0GL-H; 5.0GL-HFIgnitionIgnitionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
710 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857449
|
[1] |
Distributor
|
|
| 2. |
3854548
|
[1] |
Distributor cap
|
|
| 3. |
3853318
|
[2] |
Screw
|
|
| 4. |
3862014
|
[1] |
Rotor
|
|
| 5. |
3855596
|
[1] |
Spindle
|
|
| 6. |
3853317
|
[1] |
Retainer
|
|
| 7. |
3854001
|
[1] |
Coil
|
|
| 8. |
3854552
|
[1] |
Shield
|
|
| 9. |
3854309
|
[1] |
Pole shoe
|
|
| 10. |
3853316
|
[1] |
Locating pin
|
|
| 11. |
|
|
|
not sold separately
|
| 12. |
3854557
|
[1] |
Repair kit
|
|
| 13. |
|
|
|
not sold separately
|
| 14. |
|
|
|
not sold separately
|
| 15. |
|
|
|
not sold separately
|
| 16. |
|
|
|
not sold separately
|
| 17. |
3854003
|
[1] |
Module
|
|
| 18. |
3853319
|
[2] |
Screw
|
|
| 19. |
3850645
|
[1] |
Cap
|
|
| 20. |
3852109
|
[1] |
Gasket
|
|
| 21. |
3852108
|
[1] |
Clamp
|
|
| 22. |
3863171
|
[1] |
Screw
|
|
| 23. |
3862167
|
[1] |
Ignition coil
|
|
| 24. |
947107
|
[2] |
Flange screw
|
|
| 25. |
3863294
|
[1] |
Bracket
|
|
| 26. |
3860582
|
[1] |
Screw
|
|
| 27. |
980933
|
[3] |
Washer
|
|
| 28. |
3852002
|
[1] |
Spring washer
|
|
| 29. |
3850571
|
[1] |
Stud
|
|
| 30. |
3852065
|
[1] |
Nut
|
|
| 31. |
3858996
|
[2] |
Kit
|
4 pack, Replaced by next part number
|
| 31. |
21467472
|
[2] |
Spark plug kit
|
4 pack
|
| 31. |
3858998
|
[1] |
Kit
|
24 pack, Replaced by next part number
|
| 31. |
21467473
|
[1] |
Kit
|
24 pack
|
| 32. |
3888326
|
[1] |
Ignition cable kit
|
|
| 33. |
3856052
|
[2] |
Bracket
|
|
| 34. |
3852619
|
[2] |
Retainer
|
|
| 35. |
3853557
|
[1] |
Screw
|
|
| 36. |
3852491
|
[2] |
Retainer
|
|
| 37. |
3854084
|
[1] |
Cable
|
|
