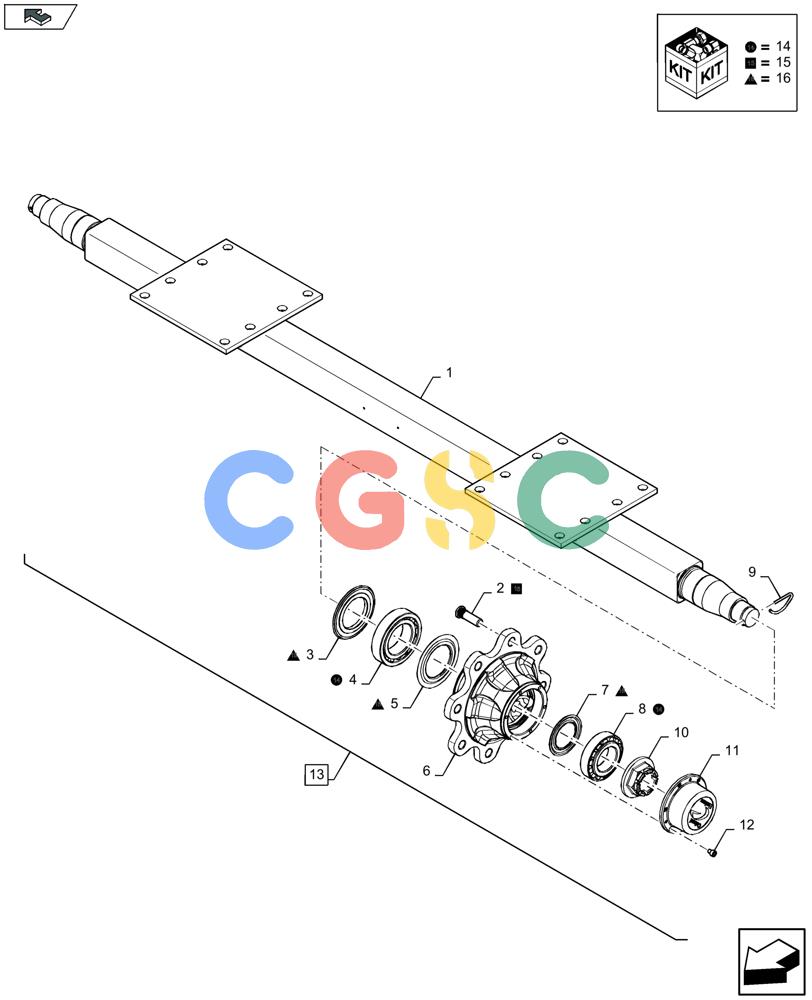

凯斯零件查询(LB334S) - BALER (9/12-) (27.550.010) - SINGLE AXLE WITHOUT BRAKES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
671 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84563671
|
[1] |
BODY
|
ZED
|
| 1. |
84587068
|
[1] |
AXLE
|
ZED
|
| 1. |
84587053
|
[1] |
AXLE
|
ZED
|
| 1. |
84587052
|
[1] |
AXLE
|
ZED
|
| 2. |
84563585
|
[16] |
STUD
|
ZED
, Serial Range: -C084
|
| 2. |
47456225
|
[16] |
STUD
|
ZED
, Start Serial: D085
|
| 3. |
84100477
|
[2] |
RING
|
ZED
Superseded by part number: 84100478
|
| 4. |
84041878
|
[2] |
TAPERED BEARING
|
ZED
Superseded by part number: 9832270
|
| 5. |
84100478
|
[2] |
RING
|
ZED
|
| 6. |
84519319
|
[2] |
HUB
|
ZED
|
| 7. |
84041877
|
[2] |
SEALING RING
|
ZED
|
| 8. |
84041879
|
[2] |
TAPERED BEARING
|
ZED
|
| 9. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 10. |
84100479
|
[2] |
NUT
|
ZED
|
| 11. |
84100510
|
[2] |
COVER
|
ZED
|
| 12. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 13. |
84206970
|
[1] |
AXLE
|
ZED
Incl 1 - 12, 14 - 16
|
| 13. |
84206965
|
[1] |
AXLE
|
ZED
Incl 1 - 12, 14 - 16
|
| 13. |
84206967
|
[1] |
AXLE
|
ZED
Incl 1 - 12, 14 - 16
|
| 13. |
84339078
|
[1] |
AXLE
|
ZED
Incl 1 - 12, 14 - 16
|
| 14. |
84521843
|
[1] |
BEARING SET
|
ZED
Incl 4, 8
|
| 15. |
47462798
|
[2] |
FIP KIT
|
ZED
Incl 2
|
| 16. |
84520485
|
[1] |
SEAL KIT
|
ZED
Incl 3, 5, 7
|
