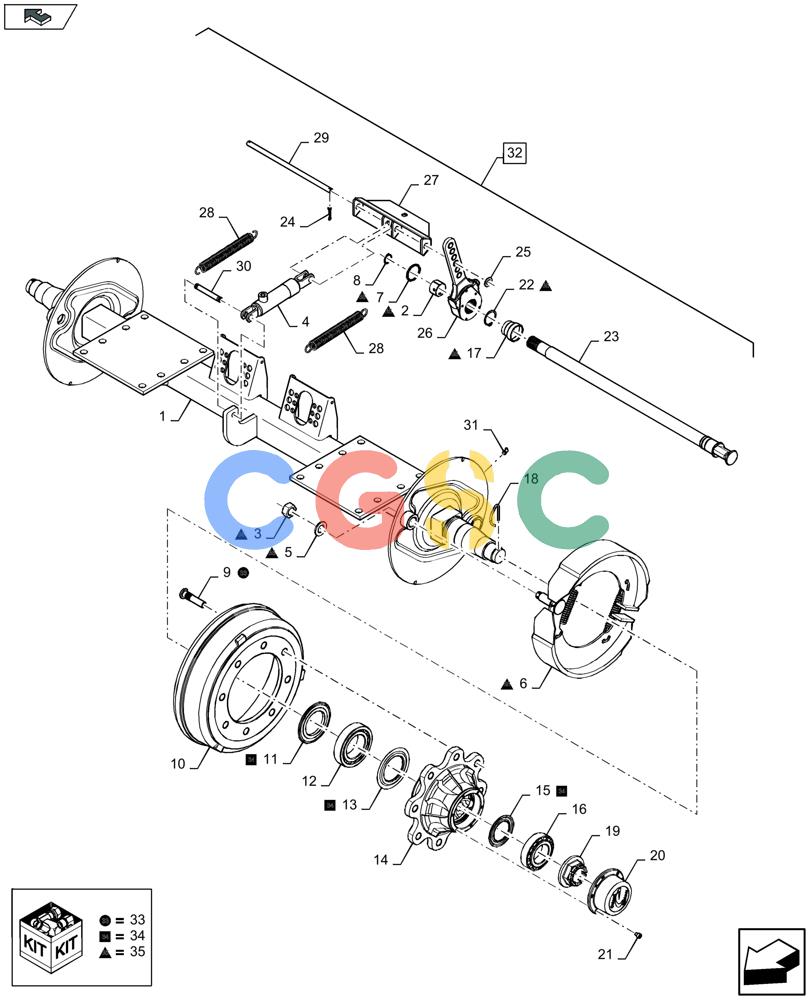

凯斯零件查询(LB334S) - BALER (9/12-) (27.550.050) - HYDRAULIC BRAKES, SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84519301
|
[1] |
SUPPORT
|
ZED
|
| 1. |
84564263
|
[2] |
DRUM BRAKE ASSY
|
ZED
|
| 1. |
84531508
|
[2] |
SUPPORT
|
ZED
|
| 2. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 3. |
100024
|
[2] |
NUT,M24 x 1.5, Cl 8
|
MKT
|
| 4. |
84212728
|
[2] |
PISTON
|
ZED
|
| 5. |
84220999
|
[2] |
LOCK WASHER
|
ZED
|
| 6. |
84519724
|
[2] |
BRAKE ASSY.
|
ZED
|
| 7. |
84519730
|
[1] |
O-RING,2.62mm Thk x 37.77mm ID
|
ZED
|
| 8. |
84045556
|
[2] |
CIRCLIP
|
ZED
|
| 9. |
84563584
|
[16] |
STUD
|
ZED
, Serial Range: -C084
|
| 9. |
84519356
|
[16] |
STUD
|
ZED
, Serial Range: -C084 Superseded by part number: 84563598
|
| 9. |
47456247
|
[16] |
STUD
|
ZED
, Start Serial: D085
|
| 10. |
84519337
|
[2] |
BRAKE DRUM
|
ZED
|
| 11. |
84100477
|
[2] |
RING
|
ZED
Superseded by part number: 84100478
|
| 12. |
84041878
|
[2] |
TAPERED BEARING
|
ZED
Superseded by part number: 9832270
|
| 13. |
84100478
|
[2] |
RING
|
ZED
|
| 14. |
84519319
|
[2] |
HUB
|
ZED
|
| 15. |
84041877
|
[2] |
SEALING RING
|
ZED
|
| 16. |
84041879
|
[2] |
TAPERED BEARING
|
ZED
|
| 17. |
84519464
|
[2] |
HOOD
|
ZED
|
| 18. |
84212727
|
[2] |
COTTER PIN
|
ZED
|
| 19. |
84100479
|
[2] |
NUT
|
ZED
|
| 20. |
84100510
|
[2] |
COVER
|
ZED
|
| 21. |
14301931
|
[12] |
HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd
|
LEC
|
| 22. |
300632
|
[2] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 23. |
84519417
|
[2] |
CAMSHAFT
|
ZED
|
| 23. |
84564267
|
[2] |
CAMSHAFT
|
ZED
|
| 24. |
130004
|
[2] |
COTTER PIN,2.9mm OD x 31.4mm OAL
|
WIN
|
| 25. |
140069
|
[2] |
WASHER,M15 x 24 x 2 Thk
|
ZED
|
| 26. |
84519397
|
[2] |
ADJUSTER
|
ZED
|
| 26. |
47438942
|
[2] |
ADJUSTER
|
ZED
, Start Serial: D085
|
| 27. |
84053856
|
[1] |
LEVER
|
ZED
|
| 28. |
84014241
|
[2] |
SPRING
|
ZED
|
| 29. |
84045542
|
[1] |
PIN
|
ZED
|
| 30. |
84014244
|
[1] |
PIN
|
ZED
|
| 31. |
150024
|
[2] |
LUBE NIPPLE,45 Degree, M8 x 1
|
NH
|
| 32. |
84206975
|
[1] |
AXLE
|
ZED
Incl 1 - 31, 33 - 35
|
| 32. |
84206977
|
[1] |
AXLE
|
ZED
Incl 1 - 31, 33 - 35
|
| 32. |
84208249
|
[1] |
AXLE
|
ZED
Incl 1 - 31, 33 - 35
|
| 33. |
47462799
|
[2] |
FIP KIT
|
ZED
Incl 9
|
| 34. |
84520485
|
[1] |
SEAL KIT
|
ZED
Incl 11, 13, 15
|
| 35. |
84520487
|
[2] |
BRAKE
|
ZED
Incl 2, 3, 5 - 7, 17, 22
|
