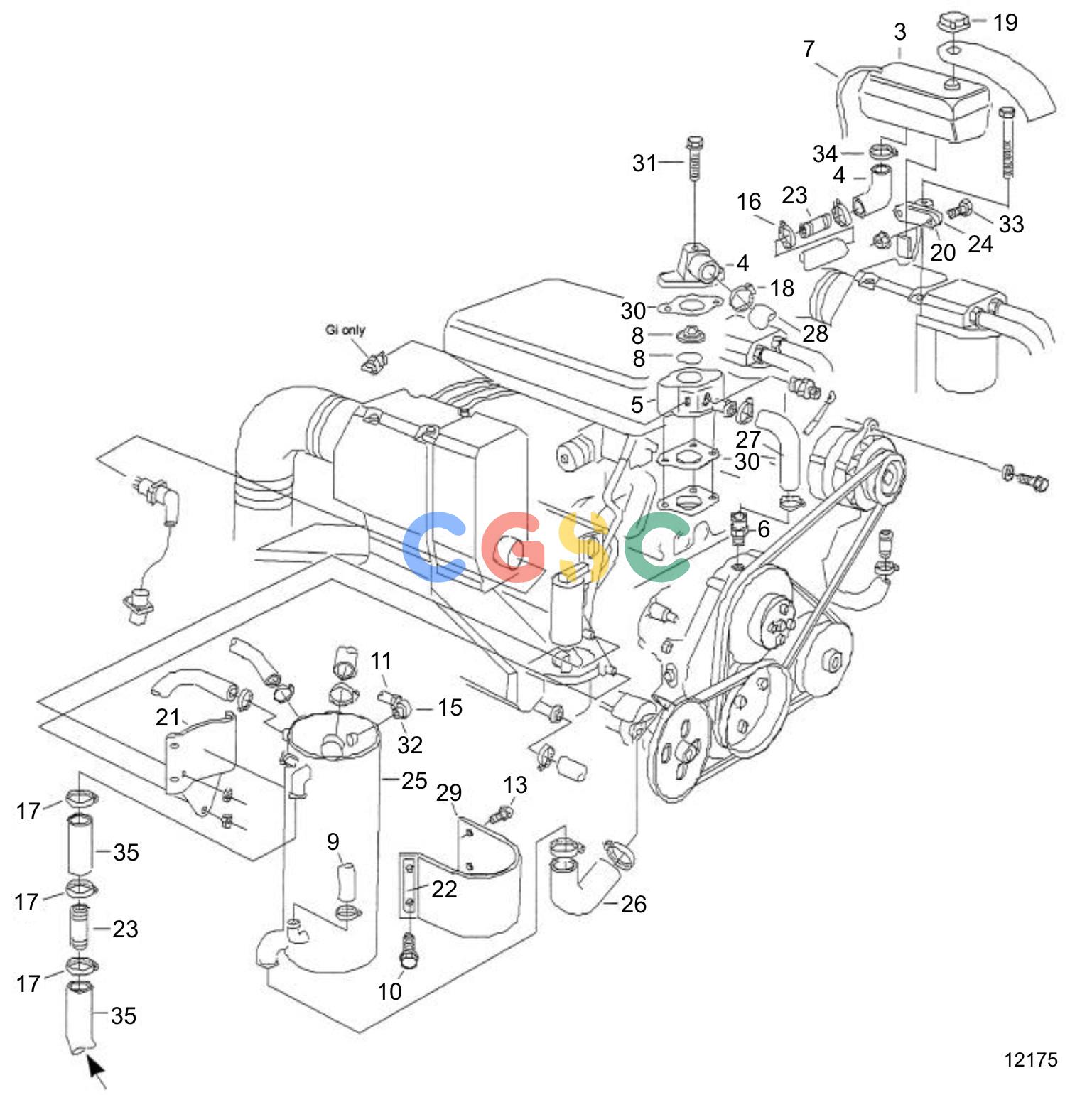

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCECooling SystemFreshwater CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857596
|
[1] |
Freshwater cooling k
|
5.0GL/Gi; 5.7GS/GSi
|
| 1. |
3852602
|
[2] |
Hose clamp
|
|
| 2. |
857500
|
[1] |
Hose
|
|
| 3. |
861105
|
[1] |
Expansion tank
|
|
| 4. |
3851384
|
[1] |
Thermostat housing
|
|
| 5. |
3851383
|
[1] |
Thermostat housing, lower
|
|
| 6. |
943268
|
[1] |
Hose nipple
|
|
| 7. |
942700
|
[1] |
Hose
|
As required
|
| 8. |
875788
|
[1] |
Thermostat kit
|
|
| 9. |
943369
|
[1] |
Rubber hose
|
As required
|
| 10. |
946173
|
[4] |
Flange screw
|
|
| 11. |
945652
|
[6] |
Hose clamp
|
|
| 12. |
948645
|
[6] |
Flange lock nut
|
Not shown
|
| 13. |
945444
|
[2] |
Flange screw
|
|
| 14. |
940119
|
[2] |
Hexagon nut
|
|
| 15. |
961611
|
[1] |
Hose nipple
|
|
| 16. |
961666
|
[3] |
Hose clamp
|
|
| 17. |
961667
|
[4] |
Hose clamp
|
|
| 18. |
961670
|
[2] |
Hose clamp
|
|
| 19. |
1674083
|
[1] |
Pressure cap
|
|
| 20. |
3857405
|
[1] |
Bracket
|
|
| 21. |
3851393
|
[1] |
Bracket
|
|
| 22. |
3851396
|
[1] |
Bar
|
|
| 23. |
3851413
|
[2] |
Connection pipe
|
|
| 24. |
3857422
|
[1] |
Bracket
|
|
| 25. |
3851586
|
[1] |
Heat exchanger
|
|
| 26. |
3851591
|
[1] |
Hose
|
|
| 27. |
3851592
|
[1] |
Hose
|
|
| 28. |
3851762
|
[1] |
Hose
|
|
| 29. |
3851395
|
[1] |
Brace
|
|
| 30. |
3852111
|
[2] |
Gasket
|
|
| 31. |
3853401
|
[2] |
Flange screw
|
|
| 32. |
3851598
|
[1] |
Fitting
|
|
| 33. |
950004
|
[2] |
Cross recessed screw
|
|
| 34. |
3855719
|
[1] |
Attaching clamp
|
|
| 35. |
943367
|
[1] |
Rubber hose
|
As required
|
| 35. |
3857494
|
[1] |
Cable harness
|
Not shown
|
| 35. |
3853598
|
[1] |
Elbow
|
Not shown
|
