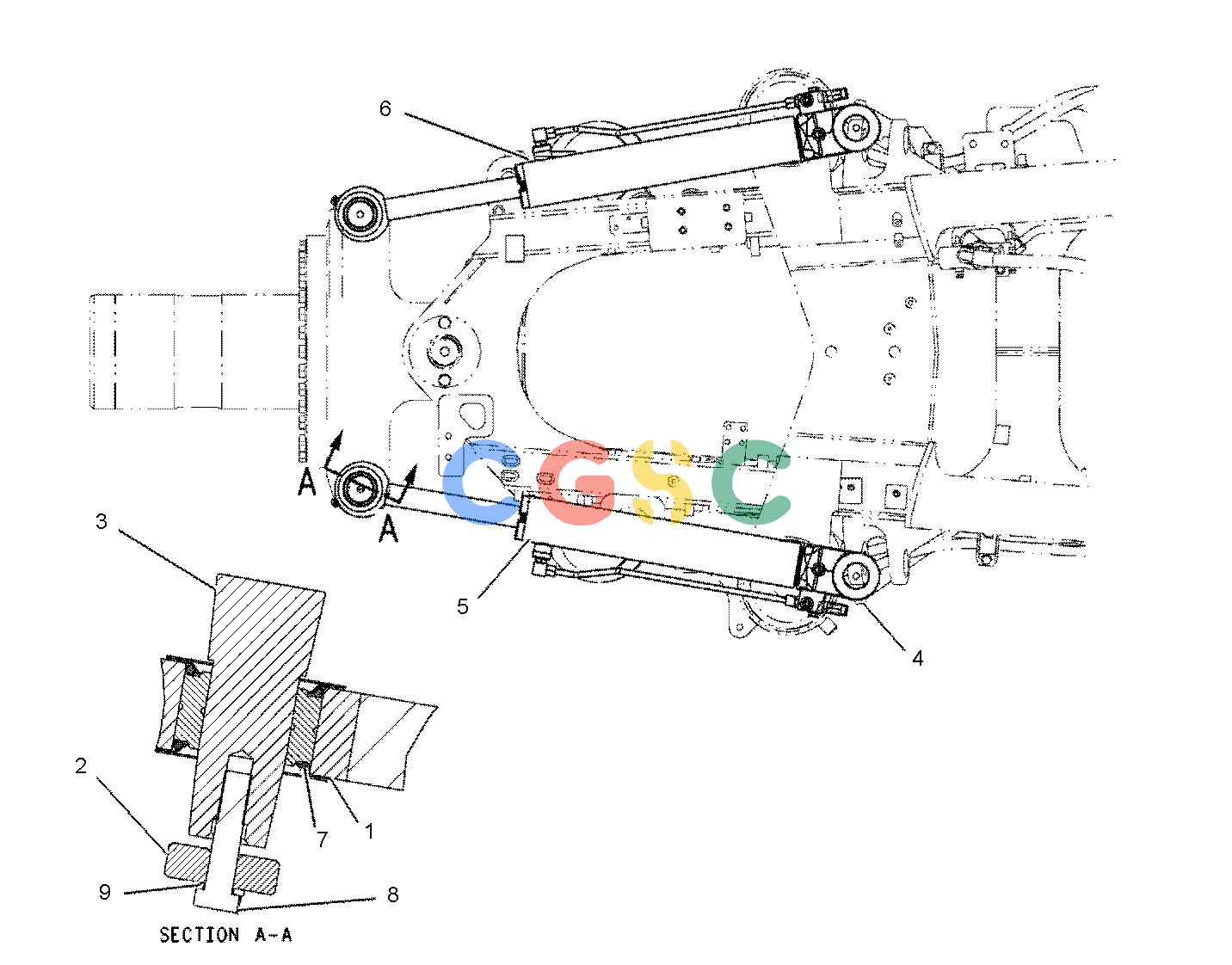

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3U-9657 | [8] | SEAL-FACE | |
| 2. | 7U-0887 | [4] | WASHER(17X65X20-MM THK) | |
| 3. | 174-5578 | [2] | PIN-TAPERED | |
| 4. | 174-9517 | [2] | PIN-TAPERED | |
| 5. | 191-5336Y | [1] | CYLINDER GP-HYDRAULIC(RH) | |
| 6. | 191-5337Y | [1] | CYLINDER GP-HYDRAULIC(LH) | |
| 7. | 7F-2122 | [8] | SEAL-O-RING | |
| 8. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 9. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
