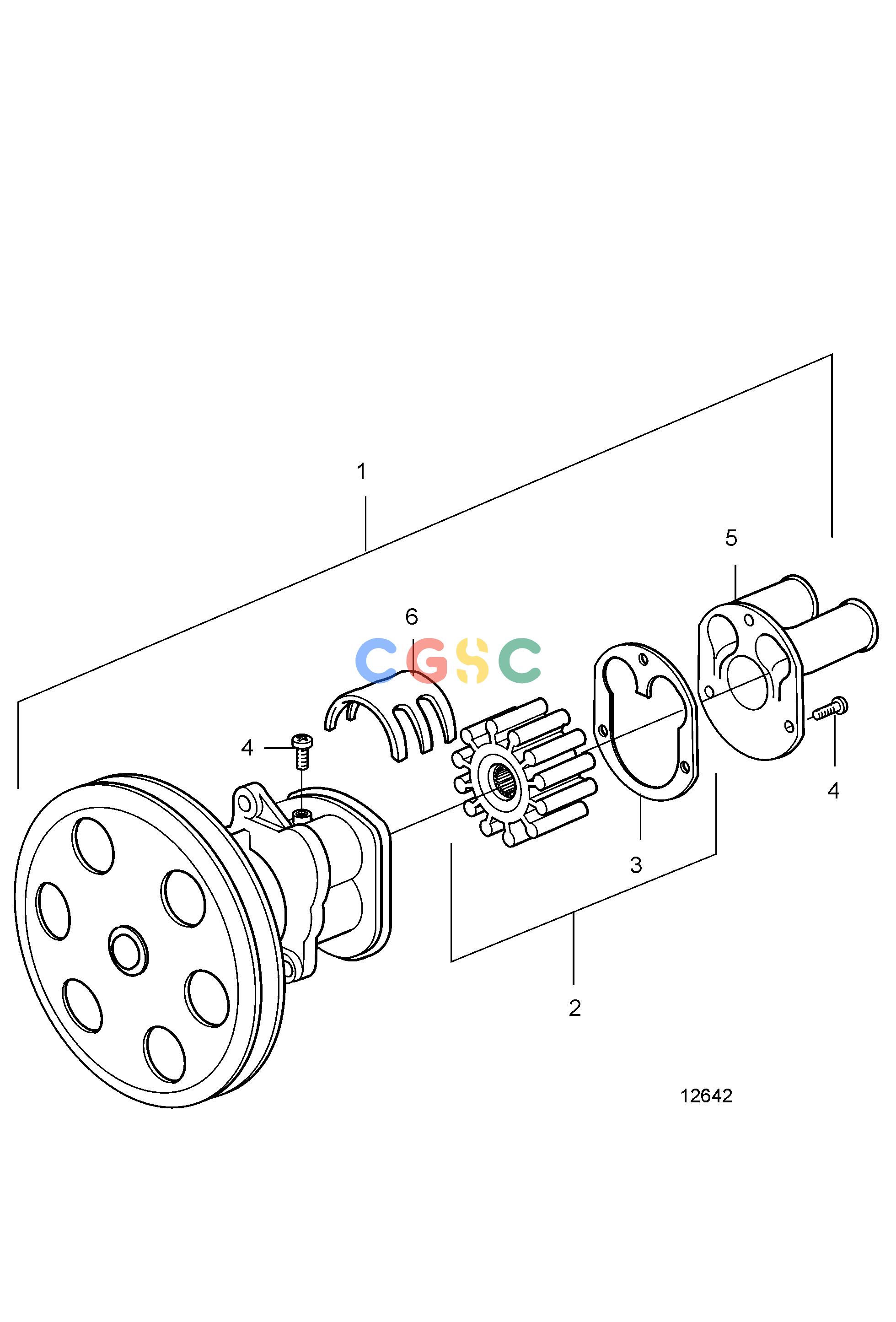

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCECooling SystemSeawater Pump PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857794
|
[1] |
Sea water pump
|
See ''Seawater Pump, New Service Kits'' for parts
|
| 2. |
3850107
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 2. |
3862281
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 2. |
|
|
|
|
| 2. |
21951346
|
[1] |
Impeller kit
|
See ''Seawater Pump, New Service Kits'' for parts
|
| 3. |
3855782
|
[1] |
Gasket, plate to body
|
|
| 4. |
841693
|
[4] |
Screw
|
Replaced by next part number
|
| 4. |
21951334
|
[1] |
Screw kit
|
6 screws
|
| 5. |
3851697
|
[1] |
End cover
|
|
| 6. |
3858086
|
[1] |
Cam, impeller
|
|
