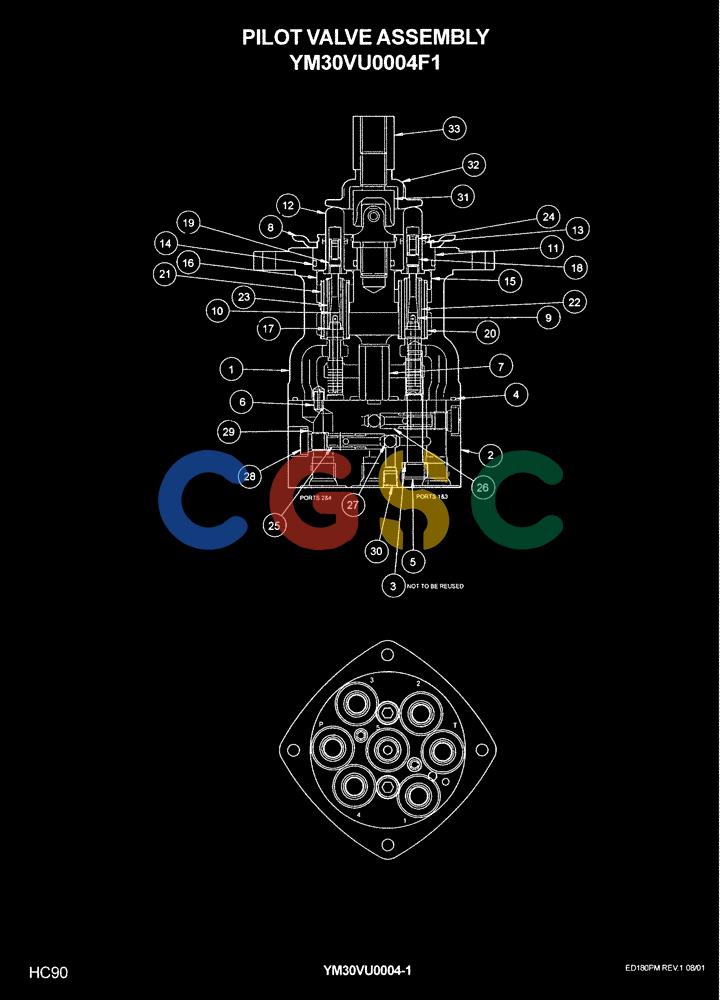

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-043[01]) - PILOT VALVE ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
363 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30VU0004F1 | [1] | PILOT VALVE | KOB |
| 1. | YM30VU0004S001 | [1] | CASING | |
| 2. | YM30VU0004S002 | [1] | PLATE, PORT | |
| 3. | YM30VU0004S003 | [2] | SEALING WASHER | KOBWASHER, SEAL Superseded by part number: 2436U1277S121 |
| 4. | YM30VU0004S004 | [1] | O-RING | KOB Superseded by part number: YT30V00008S122 |
| 5. | YM30VU0004S005 | [2] | SCREW, HEX | |
| 6. | YM30VU0004S006 | [1] | PIN, SPRING | |
| 7. | YM30VU0004S007 | [1] | BUSHING | |
| 8. | YM30VU0004S008 | [1] | PLATE, PORT | |
| 9. | YM30VU0004S009 | [2] | SPOOL | |
| 10. | YM30VU0004S010 | [2] | SPOOL | |
| 11. | YM30VU0004S011 | [4] | PLUG | KOB Superseded by part number: 2436U1277S211 |
| 12. | YM30VU0004S012 | [4] | PUSH ROD | KOB |
| 13. | YM30VU0004S013 | [4] | SEAL | KOB |
| 14. | YM30VU0004S014 | [4] | O-RING | KOB |
| 15. | YM30VU0004S015 | [2] | SEAT, SPRING | |
| 16. | YM30VU0004S016 | [2] | SEAT, SPRING | |
| 17. | YM30VU0004S017 | [4] | WASHER | |
| 18. | YM30VU0004S018 | [2] | SPRING | KOBSEAT, SPRING |
| 19. | YM30VU0004S019 | [2] | SPRING | KOBSEAT, SPRING |
| 20. | YM30VU0004S020 | [2] | SPRING | |
| 21. | YM30VU0004S021 | [2] | SPRING | |
| 22. | YM30VU0004S022 | [2] | SPRING | |
| 23. | YM30VU0004S023 | [2] | SPRING | |
| 24. | YM30VU0004S024 | [4] | SPRING | KOB |
| 25. | YM30VU0004S025 | [2] | SEAT | |
| 26. | YM30VU0004S026 | [1] | SEAT | |
| 27. | YM30VU0004S027 | [3] | BALL, STEEL | |
| 28. | YM30VU0004S028 | [3] | PLUG | |
| 29. | YM30VU0004S029 | [3] | O-RING | KOB |
| 30. | YM30VU0004S030 | [2] | PLUG | |
| 31. | YM30VU0004S031 | [1] | JOINT | |
| 32. | YM30VU0004S032 | [1] | PLATE, CIRCULAR | |
| 33. | YM30VU0004S033 | [1] | NUT, ADJUSTING | |
