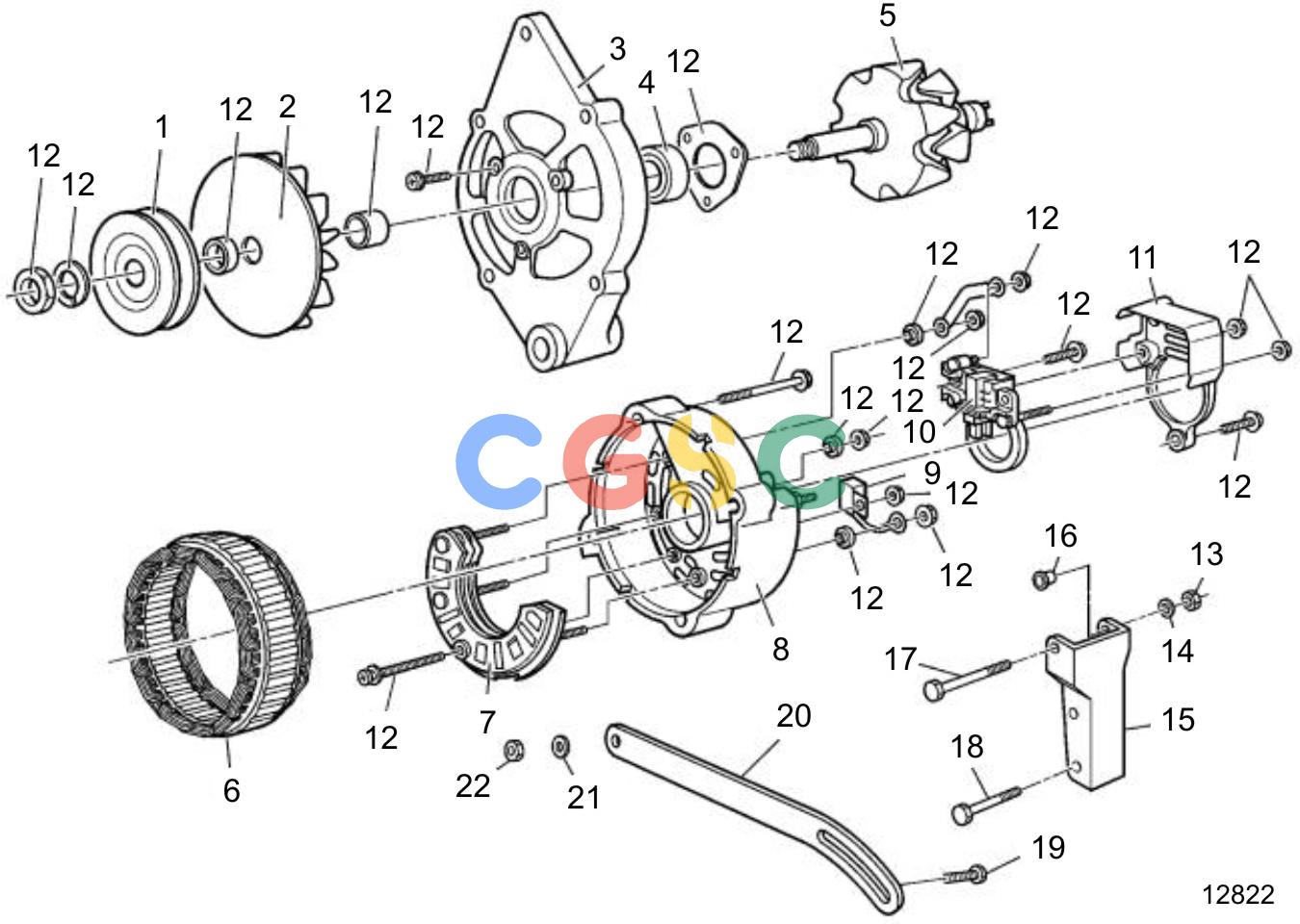

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCEElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857561
|
[1] |
Alternator kit
|
|
| 1. |
3856600
|
[1] |
Alternator
|
|
| 1. |
3857058
|
[1] |
Adapter kit
|
|
| 2. |
3857059
|
[1] |
Fan
|
|
| 3. |
3857060
|
[1] |
Bracket
|
|
| 4. |
3857061
|
[1] |
Bearing
|
|
| 5. |
3857062
|
[1] |
Rotor
|
|
| 6. |
3857063
|
[1] |
Stator
|
|
| 7. |
3857065
|
[1] |
Adapter kit
|
|
| 8. |
3857064
|
[1] |
Bracket
|
|
| 9. |
3857066
|
[1] |
Adapter kit
|
|
| 10. |
3857067
|
[1] |
Governor
|
|
| 11. |
3857068
|
[1] |
Adapter kit
|
|
| 12. |
3857245
|
[1] |
Screw kit
|
|
| 13. |
3852051
|
[1] |
Nut, alternator to bracket
|
|
| 14. |
3852058
|
[1] |
Washer, alternator to bracket
|
Rear
|
| 15. |
3853883
|
[1] |
Bracket, alternator
|
|
| 16. |
3852740
|
[1] |
Bushing
|
|
| 17. |
3853367
|
[1] |
Flange screw, alternator to bracket
|
|
| 18. |
3853547
|
[2] |
Flange screw, alternator bracket to engine
|
|
| 19. |
3853399
|
[1] |
Flange screw, alternator brace to alternator
|
|
| 20. |
3855600
|
[1] |
Tensioner, alternator to water pump
|
|
| 21. |
3852054
|
[1] |
Washer, brace to alternator
|
|
| 22. |
3853403
|
[1] |
Nut retainer, stud, alternator brace to water pump
|
|
