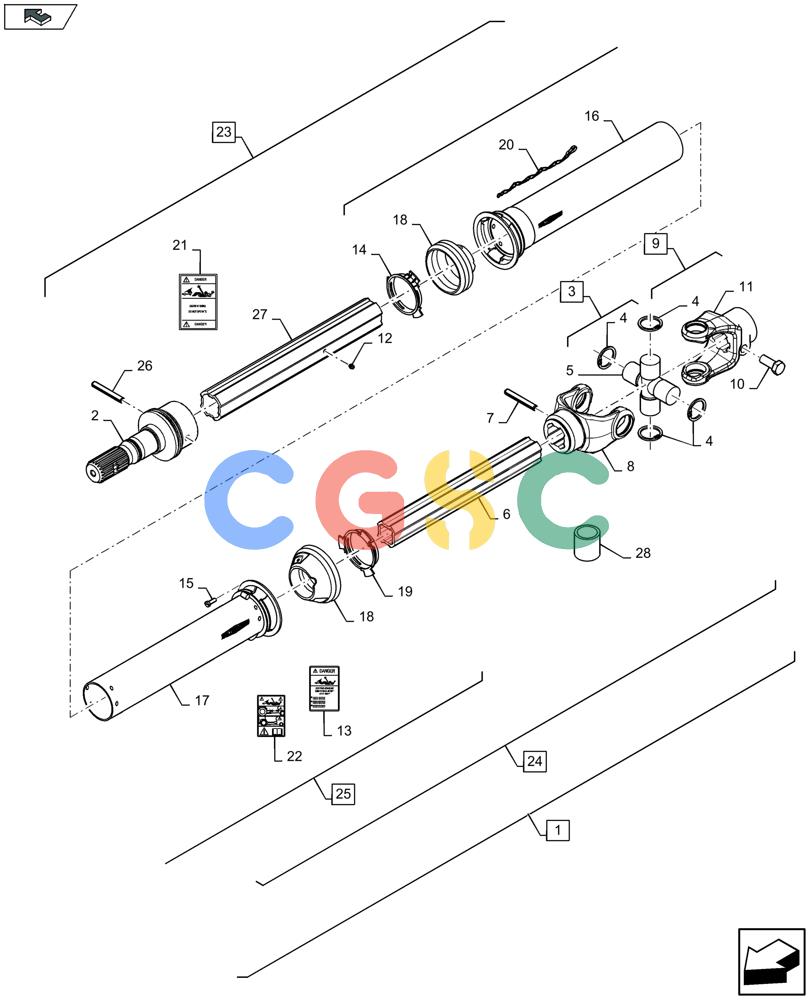

凯斯零件查询(LB334S) - BALER (9/12-) (31.201.051) - POWER TAKE-OFF, REAR - D137 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47695754
|
[1] |
SHAFT
|
ZED
Incl 2 - 28
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Tube Incl in 23
|
| 3. |
47839408
|
[1] |
KIT
|
ZED
Incl 4, 5 Superseded by part number: 47396970
|
| 9. |
47839414
|
[1] |
YOKE
|
ZED
Incl 10, 11 Superseded by part number: 47396971
|
| 10. |
87587210
|
[1] |
KIT
|
ZED
|
| 13. |
84100458
|
[1] |
DECAL
|
ZED
Superseded by part number: 849471
|
| 14. |
87517831
|
[1] |
BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm
|
BEL
|
| 15. |
87587200
|
[6] |
SELF-TAP SCREW
|
ZED
|
| 16. |
47839431
|
[1] |
TUBE
|
ZED
|
| 17. |
47839459
|
[1] |
TUBE
|
ZED
|
| 18. |
87716345
|
[1] |
SHIELD
|
ZED
|
| 19. |
86979196
|
[1] |
BEARING,86mm ID x 132mm OD x 12mm H
|
PA
|
| 20. |
87716347
|
[2] |
CHAIN,400mm L
|
ZED
Superseded by part number: 87685054
|
| 21. |
87716348
|
[1] |
DANGER DECAL
|
ZED
|
| 22. |
84078329
|
[1] |
DECAL
|
ZED
Superseded by part number: 47475712
|
| 23. |
47839475
|
[1] |
DRIVE
|
ZED
Incl 2, 12, 14, 16, 18, 20, 21, 26, 27
|
| 24. |
47839505
|
[1] |
DRIVE
|
ZED
Incl 3 - 11, 13, 17, 19, 22
|
| 25. |
47839508
|
[1] |
KIT
|
ZED
Incl 14 - 20
|
| 28. |
84555361
|
[1] |
PLUG
|
ZED
|
