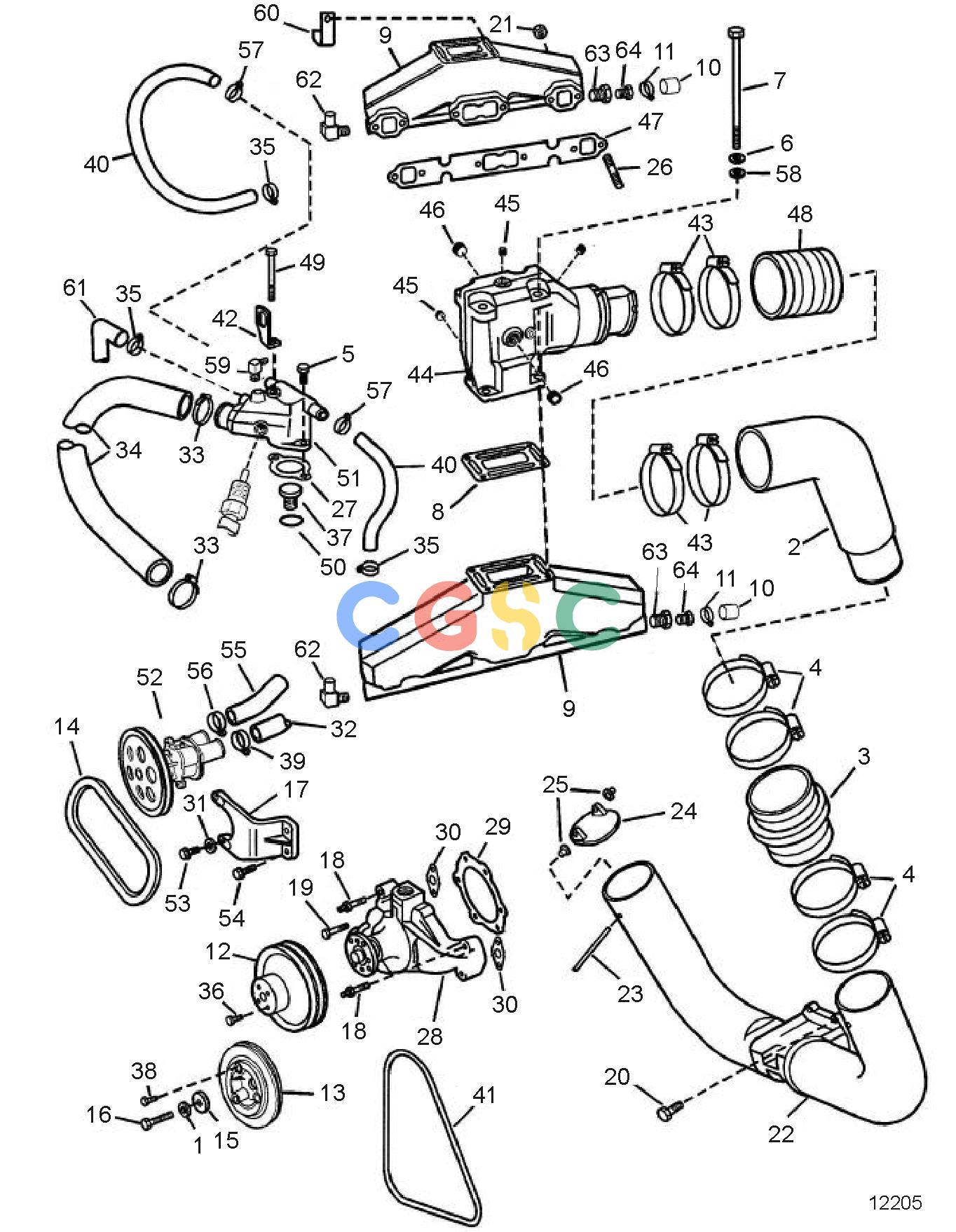

| 1. |
3852046
|
[1] |
Tab washer, harmonic balance
|
|
| 2. |
3852738
|
[1] |
Exhaust pipe
|
Port & stbd; SX, DP-S
|
| 3. |
3852742
|
[2] |
Hose
|
|
| 4. |
3852604
|
[8] |
Hose clamp
|
|
| 5. |
3853401
|
[1] |
Flange screw, thermostat hsg to engine
|
Short
|
| 6. |
3852002
|
[8] |
Tab washer, exhaust elbow to manifold
|
|
| 7. |
3852830
|
[8] |
Screw, exhaust elbow to manifold
|
|
| 8. |
3850496
|
[2] |
Gasket, exhaust elbow to manifold
|
|
| 9. |
3857723
|
[2] |
Exhaust manifold, port & starboard
|
|
| 10. |
3852476
|
[2] |
Cap, exhaust manifold
|
Early
|
| 11. |
3853780
|
[2] |
Hose clamp, hose to exhaust manifold
|
Early
|
| 12. |
3852220
|
[1] |
Pulley, water pump
|
|
| 13. |
3851991
|
[1] |
V-belt pulley, crankshaft
|
|
| 14. |
978457
|
[1] |
V-belt, water pump
|
|
| 15. |
3852110
|
[1] |
Washer, harmonic balance
|
|
| 16. |
949519
|
[1] |
Screw, harmonic balance
|
GS
|
| 17. |
3856865
|
[1] |
Bracket, water pump
|
|
| 18. |
3856147
|
[2] |
Stud, water pump
|
|
| 19. |
3856136
|
[1] |
Bolt, water pump, short
|
|
| 19. |
3856137
|
[1] |
Bolt, water pump, long
|
|
| 20. |
3855472
|
[4] |
Flange screw, exhaust pipe to gimbal hsg
|
|
| 21. |
3853404
|
[12] |
Nut, exhaust manifold to engine
|
|
| 22. |
3855281
|
[1] |
Exhaust pipe kit
|
|
| 23. |
3852753
|
[2] |
Pin, exhaust seal assy to exhaust pipe
|
|
| 24. |
3853864
|
[2] |
Seal, exhaust pipe
|
|
| 25. |
3855517
|
[4] |
Bushing, exhaust seal assy to exhaust pipe
|
|
| 26. |
3857184
|
[12] |
Flange screw, exhaust manifold to engine
|
|
| 27. |
3852111
|
[1] |
Gasket, thermostat hsg to intake manifold
|
|
| 28. |
3853850
|
[1] |
Circulation pump
|
|
| 29. |
3850595
|
[1] |
Gasket, water pump sover
|
|
| 30. |
3852477
|
[2] |
Gasket, water pump
|
|
| 31. |
3852162
|
[2] |
Washer, screw, water pump to bracket
|
|
| 32. |
3850231
|
[1] |
Hose, oil cooler to water pump
|
Gugs
|
| 32. |
3856250
|
[1] |
Hose, oil cooler to water pump
|
Gi/GSi
|
| 33. |
3852098
|
[2] |
Hose clamp, hose, thermostat hsg to water pump
|
|
| 34. |
3856769
|
[1] |
Hose, thermostat hsg to water pump
|
|
| 34. |
3852288
|
[1] |
Hose, thermostat hsg to water pump
|
|
| 35. |
3853780
|
[3] |
Hose clamp, hose to exhaust manifold
|
|
| 36. |
3853390
|
[4] |
Screw, water pump pulley to hub
|
|
| 37. |
3856961
|
[1] |
Thermostat, engine
|
|
| 38. |
3855717
|
[3] |
Screw, pulley to crankshaft
|
|
| 39. |
3850422
|
[1] |
Hose clamp, hose, water pump outlet
|
|
| 40. |
3852746
|
[1] |
Hose, thermostat hsg to manifold
|
Port, early
|
| 40. |
3857843
|
[1] |
Hose, thermostat hsg to manifold
|
Port, late
|
| 40. |
3852488
|
[1] |
Hose, thermostat hsg to manifold
|
Stbd, early
|
| 40. |
3857605
|
[1] |
Hose, thermostat hsg to manifold
|
Stbd, late
|
| 41. |
978547
|
[1] |
V-belt, alternator to pulley
|
|
| 42. |
3852649
|
[1] |
Bracket, center lift
|
|
| 43. |
3853860
|
[8] |
Hose clamp, hose, exhaust elbow
|
|
| 44. |
3857944
|
[2] |
Elbow
|
|
| 45. |
3850740
|
[2] |
Plug, exhaust elbow
|
|
| 46. |
3850999
|
[2] |
Plug, exhaust elbow
|
|
| 47. |
3852468
|
[1] |
Gasket, manifold to engine
|
|
| 48. |
3852696
|
[2] |
Hose, exhaust elbow to exhaust pipe
|
Upper
|
| 49. |
3853391
|
[1] |
Flange screw, lift bracket & thermostat hsg
|
|
| 50. |
3852071
|
[1] |
O-ring, thermostat
|
|
| 51. |
3850360
|
[1] |
Housing
|
|
| 52. |
3857794
|
[1] |
Sea water pump
|
|
| 53. |
3853155
|
[2] |
Flange screw, water pump to bracket
|
|
| 54. |
3853326
|
[2] |
Flange screw, lift bracket, fuel pump & relay assy
|
|
| 55. |
3856769
|
[1] |
Hose, water pump to thermostat hsg
|
|
| 56. |
3852602
|
[1] |
Hose clamp, hose, water pump outlet
|
GL, GS
|
| 56. |
3853786
|
[1] |
Hose clamp, hose, water pump outlet
|
Gi, GSi
|
| 57. |
3853780
|
[2] |
Hose clamp, hose to thermostat hsg
|
|
| 58. |
3852058
|
[8] |
Washer, exhaust elbow to manifold
|
|
| 59. |
3853598
|
[2] |
Elbow, thermostat hsg
|
|
| 60. |
857045
|
[1] |
Attaching clamp, water hose, cooler to thermostat
|
|
| 61. |
3850363
|
[1] |
Hose, cooler to thermostat
|
|
| 62. |
3852538
|
[2] |
Elbow, hose to manifold
|
Late
|
| 63. |
3858291
|
[2] |
Reduction sleeve, drain
|
Late
|
| 64. |
3850802
|
[2] |
Plug, drain
|
Late
|
