| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

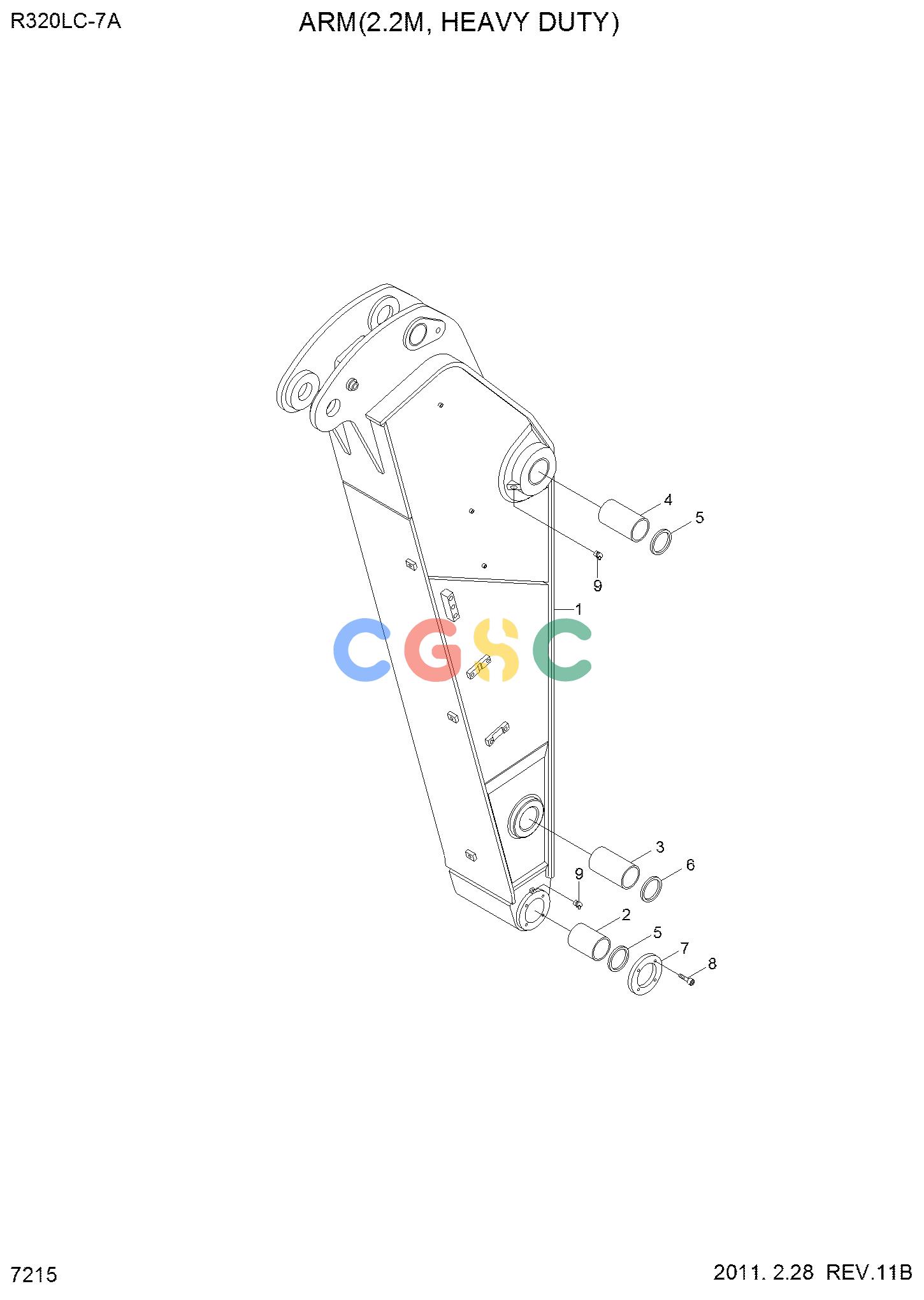

| . | 64N9-20200 | [1] | ARM ASSY | |
| 1. | 64N9-22010 | [1] | ARM WA | |
| 1. | 64N9-22011 | [1] | ARM WA | |
| 2. | 61Q6-04130 | [2] | BUSHING | |
| 2. | 61QH-89160 | [2] | BUSHING | |
| 3. | 61Q6-04070 | [2] | BUSHING | |
| 4. | 61EN-12310 | [2] | BUSHING-BRONZE | |
| 5. | S700-100208 | [4] | DUST SEAL-DKIY TYPE | |
| 6. | S700-090206 | [2] | DUST SEAL-DKIY TYPE | |
| 7. | 61Q9-21301 | [2] | COVER PLATE | |
| 8. | S109-120256 | [8] | BOLT-SOCKET | |
| 9. | S651-810002 | [2] | NIPPLE-GREASE |
