纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.040[00]) - VALVE ASSEMBLY, PILOT (PROPELLING) (YN30V00105F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
359 次

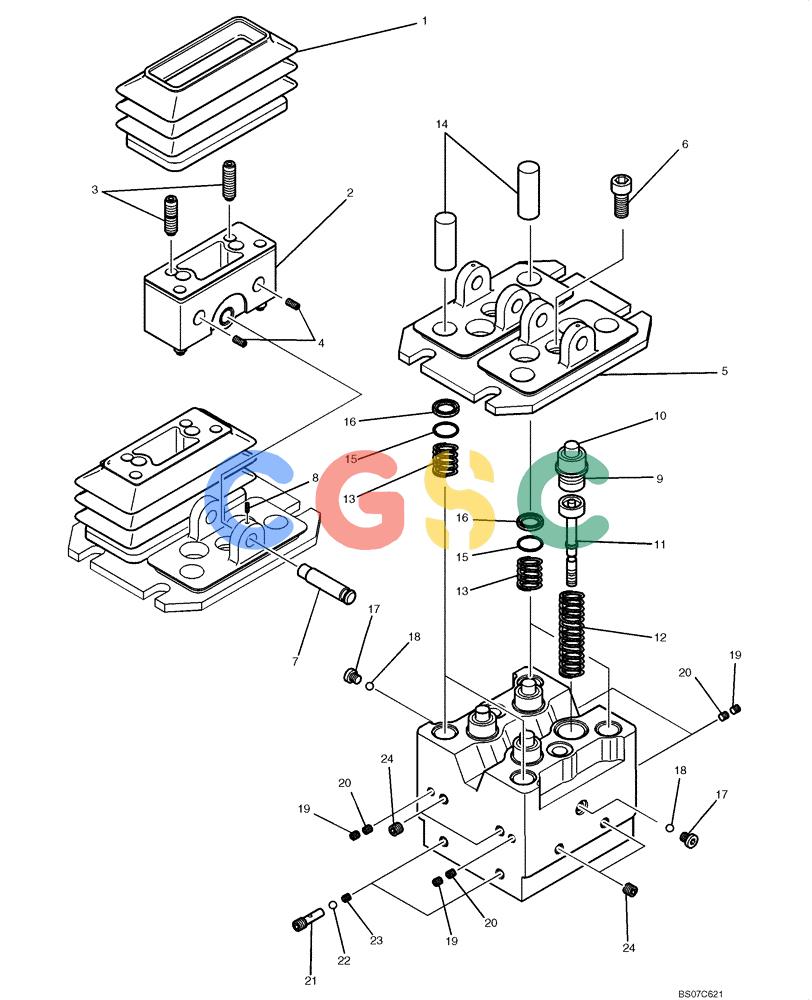

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00105F1 | [1] | VALVE | KOBPilot, Propelling Superseded by part number: YN30V00105F2 |
| 1. | YN30V00105S005 | [2] | COVER | SM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CONPlate |
| 11. | YN30V00105S010 | [4] | ROD | SMSpool |
| K. | YN30V00105R100 | [1] | KIT | SMRepair -- Contains Items 2X1, 3X2 & 4X2 |
| K. | YN30V00105R110 | [1] | KIT | SMRepair -- Contains Items 5X1, 6X2, 7X2 & 8X2 |
| K. | YN30V00105R120 | [1] | KIT | SMRepair -- Contains Items 9X4 & 10X4 |
| K. | YN30V00105R130 | [1] | KIT | SMRepair -- Contains Items 12X4 |
| K. | YN30V00105R140 | [1] | KIT | SMRepair -- Contains Items 13X4 |
| K. | YN30V00105R150 | [1] | KIT | SMRepair -- Contains Items 14X4, 15X6 & 16X6 |
| K. | YN30V00105R160 | [1] | KIT | SMRepair -- Contains Items 17X2 & 18X2 |
| K. | YN30V00105R170 | [1] | KIT | SMRepair -- Contains Items 19X4 & 20X4 |
| K. | YN30V00105R180 | [1] | KIT | SMRepair -- Contains Items 21X3, 22X3 & 23X3 |
