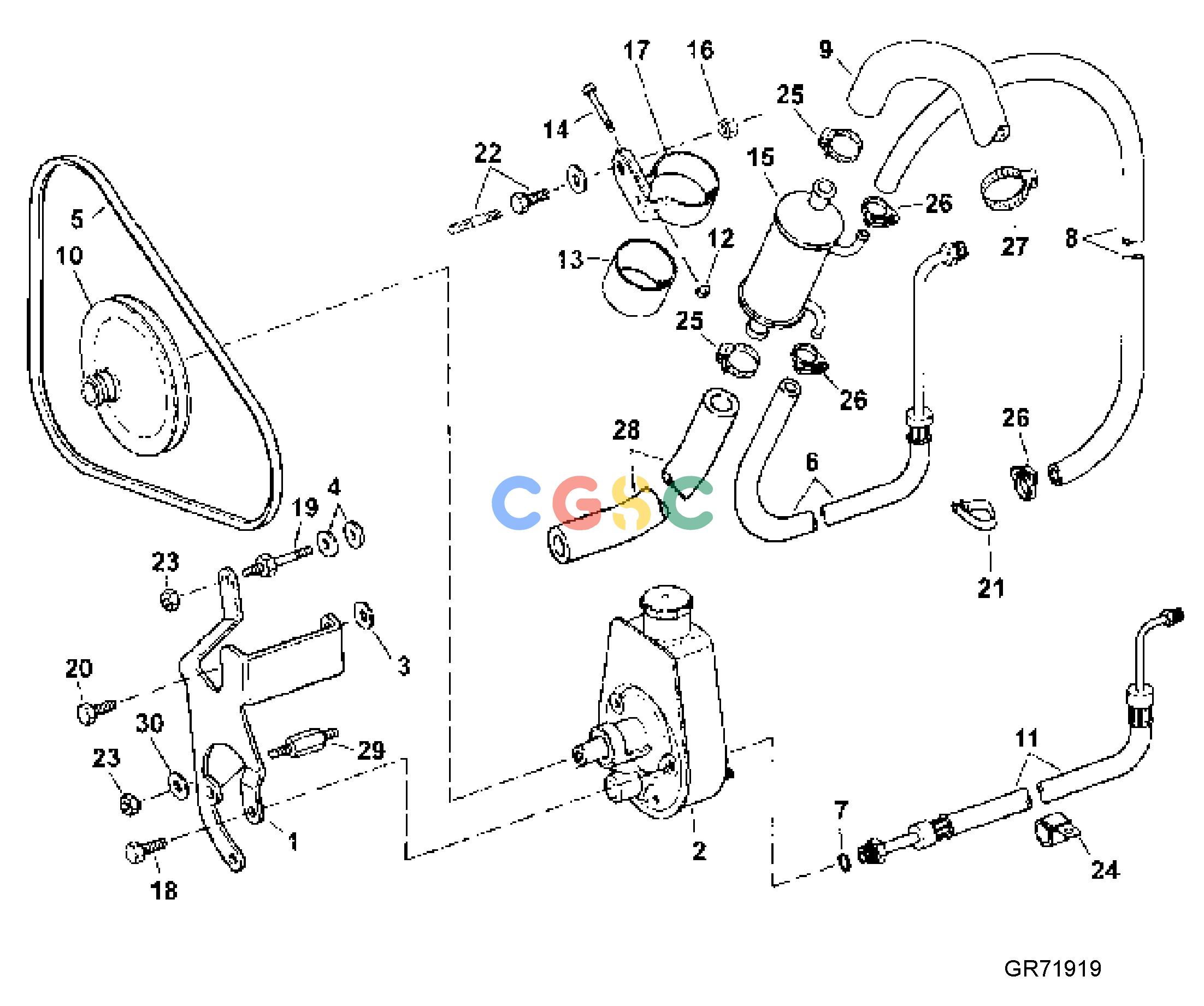

| 1. |
3856871
|
[1] |
Bracket, P/S pump to engine
|
|
| 2. |
3850491
|
[1] |
Steering pump
|
|
| 3. |
3852162
|
[1] |
Washer, P/S pump bracket to cylinder head
|
|
| 4. |
3852162
|
[2] |
Washer, stud, water/steering pump to engine
|
|
| 5. |
3852464
|
[1] |
V-belt, P/S pump
|
|
| 6. |
3854056
|
[1] |
Hose, cylinder to oil cooler
|
GL/GS
|
| 6. |
3854168
|
[1] |
Hose assembly, cylinder to oil cooler
|
Gi/GSi
|
| 7. |
3852497
|
[1] |
O-ring, pressure hose to steering pump
|
|
| 8. |
3852839
|
[1] |
Hose, oil cooler to steering pump
|
Return
|
| 9. |
3852281
|
[1] |
Hose, gimbal to cooler
|
GL/GS
|
| 9. |
3856251
|
[1] |
Hose, gimbal to cooler
|
Gi/GSi
|
| 10. |
3853804
|
[1] |
Pulley, P/S pump
|
|
| 11. |
3853918
|
[1] |
Hose, P/S pump to pressure valve
|
GL/GS
|
| 11. |
3853967
|
[1] |
Hose assembly, P/S pump to pressure valve
|
Gi/GSi
|
| 12. |
3852079
|
[1] |
Nut, oil cooler & bracket assy
|
|
| 13. |
3853236
|
[1] |
Spacer, oil cooler
|
|
| 14. |
3852126
|
[1] |
Screw, oil cooler & bracket assy
|
|
| 15. |
3851921
|
[1] |
Oil cooler
|
|
| 16. |
3852065
|
[1] |
Nut, oil cooler assy to flywheel hsg
|
GL/GS
|
| 16. |
3852177
|
[1] |
Nut, P/S cooler clamp to reservoir
|
Gi/GSi
|
| 17. |
3852218
|
[1] |
Clamp, engine oil cooler, power steering
|
GL/GS
|
| 18. |
3853405
|
[3] |
Screw, steering pump bracket
|
|
| 19. |
3852507
|
[1] |
Stud, bracket to water pump
|
|
| 20. |
3853557
|
[1] |
Flange screw, bracket to cylinder head
|
|
| 21. |
3852837
|
[1] |
Clamp, P/S hoses to head
|
Port, rear
|
| 22. |
3853326
|
[1] |
Flange screw, cooler to flywheel hsg
|
GL/GS
|
| 22. |
3852093
|
[1] |
Stud, clamp, P/S cooler
|
Gi/GSi
|
| 23. |
3853403
|
[2] |
Nut retainer, stud, P/S pump bracket
|
|
| 24. |
3852490
|
[1] |
Attaching clamp, hoses to front mount
|
|
| 25. |
3853786
|
[2] |
Hose clamp, hose, oil cooler, water
|
|
| 26. |
3852196
|
[2] |
Hose clamp, hose, P/S pump to oil cooler
|
Return
|
| 27. |
3853786
|
[1] |
Hose clamp, hose, water to gimbal hsg
|
|
| 28. |
3858238
|
[1] |
Hose, cooler to pump
|
GL/GS
|
| 28. |
3858239
|
[1] |
Hose, cooler to pump
|
Gi/GSi
|
| 29. |
3856973
|
[1] |
Stud, P/S pump bracket to engine
|
|
| 30. |
3852054
|
[1] |
Washer, bracket to stud
|
|
